GENERATOR

ZX750F4 NINJA 750R 1990 USA CALIFORNIA

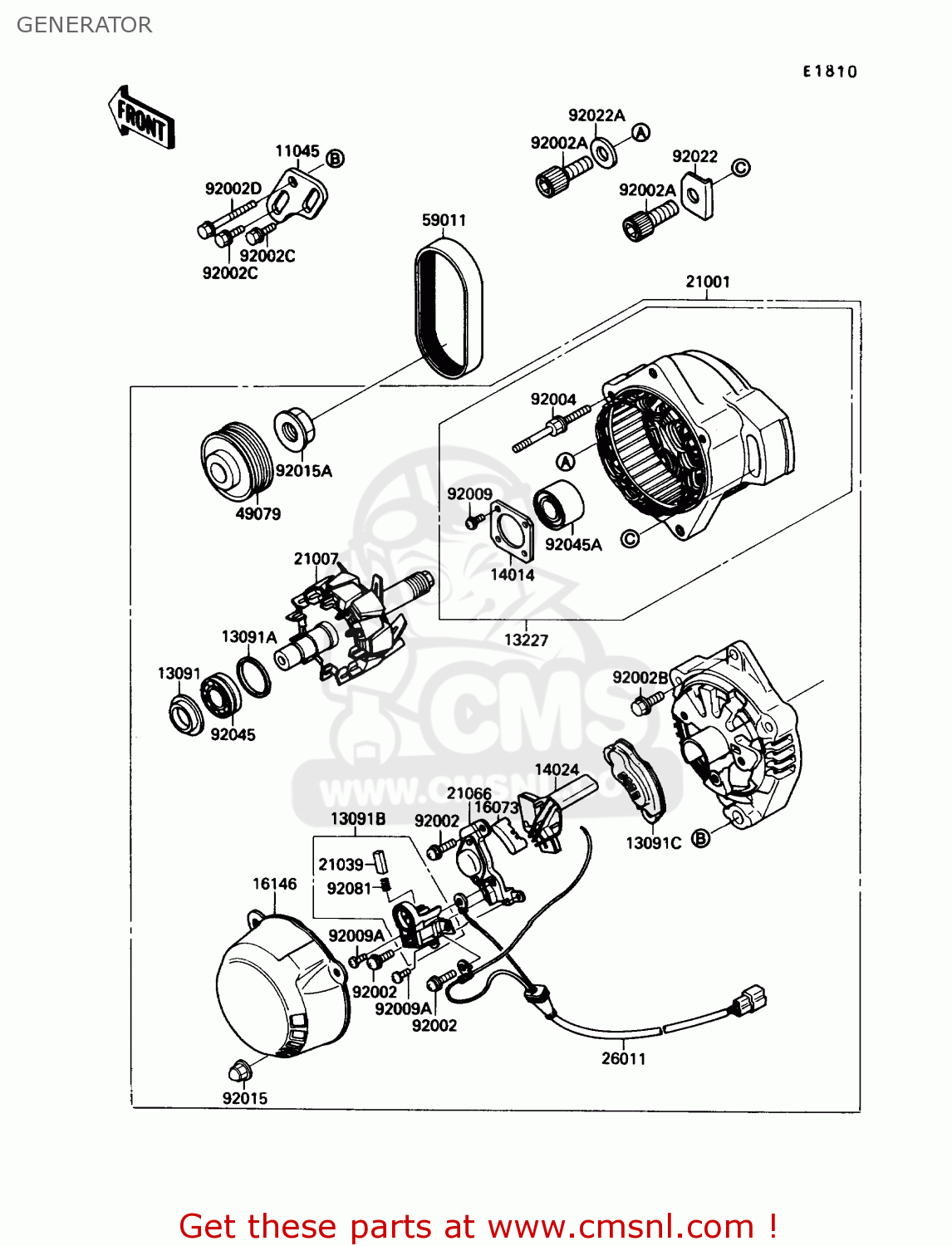

Generator スキーマ ZX750F4 NINJA 750R 1990 USA CALIFORNIA

GENERATOR ZX750F4 NINJA 750R 1990 USA CALIFORNIA
GENERATOR ZX750F4 NINJA 750R 1990 USA CALIFORNIA
価格は EUR 単位です
参照
パーツ番号
説明
量
11045
110451166
参照: 11045
BRACKET,GENERATOR
110451166
€ 6.50
13091
130911327
参照: 13091
HOLDER,COVER
130911327
€ 12.50
13091A
130911328
参照: 13091A
HOLDER,BEARING
130911328
€ 9.00
13091B
130911465
参照: 13091B
HOLDER,BRUSH
130911465
€ 79.50
13091C
130911466
参照: 13091C
RECTIFIER
130911466
€ 402.50
13227
132271067
参照: 13227
HOUSING,GENERATOR
132271067
€ 529.00
14014
140141085
参照: 14014
PLATE-POSITION
140141085
€ 11.50
14024
140251942
参照: 14024
COVER,RECTIFIER
140251942
€ 7.00
16073
160731062
参照: 16073
INSULATOR
€ 13.50
16146
161461076
参照: 16146
COVER-ASSY,GENERATOR
161461076
€ 114.50
21001
210011077
参照: 21001
GENERATOR
€ 907.50
21007
210071158
参照: 21007
ROTOR,GENERATOR
210071158
€ 242.00
21039
210391052
参照: 21039
BRUSH,CARBON
210391052
€ 17.50
21066
210661056
参照: 21066
REGULATOR-VOLTAGE
210661056
€ 298.00
26011
260111393
参照: 26011
WIRE-LEAD
260111393
€ 96.00
49079
490791052
参照: 49079
PULLEY-BELT
€ 77.00
59011
590111052
参照: 59011
BELT,GENERATOR
590111052
€ 31.00
92002
920021380
参照: 92002
BOLT
920021380
€ 3.00
92002A
920021854
参照: 92002A
BOLT,SOCKET,10X45
920021854
€ 3.00
92002B
920021919
参照: 92002B
BOLT
€ 5.00
92002C
920021933
参照: 92002C
BOLT
920021933
€ 3.00
92002D
920021934
参照: 92002D
BOLT
€ 4.50
92004
920041196
参照: 92004
STUD
€ 16.50
92009
920091462
参照: 92009
SCREW
€ 2.50
92009A
920091585
参照: 92009A
SCREW
920091585
€ 2.50
92015
920151650
参照: 92015
NUT,PULLEY LOCK
€ 5.00
92015A
920151800
参照: 92015A
NUT
€ 1.50
92022
920221819
参照: 92022
WASHER
920221819
€ 3.00
92022A
920221820
参照: 92022A
WASHER,10.5X19X3.2
€ 2.50
92045
920451133
参照: 92045
BEARING-BALL,#6002NC
920451133
€ 52.50
92045A
920451195
参照: 92045A
BEARING-BALL
920451195
€ 44.50
92081
920811759
参照: 92081
SPRING,BRUSH
920811759
€ 4.50
