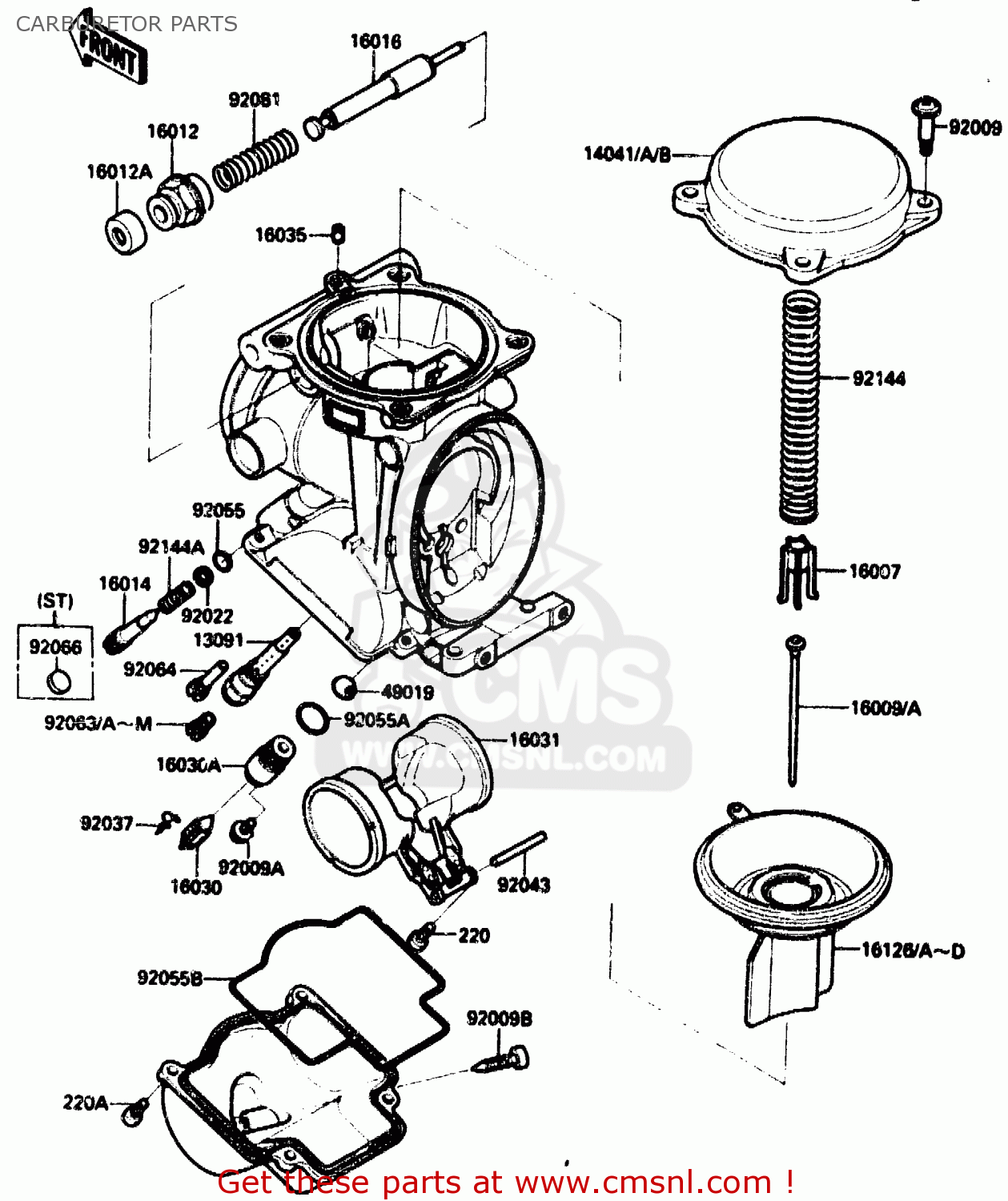

CARBURETOR PARTS

参照

パーツ番号

説明

量

13091

130911579
参照: 13091

HOLDER,NEEDLE JET

€ 14.50

14041

140411091
参照: 14041
EU, FR, GR, IT, NR,

CAP-CHAMBER,MIXING

€ 42.50

14041A

140411092
参照: 14041A
AR, SD, WG

CAP-CHAMBER,MIXING

€ 35.00

14041B

140411093
参照: 14041B
UK

CAP-CHAMBER,MIXING

€ 32.00

16007

160071117
参照: 16007

SEAT-SPRING,THROTTLE

€ 15.50

16009

160091477
参照: 16009
AR, EU, FR, GR, IT,

NEEDLE-JET,N14C

€ 18.00

16009A

160091496
参照: 16009A
UK

NEEDLE-JET,N54D

€ 19.50

16012

160121051
参照: 16012

CAP-STARTER PLUNGER

€ 6.50

16012A

160121052
参照: 16012A

CAP-STARTER PLUNGER

€ 9.00

16014

160141064
参照: 16014

SCREW-PILOT AIR

€ 16.00

16016

160161061
参照: 16016

PLUNGER,STARTER

€ 28.50

16030

160301007
参照: 16030

FLOAT VALVE ASSY

€ 34.00

16030A

160301068
参照: 16030A

SEAT-VALVE,FLOAT

€ 39.50

16031

160311070
参照: 16031

FLOAT

€ 37.50

16035

160351055
参照: 16035

JET-AIR,LEAK

€ 9.50

16126

161261214
参照: 16126
EU, FR, GR, IT, NR,

VALVE,VACUUM

€ 143.50

16126A

161261215
参照: 16126A
ST

VALVE,VACUUM

€ 83.50

16126B

161261216
参照: 16126B
AR

VALVE,VACUUM

€ 105.50

16126C

161261217
参照: 16126C
SD, WG

VALVE,VACUUM

€ 116.00

49019

490193707
参照: 49019

FILTER-FUEL,STRAINER

€ 7.00

92009

920091549
参照: 92009

SCREW,4X4.4

€ 3.00

92009A

920091550
参照: 92009A

SCREW,4X8

€ 2.50

92009B

920091551
参照: 92009B

SCREW,DRAIN

€ 6.00

92022

920221003
参照: 92022

WASHER,PLAIN

€ 2.50

92037

16044007
参照: 92037

CLIP, FLOAT VALVE

€ 3.50

92043

920431207
参照: 92043

PIN,FLOAT

€ 5.50

92055

920551002
参照: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551425
参照: 92055A

RING-O,VALVE SEAT

€ 4.00

92055B

920551426
参照: 92055B

RING-O,FLOAT CHAMBER

€ 12.00

92063

920631013
参照: 92063
FR (RACING USE ONLY)

MAIN JET,#140

€ 8.50

92063A

920631014
参照: 92063A
FR

MAIN JET,#135

€ 9.00

92063B

920631014
参照: 92063B
AR, EU, GR, IT, NR,

MAIN JET,#135

€ 9.00

92063C

920631015
参照: 92063C
FR (RACING USE ONLY)

MAIN JET,#138

€ 9.00

92063D

920631069
参照: 92063D
AR, EU, GR, IT, NR,

MAIN JET,2ND #125

€ 9.00

92063H

920631074
参照: 92063H
AR, EU, GR, IT, NR,

MAIN JET,2ND #128

€ 9.00

92063I

920631075
参照: 92063I
AR, EU, GR, IT, NR,

MAIN JET,2ND #130

€ 9.00

92063J

920631075
参照: 92063J
FR (RACING USE ONLY)

MAIN JET,2ND #130

€ 9.00

92064

920641119
参照: 92064

JET-PILOT,#38

€ 11.00

92066

920661051
参照: 92066
ST

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811761
参照: 92081

SPRING,STARTER PLUNGE

€ 6.00

92144

921441219
参照: 92144

SPRING,VACUUM VALVE

€ 11.50

92144A

921441349
参照: 92144A

SPRING,PILOT AIR SCRE

€ 5.50

220

220D0408
参照: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0410
参照: 220A
UK

SCREW-PAN-CROS

€ 2.00

220A

220D0410
参照: 220A
AR, EU, FR, GR, IT,

SCREW-PAN-CROS

€ 2.00

すべてのアセンブリ
