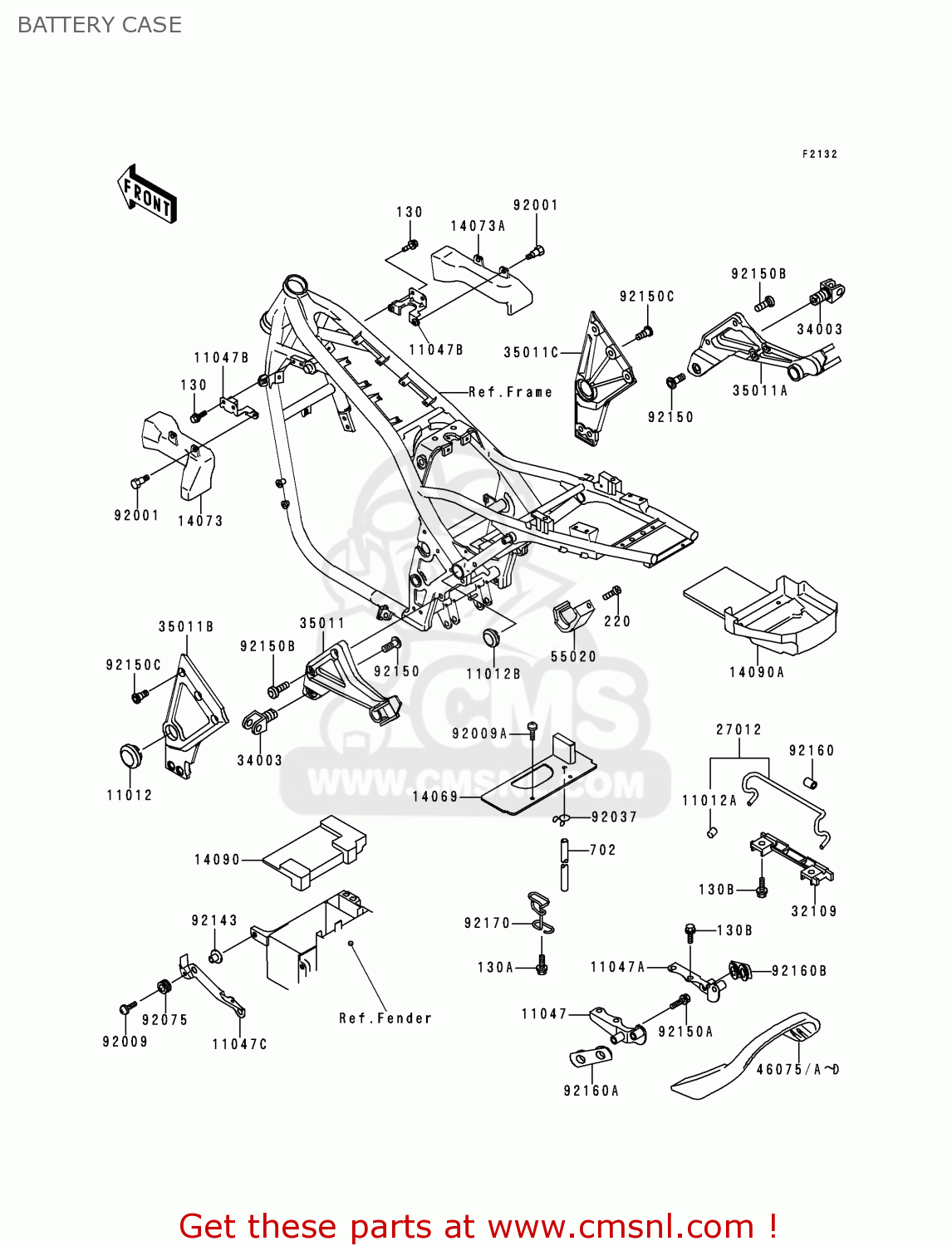

BATTERY CASE

ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

Battery case スキーマ ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST

BATTERY CASE ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST
BATTERY CASE ZR1100A4 ZEPHYR 1100 1995 EUROPE UK FR AR FG GR ST
価格は EUR 単位です
参照
パーツ番号
説明
量
11012
110121459
参照: 11012
CAP,SWING ARM BRACKET
110121459
€ 6.50
11012A
110121589
参照: 11012A
CAP,BUNGEE CORD HOOK
110121589
€ 5.00
11012B
110121717EZ
参照: 11012B
CAP,CROSS PIPE,C.GRAY
110121717EZ
€ 5.00
11047
110471604
参照: 11047
BRACKET,GRABRAIL,LH
110471604
€ 13.00
11047A
110471605
参照: 11047A
BRACKET,GRABRAIL,RH
€ 15.00
11047B
110471625
参照: 11047B
BRACKET,DUCT
€ 12.00
11047C
110471735
参照: 11047C
BRACKET,IGNITER
110471735
€ 19.00
14069
140691061
参照: 14069
BREATHER
140691061
€ 15.50
14073
140731528
参照: 14073
DUCT,LH
140731528
€ 66.50
14073A
140731529
参照: 14073A
DUCT,RH
140731529
€ 53.00
14090
140901170
参照: 14090
COVER,BATTERY
140901170
€ 11.50
14090A
140901181
参照: 14090A
COVER,REAR FENDER,UPP
€ 74.50
27012
270121459
参照: 27012
HOOK,BUNGEE CORD
270121459
€ 13.00
32109
321091219
参照: 32109
GRIP-FRAME
321091219
€ 64.00
34003
340031327
参照: 34003
HOLDER-STEP,FR,RH
340031327
€ 21.00
35011
350111602EZ
参照: 35011
STAY,MUFFLER,LH,C.GRA
350111602EZ
€ 158.50
35011A
350111603EZ
参照: 35011A
STAY,MUFFLER,RH,C.GRA
€ 158.50
35011B
350111604EZ
参照: 35011B
STAY,SWING ARM PANEL,
350111604EZ
€ 172.00
35011C
350111605EZ
参照: 35011C
STAY,SWING ARM PANEL,
350111605EZ
€ 172.00
46075B
460751098VG
参照: 46075B
EUFGFRGRSPSTUK
GRIP,GRABRAIL,P.BOULO
€ 202.00
46075D
46075109820
参照: 46075D
AREUFGFRGRUK
GRIP,GRABRAIL,P.P.BLA
€ 224.50
55020
550201422
参照: 55020
GUARD,CHAIN
€ 11.00
92001
920011955
参照: 92001
BOLT,SIDE STAND LEVER
920011955
€ 5.50
92009
920091181
参照: 92009
SCREW,6X18
920091181
€ 1.50
92009A
920091288
参照: 92009A
SCREW,6X14
920091288
€ 1.50
92037
92037147
参照: 92037
CLAMP,CHAIN OILER
92037147
€ 4.00
92075
920751947
参照: 92075
DAMPER
920751947
€ 4.50
92143
921431057
参照: 92143
COLLAR
921431057
€ 3.00
92150
921501268
参照: 92150
BOLT,10X25
921501268
€ 4.00
92150A
921501603
参照: 92150A
BOLT,FLANGED,8X30
€ 4.50
130
130G0610
参照: 130
BOLT-FLANGED,6X10
130G0610
€ 0.50
130A
130J0610
参照: 130A
BOLT-FLANGED
130J0610
€ 1.50
130B
130J0814
参照: 130B
BOLT-FLANGED,8X14
€ 2.00
220
220C0510
参照: 220
SCREW-PAN-CROS
220C0510
€ 2.00
702
702A07280
参照: 702
TUBE,RUBBER
€ 9.00
92150B
921501747
参照: 92150B
BOLT
921501747
€ 5.00
92150C
921501760
参照: 92150C
BOLT,SOCKET,8X20
921501760
€ 4.00
92160
921601074
参照: 92160
DAMPER,4.5X11X20
€ 4.50
92160A
921601341
参照: 92160A
DAMPER,GRABRAIL,LH
€ 6.50
92160B
921601342
参照: 92160B
DAMPER,GRABRAIL,RH
921601342
€ 6.50
92170
921701320
参照: 92170
CLAMP,HOSE
921701320
€ 8.50
