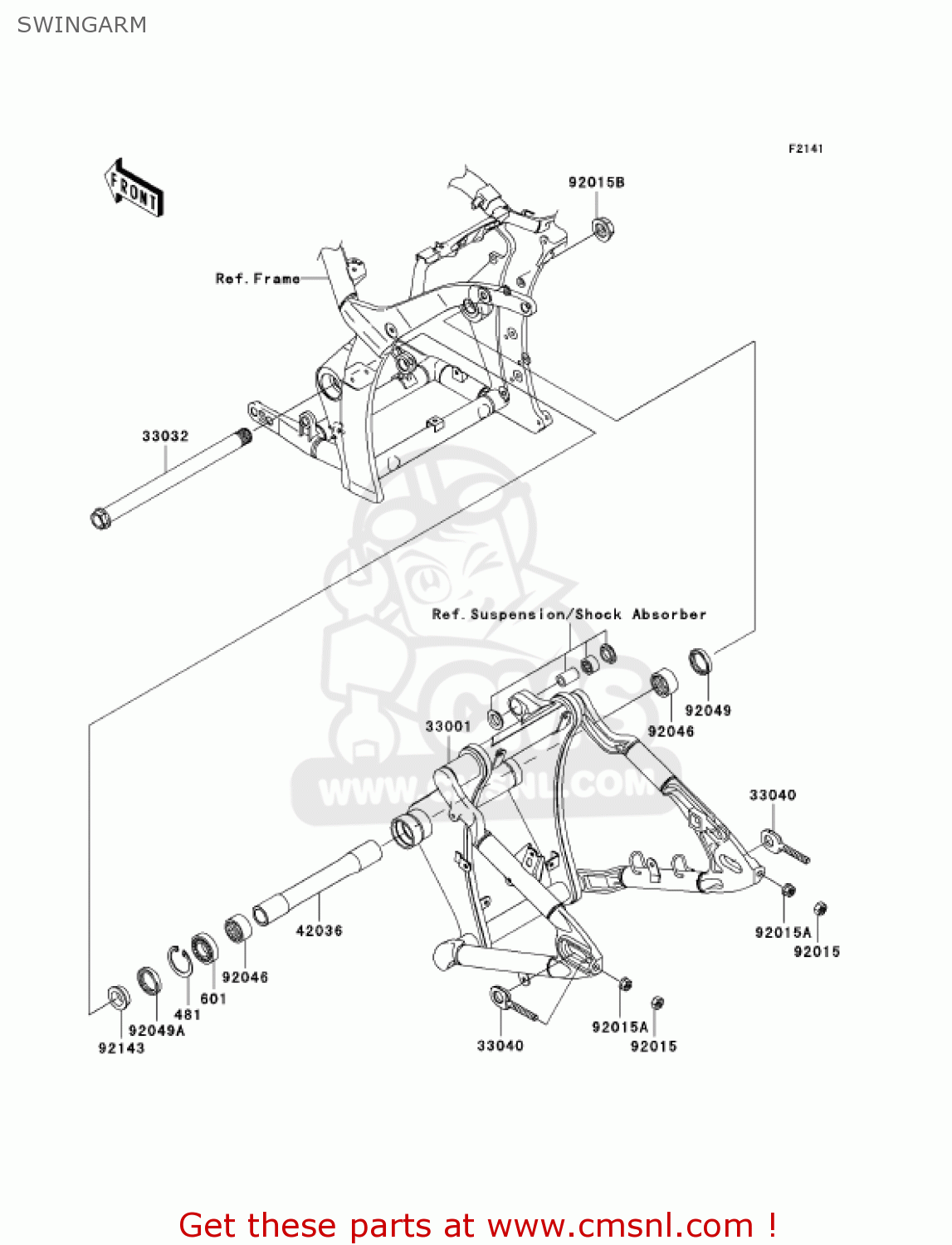

SWINGARM

VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA

Swingarm スキーマ VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA

価格は EUR 単位です

参照

パーツ番号

説明

量

481

481J4700
参照: 481

CIRCLIP,47MM

€ 3.50

601

601B6005UU
参照: 601

BEARING-BALL,#6005UU

€ 24.00

33001

330010032
参照: 33001

ARM-COMP-SWING

€ 985.50

33032

330320004
参照: 33032

SHAFT-SWING ARM

€ 65.50

33040

330400005
参照: 33040

ADJUSTER-CHAIN

€ 28.00

42036

420360007
参照: 42036

SLEEVE,SWING ARM,L=26

€ 75.50

92015

920151494
参照: 92015

NUT,LOCK,10MM

€ 3.50

92015A

920151727
参照: 92015A

NUT

€ 2.50

92015B

920151845
参照: 92015B

NUT,FLANGED,25MM

€ 15.00

92046

920461205
参照: 92046

BEARING-NEEDLE,BM3520

€ 26.50

92049

920490017
参照: 92049

SEAL-OIL,KC35X45X6

€ 9.50

92049A

920491381
参照: 92049A

SEAL-OIL,MHA 35 47 5

€ 8.00

92143

921431481
参照: 92143

COLLAR,SWING ARM,L=12

€ 18.50
