CABLES

VN1500D2A VN1500 CLASSIC 1997 EUROPE FR NL AR FG GR NR SD ST

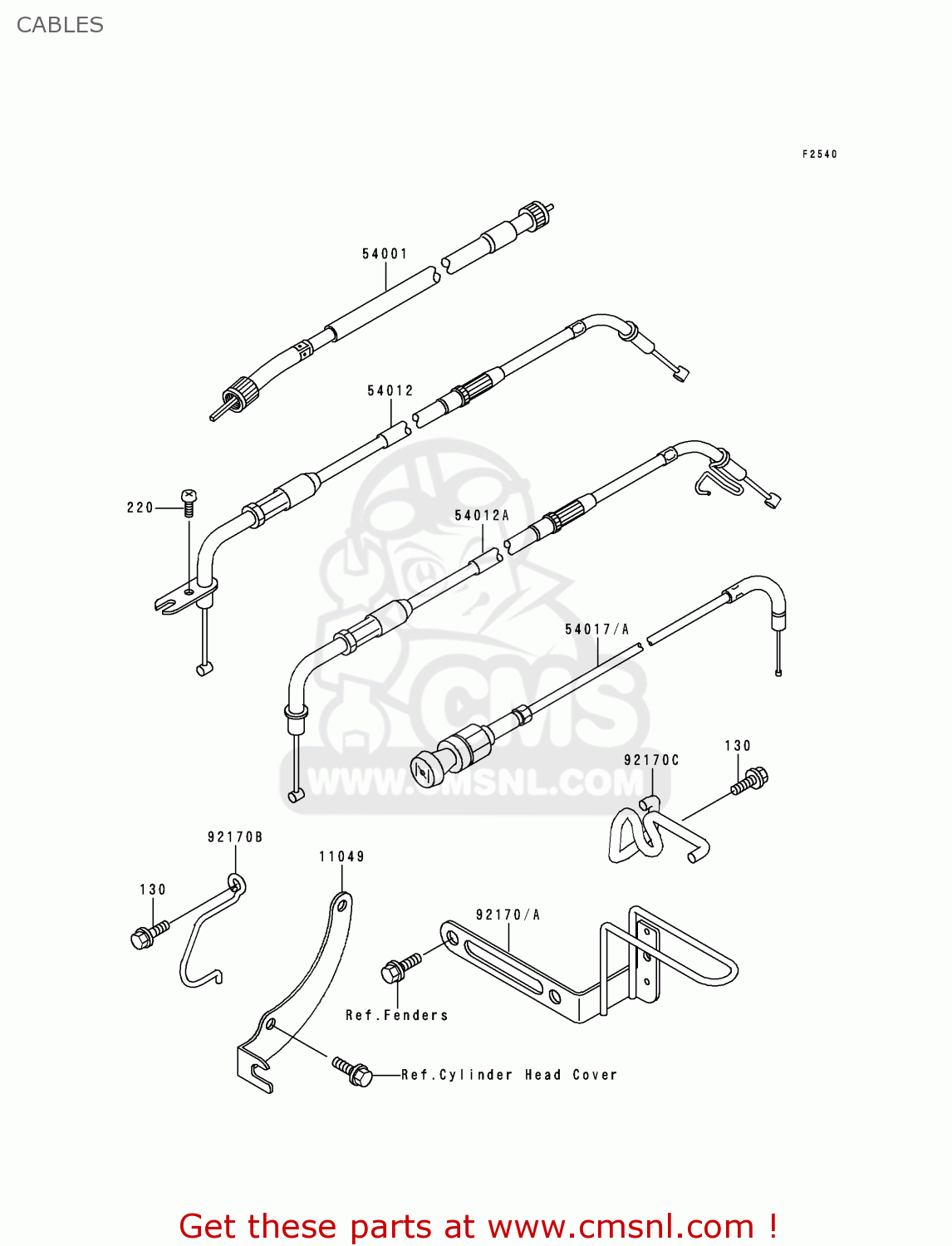

Cables スキーマ VN1500D2A VN1500 CLASSIC 1997 EUROPE FR NL AR FG GR NR SD ST

CABLES VN1500D2A VN1500 CLASSIC 1997 EUROPE FR NL AR FG GR NR SD ST
CABLES VN1500D2A VN1500 CLASSIC 1997 EUROPE FR NL AR FG GR NR SD ST
価格は EUR 単位です
参照
パーツ番号
説明
量
130
130J0614
参照: 130
BOLT-FLANGED,6X14,BLA
130J0614
€ 1.50
220
220C0514
参照: 220
SCREW-PAN-CROS
220C0514
€ 1.00
11049
110491888
参照: 11049
BRACKET,CHOCK CABLE
110491888
€ 6.00
54001
540011215
参照: 54001
CABLE-SPEEDMETER
540011215
€ 21.00
54012
540121518
参照: 54012
CABLE-THROTTLE,OPENIN
540121518
€ 30.50
54012A
540121519
参照: 54012A
CABLE-THROTTLE,CLOSIN
€ 30.50
54017A
540171187
参照: 54017A
CABLE-STARTER
540171187
€ 27.50
92170A
921701654
参照: 92170A
CLAMP,CABLE
€ 18.00
92170B
921701697
参照: 92170B
CLAMP,CABLE
€ 8.00
92170C
921701729
参照: 92170C
CLAMP,CABLE
921701729
€ 8.00
