CRANKCASE

KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

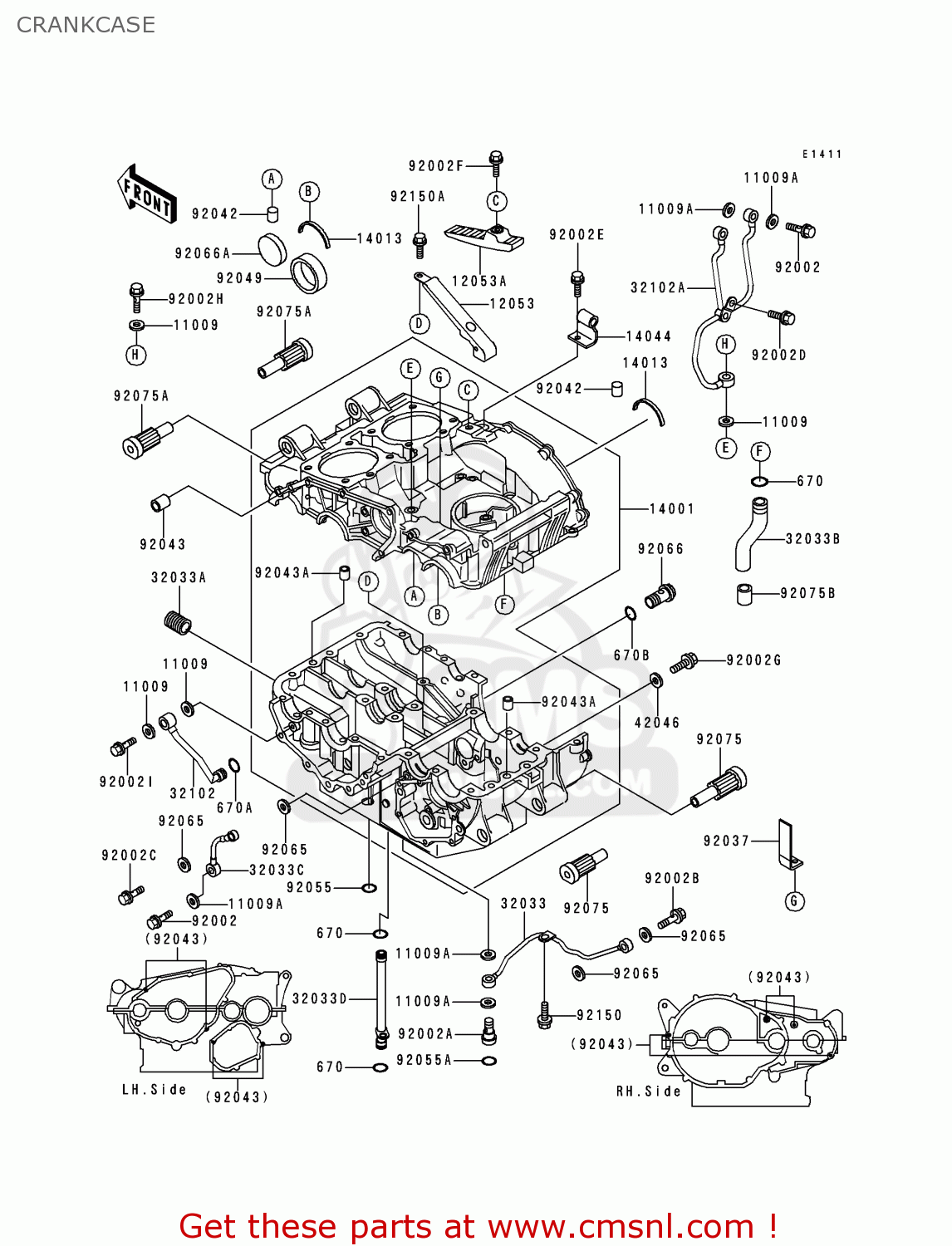

Crankcase スキーマ KLE500A7 1997 EUROPE UK FR NL AR FG NR SP

CRANKCASE KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
CRANKCASE KLE500A7 1997 EUROPE UK FR NL AR FG NR SP
価格は EUR 単位です
参照
パーツ番号
説明
量
11009
110091105
参照: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
参照: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.00
12053
120531216
参照: 12053
GUIDE-CHAIN,LWR
120531216
€ 16.50
12053A
120531217
参照: 12053A
GUIDE-CHAIN,UPP
120531217
€ 31.00
14001
140011091
参照: 14001
SET-CRANKCASE
€ 1,929.00
14013
14013004
参照: 14013
RING-BEARING SETTING
14013004
€ 6.50
14044
140441073
参照: 14044
HOLDER-CABLE
€ 10.00
32033
320331530
参照: 32033
PIPE
320331530
€ 38.50
32033A
320331535
参照: 32033A
PIPE
320331535
€ 8.00
32033B
320331538
参照: 32033B
PIPE
320331538
€ 24.00
32033C
320331539
参照: 32033C
PIPE
320331539
€ 29.50
32033D
320331574
参照: 32033D
PIPE
320331574
€ 37.50
32102
321021541
参照: 32102
PIPE
321021541
€ 27.00
32102A
321021710
参照: 32102A
PIPE
321021710
€ 79.00
42046
42046008
参照: 42046
WASHER,6.5X24X1.2
€ 2.00
92002
920021429
参照: 92002
BOLT,8X20
920021429
€ 6.50
92002A
920021467
参照: 92002A
BOLT
€ 18.00
92002B
920021471
参照: 92002B
BOLT,BANJO,6X28
€ 12.00
92002C
920021473
参照: 92002C
BOLT,BANJO,6X19
€ 7.50
92002D
920021569
参照: 92002D
BOLT,6X12
920021569
€ 2.50
92002E
920021570
参照: 92002E
BOLT,6X16
920021570
€ 3.00
92002F
920021571
参照: 92002F
BOLT,6X16
920021571
€ 3.50
92002G
920021656
参照: 92002G
BOLT, 6 X 14
920021656
€ 3.00
92002H
920021809
参照: 92002H
BOLT
€ 9.50
92002I
920021941
参照: 92002I
BOLT,BANJO,10X30
€ 6.00
92037
920371679
参照: 92037
CLAMP
920371679
€ 3.50
92042
92042016
参照: 92042
PIN,DOWEL,6X16
92042016
€ 3.00
92043
920431263
参照: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431264
参照: 92043A
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92049
920491070
参照: 92049
SEAL-OIL,AE2343F0
920491070
€ 10.50
92055
92055048
参照: 92055
RING-O,OD=18
92055048
€ 2.50
92055A
92055074
参照: 92055A
O RING
92055074
€ 5.00
92065
92065096
参照: 92065
GASKET,FUEL COCK (NAS)
92065096
€ 3.00
92066
920661205
参照: 92066
PLUG,MAIN GALLERY
920661205
€ 17.50
92066A
920661208
参照: 92066A
PLUG,RCA 345.5
920661208
€ 9.50
92075
920751678
参照: 92075
DAMPER,L=79.5
920751678
€ 33.00
92075A
920751679
参照: 92075A
DAMPER,L=93
920751679
€ 33.00
92075B
920751742
参照: 92075B
DAMPER
920751742
€ 3.00
92150
921501826
参照: 92150
BOLT,6X12
921501826
€ 2.50
92150A
921501868
参照: 92150A
BOLT,6X12
921501868
€ 2.00
670
670B1510
参照: 670
O RING,9.8X1.9
670B1510
€ 2.50
670A
670B2010
参照: 670A
O RING,10MM
670B2010
€ 1.00
670B
670B2021
参照: 670B
O RING,21MM
670B2021
€ 2.50
