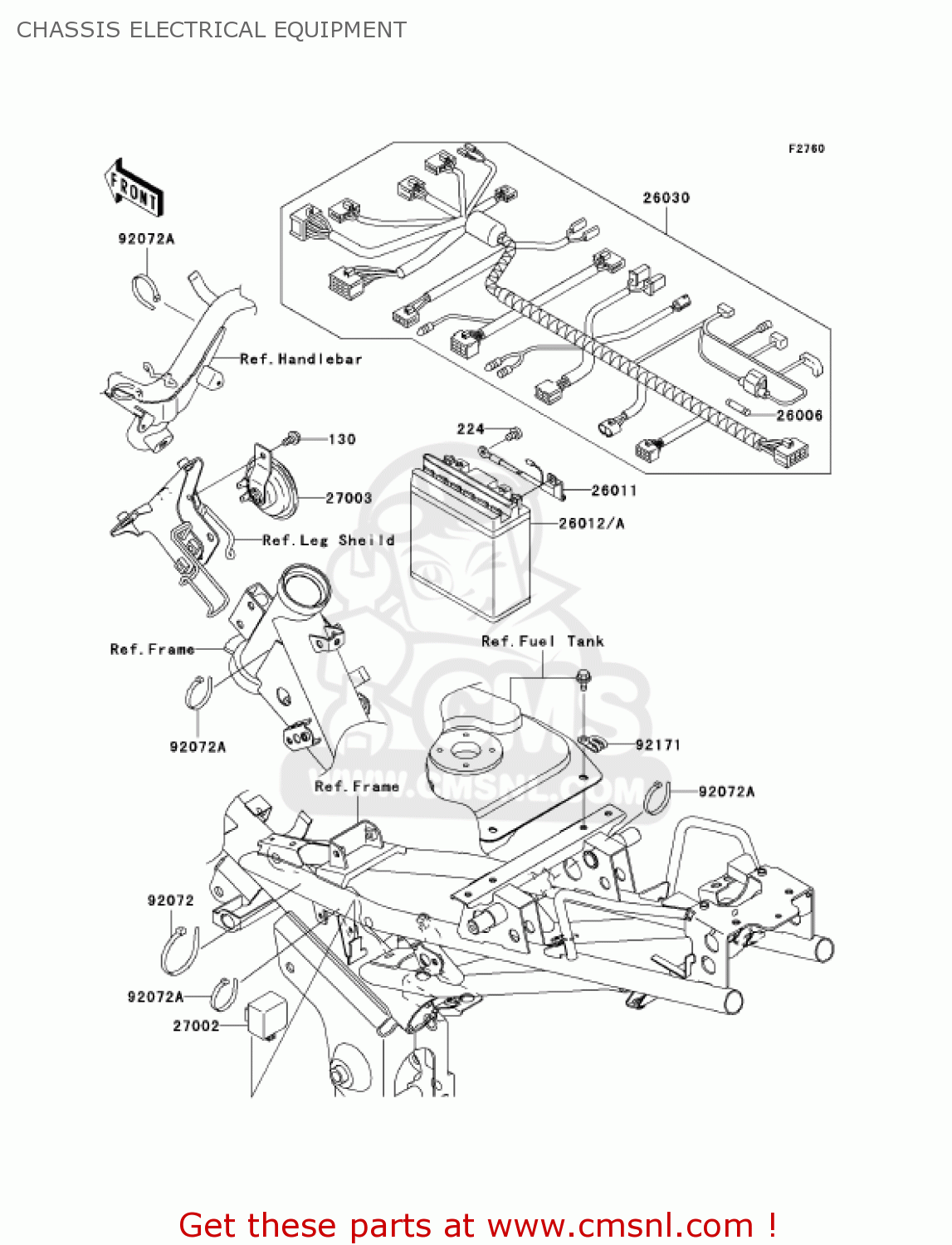

CHASSIS ELECTRICAL EQUIPMENT

AN112D3 KAZER 2004 CANADA

Chassis electrical equipment スキーマ AN112D3 KAZER 2004 CANADA

CHASSIS ELECTRICAL EQUIPMENT AN112D3 KAZER 2004 CANADA
CHASSIS ELECTRICAL EQUIPMENT AN112D3 KAZER 2004 CANADA
価格は EUR 単位です
参照
パーツ番号
説明
量
130
130J0612
参照: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
224
224D0610
参照: 224
SCREW-PAN-WP-CROS,6X1
€ 1.50
26006
260061002
参照: 26006
FUSE,10A,L=30M/M
260061002
€ 3.00
26011
260111828
参照: 26011
WIRE-LEAD,BATTERY(-)
€ 4.00
26012
260120033
参照: 26012
BATTERY,GM5Z-3B,12V 5AH
€ 24.00
26012A
260121380
参照: 26012A
BATTERY,FB5L-B,12V 5AH
€ 24.00
26030
260301969
参照: 26030
HARNESS,MAIN
€ 25.00
27002
270021103
参照: 27002
RELAY-ASSY,TURN SIGNAL(MITSUBA
€ 23.00
27003
270030026
参照: 27003
HORN
€ 33.50
92072
920721237
参照: 92072
BAND,L=250
920721237
€ 2.00
92072A
920721293
参照: 92072A
BAND
920721293
€ 6.00
92171
921711296
参照: 92171
CLAMP
€ 1.00
