Camshaft(s)/Tensioner

KVF700-D1 PRAIRIE700 2005 USA / 4X4

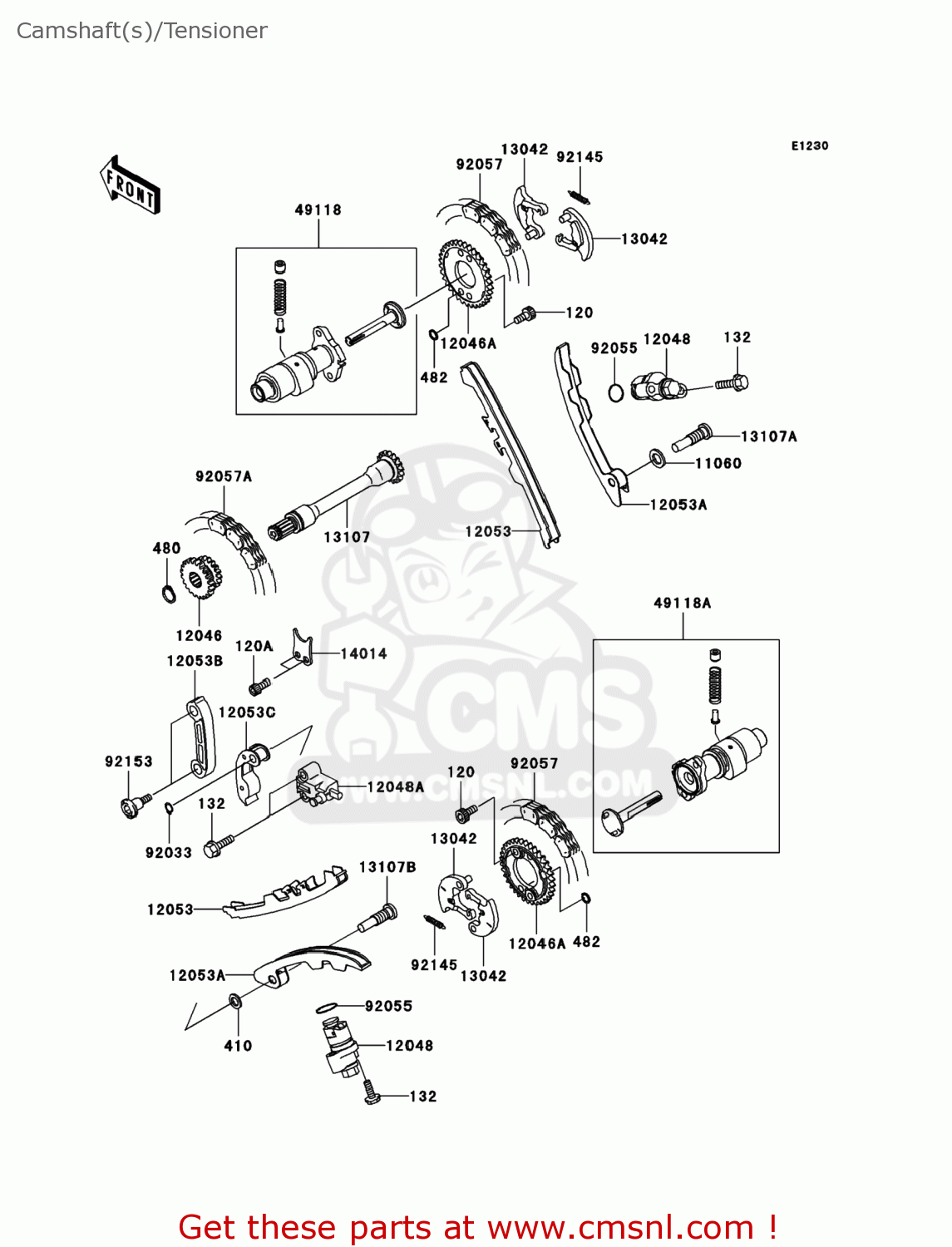

Camshaft(s)/tensioner スキーマ KVF700-D1 PRAIRIE700 2005 USA / 4X4

Camshaft(s)/Tensioner KVF700-D1 PRAIRIE700 2005 USA / 4X4
Camshaft(s)/Tensioner KVF700-D1 PRAIRIE700 2005 USA / 4X4
価格は EUR 単位です
参照
パーツ番号
説明
量
11060
110601966
参照: 11060
GASKET (NAS)
110601966
€ 1.50
120
120P0610
参照: 120
BOLT-SOCKET,6X10
120P0610
€ 1.00
12046
120460021
参照: 12046
SPROCKET,21T&17T
€ 61.50
12046A
120461203
参照: 12046A
SPROCKET,CAMSHAFT,34T
120461203
€ 52.00
12048
120481176
参照: 12048
TENSIONER-ASSY,CAM
120481176
€ 114.00
12048A
120481177
参照: 12048A
TENSIONER-ASSY,SECOND
120481177
€ 114.00
12053
120531441
参照: 12053
GUIDE-CHAIN,TENSIONER
120531441
€ 38.50
12053A
120531442
参照: 12053A
GUIDE-CHAIN,SLACK
120531442
€ 41.00
12053B
120531443
参照: 12053B
GUIDE-CHAIN,SLACK
120531443
€ 17.50
12053C
120531444
参照: 12053C
GUIDE-CHAIN,TENSIONER
120531444
€ 35.00
120A
120S0614
参照: 120A
BOLT-SOCKET,6X14,BLAC
120S0614
€ 2.00
13042
130421141
参照: 13042
WEIGHT,DECOMP
130421141
€ 27.00
13107
131070029
参照: 13107
SHAFT
131070029
€ 138.50
13107A
131071443
参照: 13107A
SHAFT,CHAIN GUIDE,FR
131071443
€ 7.00
13107B
131071444
参照: 13107B
SHAFT,CHAIN GUIDE,RR
131071444
€ 8.50
132
132Y0630
参照: 132
BOLT-FLANGED-SMALL
132Y0630
€ 2.00
14014
140141148
参照: 14014
PLATE-POSITION,DRIVE
140141148
€ 2.50
410
410B0800
参照: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
480
480J1400
参照: 480
CIRCLIP-TYPE-C,14MM
480J1400
€ 2.50
482
482J5000
参照: 482
CIRCLIP-TYPE-E,5MM
482J5000
€ 0.50
49118
491181193
参照: 49118
CAMSHAFT-COMP,FR
491181193
€ 356.50
49118A
491181194
参照: 49118A
CAMSHAFT-COMP,RR
€ 356.50
92033
920331039
参照: 92033
CIRCLIP,8M/M
920331039
€ 2.50
92055
92055086
参照: 92055
RING-O
92055086
€ 2.50
92057
920571487
参照: 92057
CHAIN,CAM SHAFT
920571487
€ 20.00
92057A
920571488
参照: 92057A
CHAIN,SECONDARY SHAFT
920571488
€ 14.50
92145
921451303
参照: 92145
SPRING,DECOMP
921451303
€ 1.50
92153
921531200
参照: 92153
BOLT
921531200
€ 7.50
