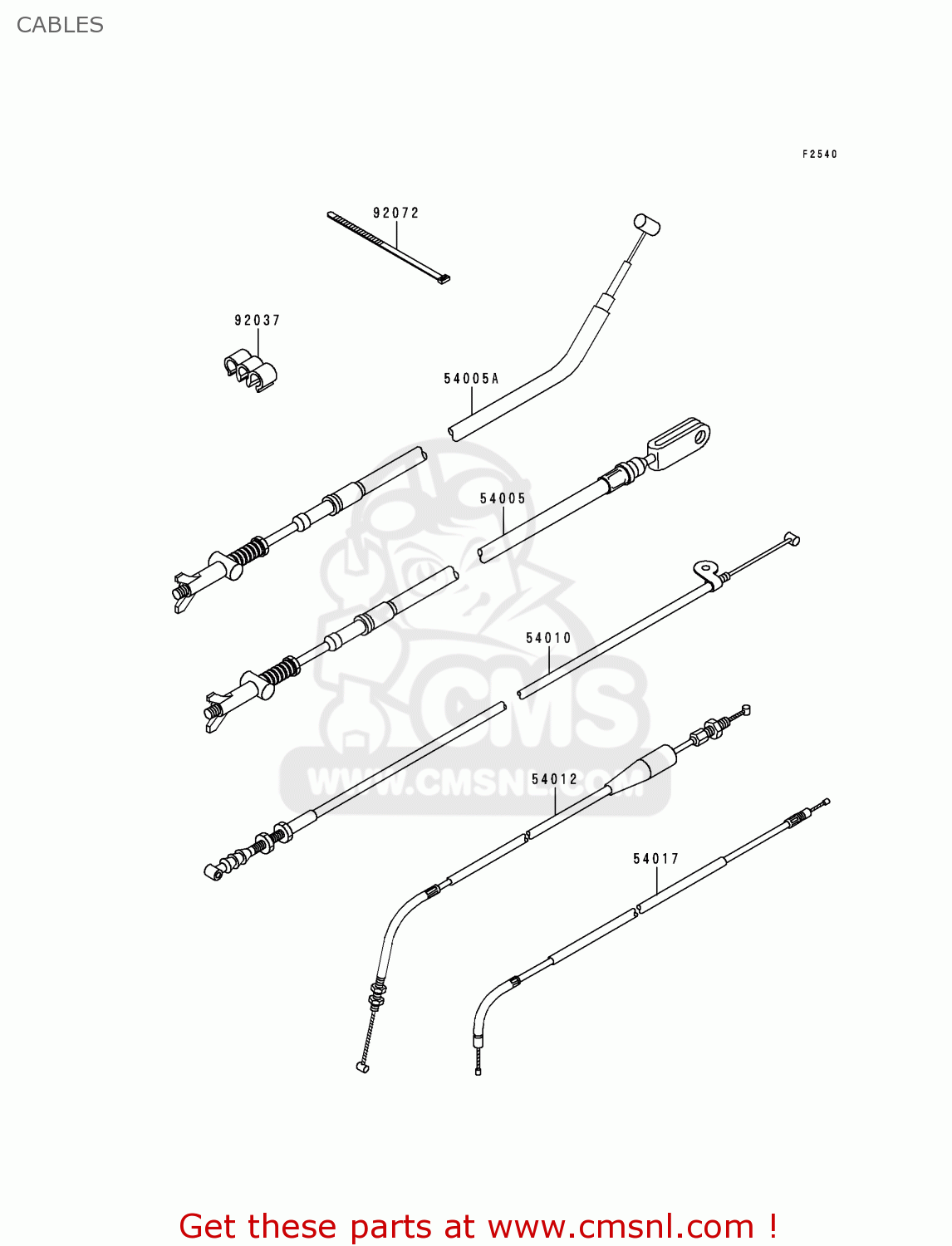

CABLES

KLF300-C4 BAYOU3004X4 1992 USA CANADA

Cables スキーマ KLF300-C4 BAYOU3004X4 1992 USA CANADA

CABLES KLF300-C4 BAYOU3004X4 1992 USA CANADA
CABLES KLF300-C4 BAYOU3004X4 1992 USA CANADA
価格は EUR 単位です
参照
パーツ番号
説明
量
54005
540051147
参照: 54005
CABLE-BRAKE,FOOT
540051147
€ 30.50
54005A
540051148
参照: 54005A
CABLE-BRAKE,PARKING
540051148
€ 14.00
54012
540121353
参照: 54012
CABLE-THROTTLE
540121353
€ 13.50
54017
540171105
参照: 54017
CABLE-STARTER
540171105
€ 11.50
92037
920371697
参照: 92037
CLAMP,CABLE
920371697
€ 4.00
92072
920721239
参照: 92072
BAND,L=188
920721239
€ 1.50
