F-12 SEAT

NH125 1984 (E) AUSTRALIA

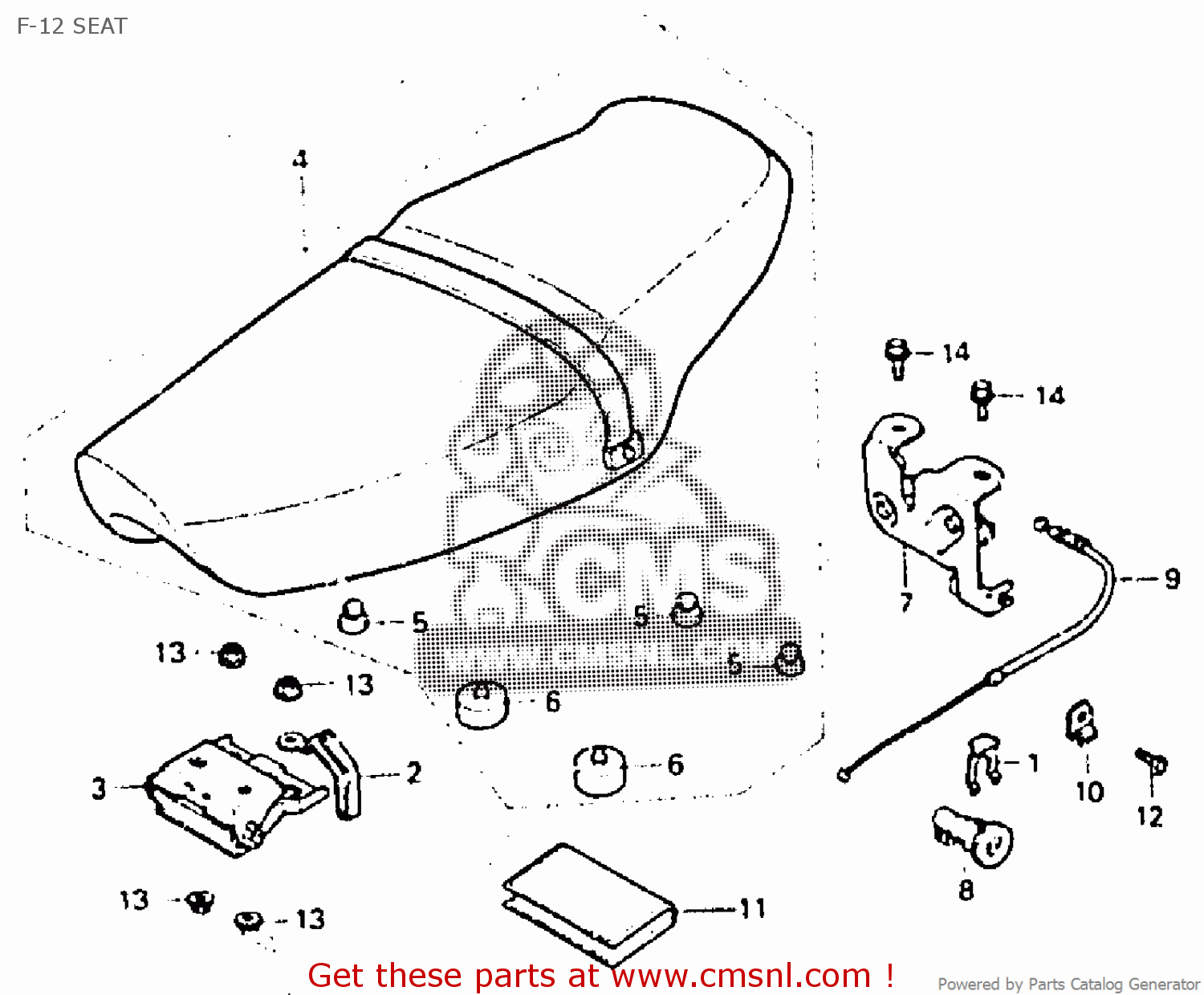

F-12 seat スキーマ NH125 1984 (E) AUSTRALIA

F-12 SEAT NH125 1984 (E) AUSTRALIA
F-12 SEAT NH125 1984 (E) AUSTRALIA
価格は EUR 単位です
参照
パーツ番号
説明
量
1
75581673000
参照: 1
SPR DR LOCK KEY
75581673000
€ 4.50
2
77106GC8000
参照: 2
HOOK,HELMET
77106GC8000
€ 4.50
3
77110GC8000
参照: 3
HINGE COMP.,SEAT
77110GC8000
€ 14.50
4
77200KG8610ZA
参照: 4
SEAT,DBL*TYPE-1*
€ 178.00
4
77200KG8610ZC
参照: 4
SEAT,DBL*TYPE-3*
€ 178.00
4
77200KG8610ZB
参照: 4
SEAT,DBL*TYPE-2*
€ 178.00
5
77206KG8000
参照: 5
RUB,SEAT SETTING
77206KG8000
€ 3.50
6
77211GC8000
参照: 6
RUBBER,SEAT SET
77211GC8000
€ 3.00
7
77230GG2000
参照: 7
LOCK COMP,SEAT
77230GG2000
€ 32.50
8
77239196007
参照: 8
KEY,SEAT LOCK
77239196007
€ 23.00
9
77240KG8000
参照: 9
CABLE,SEAT LOCK
77240KG8000
€ 7.50
10
77241196000
参照: 10
PLATE A,STAY
77241196000
€ 2.50
11
77251342000
参照: 11
BAG,SERVICE BOOK
77251342000
€ 4.50
12
92000040080H
参照: 12
BOLT,HEX,4X8
92000040080H
€ 1.00
14
957000601000
参照: 14
BOLT,FLANGE,6X10
957000601000
€ 1.00
