CYLINDER

XL600R 1983 (D) USA

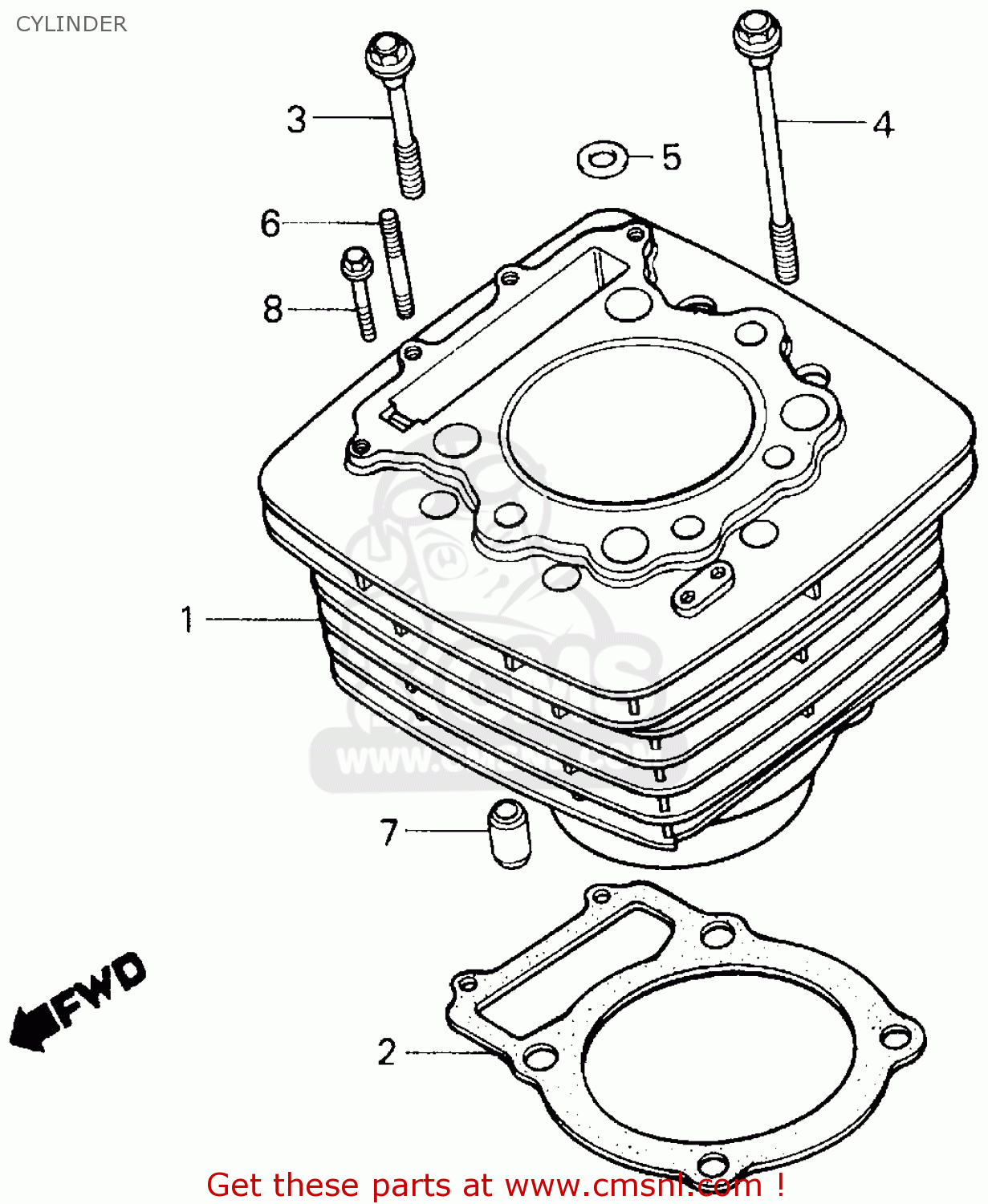

Cylinder スキーマ XL600R 1983 (D) USA

CYLINDER XL600R 1983 (D) USA
CYLINDER XL600R 1983 (D) USA
価格は EUR 単位です
参照
パーツ番号
説明
量
1
12101MG2000
参照: 1
A
CYLINDER COMP.
12101MG2000
€ 635.00
1
12101MG2010
参照: 1
A
CYLINDER COMP
€ 635.00
1
12101MG2020
参照: 1
A
CYLINDER COMP
€ 635.00
2
12191MG3000
参照: 2
A
GASKET,CYLINDER (MCA)
12191MG3000
€ 10.00
2
12191MK2000
参照: 2
A
GASKET,CYLINDER (MCA)
€ 10.00
2
12191MN1670
参照: 2
A
GASKET,CYLINDER (MCA)
12191MN1670
€ 10.00
2
12191MN1700
参照: 2
A
GASKET,CYLINDER (NAS)
12191MN1700
€ 10.00
3
90085MG3000
参照: 3
A
BOLT,FLANGE,10X66
90085MG3000
€ 11.00
4
90086MG3000
参照: 4
A
BOLT,FLANG,10X110
90086MG3000
€ 17.00
5
90453MG3000
参照: 5
A
WASHER,10.2MM
90453MG3000
€ 3.00
5
90453MK4600
参照: 5
A
WASHER,PLAIN,10MM
90453MK4600
€ 3.00
6
92700060350E
参照: 6
A
BOLT,STUD, 6X35
92700060350E
€ 1.50
6
92900060250E
参照: 6
A
BOLT,STUD2 6X25
92900060250E
€ 1.50
7
9430112200
参照: 7
A
DOWEL,PIN,12X20
9430112200
€ 2.00
8
960000603207
参照: 8
A
BOLT,FLG,SH. 6X32
960000603207
€ 2.00
8
960010603207
参照: 8
A
BOLT,FLANGE,6X32
960010603207
€ 2.00
