TAILLIGHT (VT1100C)

VT1100C SHADOW 1998 (W) CANADA / RBM

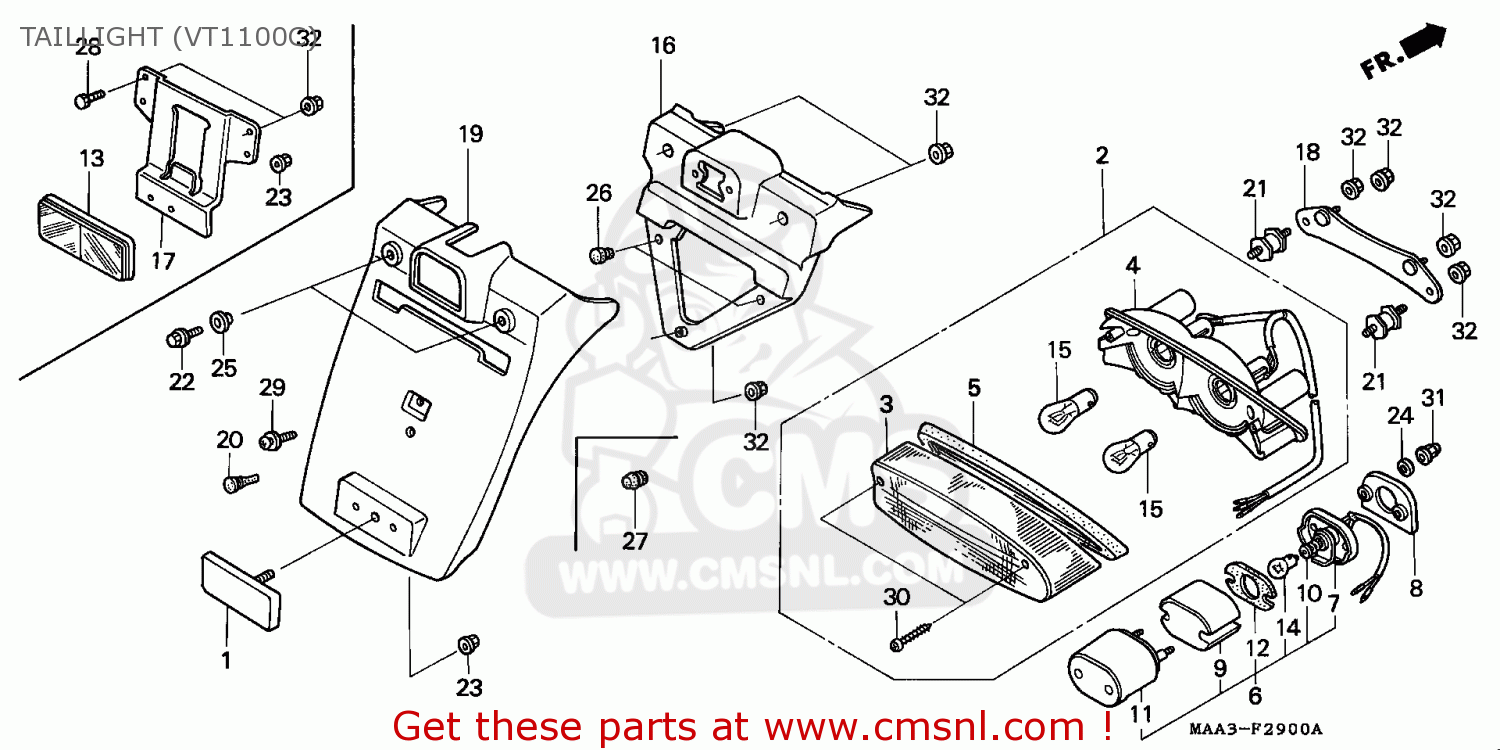

Taillight (vt1100c) スキーマ VT1100C SHADOW 1998 (W) CANADA / RBM

価格は EUR 単位です

参照

パーツ番号

説明

量

33701MM8671
参照: 2

UNIT TAIL LIGHT

€ 188.00

33702MM8671
参照: 3

LENS COMP.,TAILLI

€ 55.50

33704MM8671
参照: 4

BASE COMP.,TAILLI

€ 230.50

33709MM8671
参照: 5

PACKING,TAILLIGHT

€ 14.00

33741MS6921
参照: 13

REFLECTOR,REFLEX

€ 30.00

34906425771
参照: 15

BULB,TAIL LIGHT

€ 6.50

80102MM8010
参照: 17

STAY,RR.REFLECTOR

€ 15.50

80103MM8000
参照: 18

STAY,TAILLIGHT

€ 14.00

85201438000
参照: 21

RUBBER,OIL COOLER

€ 14.00

90301MG8000
参照: 23

NUT,FLANGE,5MM

€ 2.50

92101060100G
参照: 28

BOLT,HEX.,6X10

€ 1.00

9390134780
参照: 30

SCREW,TAP.4X30

€ 1.00

9405006080
参照: 32

NUT,FLANGE,6MM

€ 1.00
