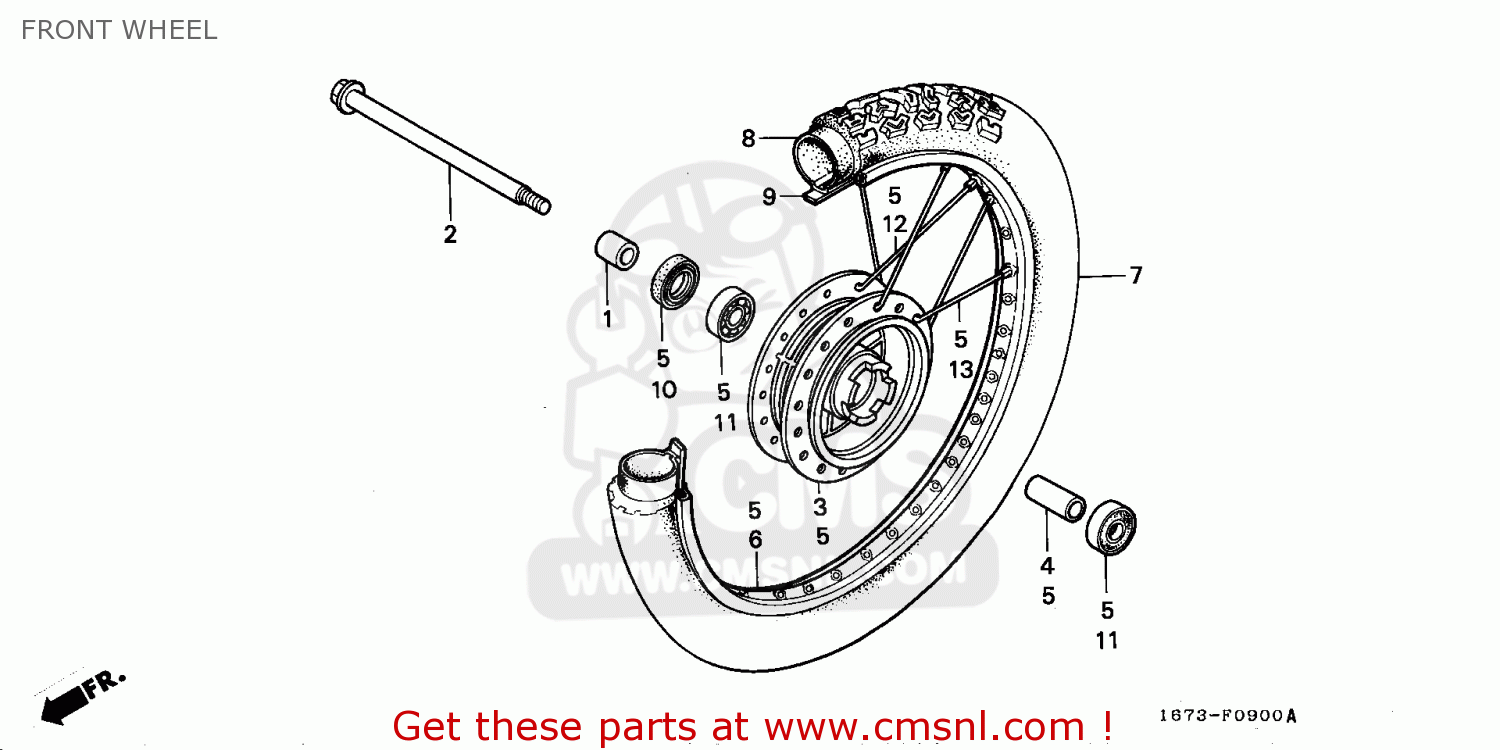

FRONT WHEEL

MT50S 1990 (L) NETHERLANDS

Front wheel スキーマ MT50S 1990 (L) NETHERLANDS

FRONT WHEEL MT50S 1990 (L) NETHERLANDS
FRONT WHEEL MT50S 1990 (L) NETHERLANDS
価格は EUR 単位です
参照
パーツ番号
説明
量
1
42311166000
参照: 1
COLLAR,RR.SIDE
42311166000
€ 8.00
2
44301167860
参照: 2
AXLE,FR.WHEEL
44301167860
€ 12.50
3
44601153600ZA
参照: 3
HUB,FR. *NH105*
44601153600ZA
€ 109.50
4
44620400000
参照: 4
COLLAR,FR.DIST.
44620400000
€ 8.50
6
44701364711
参照: 6
RIM,WHEEL,19X1.40
44701364711
€ 129.50
7
44711KA8671
参照: 7
TIRE,FRONT
€ 123.50
7
44711KA8672
参照: 7
TIRE,FR
44711KA8672
€ 128.50
8
44712167003
参照: 8
TUBE TIRE
44712167003
€ 28.00
8
44712167005
参照: 8
TUBE TIRE
44712167005
€ 28.50
9
44713110003
参照: 9
FLAP,TIRE
44713110003
€ 8.50
9
44713167005
参照: 9
FLAP TIRE
44713167005
€ 6.00
10
91252030003
参照: 10
OIL SEAL 23X37X7
91252030003
€ 5.50
10
91252030005
参照: 10
OIL SEAL 23X37X7
€ 5.50
11
961406301010
参照: 11
B/BRG RAD N/COM
961406301010
€ 18.50
12
9722631206K0
参照: 12
SPOKE A,11X183
9722631206K0
€ 1.50
13
9760431205K0
参照: 13
SPOKE A,11X182.5
9760431205K0
€ 1.50
