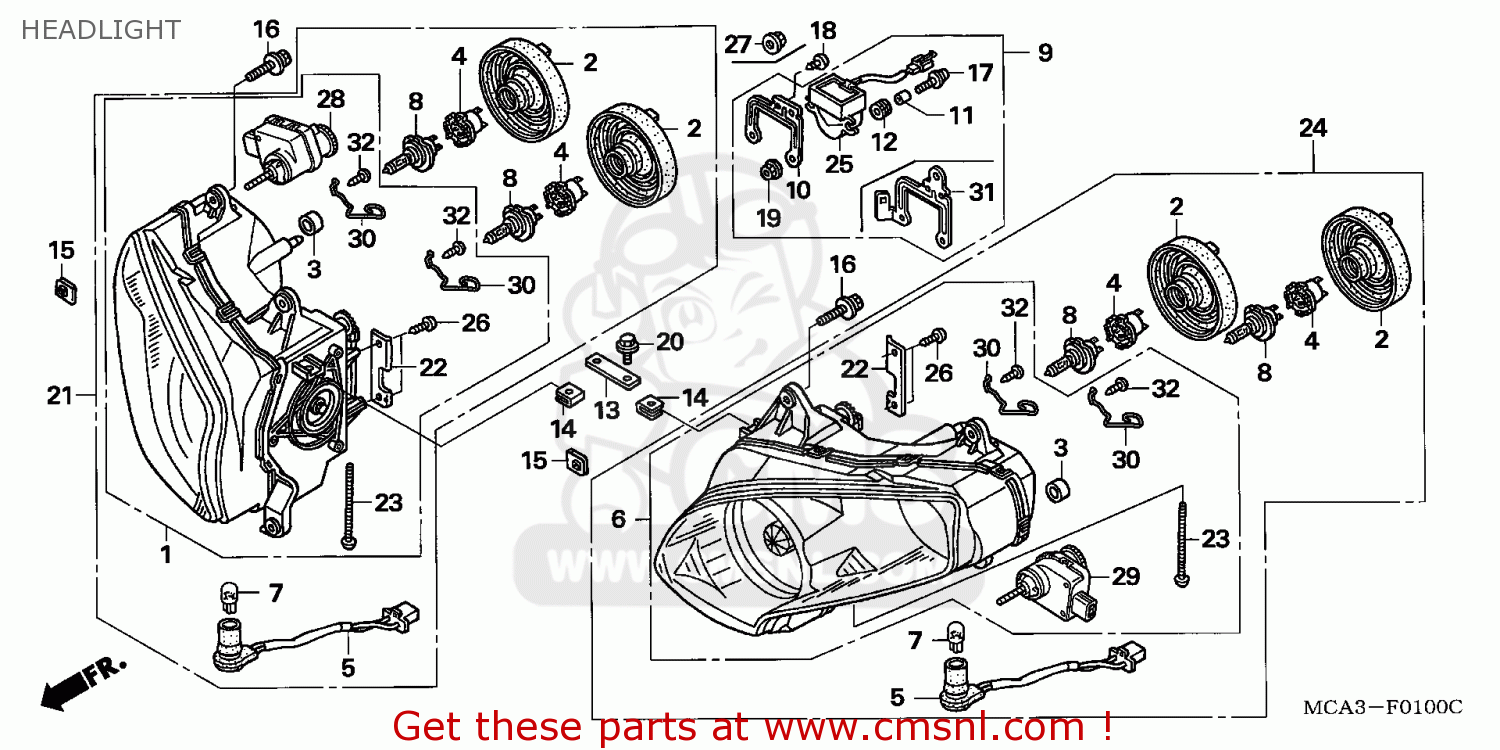

HEADLIGHT

GL1800A GOLDWING 2002 (2) EUROPEAN DIRECT SALES

Headlight スキーマ GL1800A GOLDWING 2002 (2) EUROPEAN DIRECT SALES

HEADLIGHT GL1800A GOLDWING 2002 (2) EUROPEAN DIRECT SALES

価格は EUR 単位です

参照

パーツ番号

説明

量

1

33102MCA621
参照: 1

UNIT COMP.R,HEAD

€ 695.00

2

33112KPB003
参照: 2

COVER,RUBBER

€ 19.00

3

33113MBWD21
参照: 3

PIPE CP

€ 4.00

4

33130MAT611
参照: 4

SOCKET COMP,HEAD

€ 24.00

5

33140MCA601
参照: 5

SOCKET COMP.

€ 69.00

6

33152MCA621
参照: 6

UNIT COMP.L,HEAD

€ 695.00

7

33301SA0741
参照: 7

BULB (12V5W)

€ 4.50

8

34901MAT611
参照: 8

BULB,HEAD LIGHT (

€ 16.50

9

35160MCA013
参照: 9

SENSOR ASSY,BANK

€ 167.50

10

35162MCA003
参照: 10

PLATE,BANK ANGLE

€ 4.00

11

35162MN5003
参照: 11

COLLAR

€ 6.50

12

35163MN5003
参照: 12

GROMMET

€ 3.50

13

64516MCA000
参照: 13

PLATE,UP HEAD LIG

€ 3.50

14

90301SM4901
参照: 14

NUT,SPRING,6MM

€ 6.00

15

90305SH3000
参照: 15

NUT CLIP AIR SPOILER

€ 3.50

16

934040602507
参照: 16

BOLT-WASHER,6X25

€ 1.50

17

93500040200H
参照: 17

SCREW,CROSS,4X20

€ 0.50

18

9390125080
参照: 18

SCREW,TAPPING,5X8

€ 1.00

19

9405004000
参照: 19

NUT,FLANGE,4MM

€ 1.00

20

960010601800
参照: 20

BOLT,FLANGE,SH 6X18

€ 1.50

21

33100MCA621
参照: 21

LIGHT ASSY,HEAD R

€ 694.00

22

33101MCA003
参照: 22

PLATE

€ 17.00

23

33103MCA003
参照: 23

SCREW COMP.,BEAM

€ 22.00

24

33150MCA621
参照: 24

LIGHT ASSY,HEAD L

€ 759.00

26

9390134320
参照: 26

SCREW,TAP.,4X12

€ 0.50

28

33130MCA003
参照: 28

UNIT,H/L ADJ R

€ 82.00

29

33135MCA003
参照: 29

UNIT,H/L ADJ L

€ 82.00
