HANDLE LEVER / SWITCH / CABLE

GL1000 GOLDWING 1978 USA

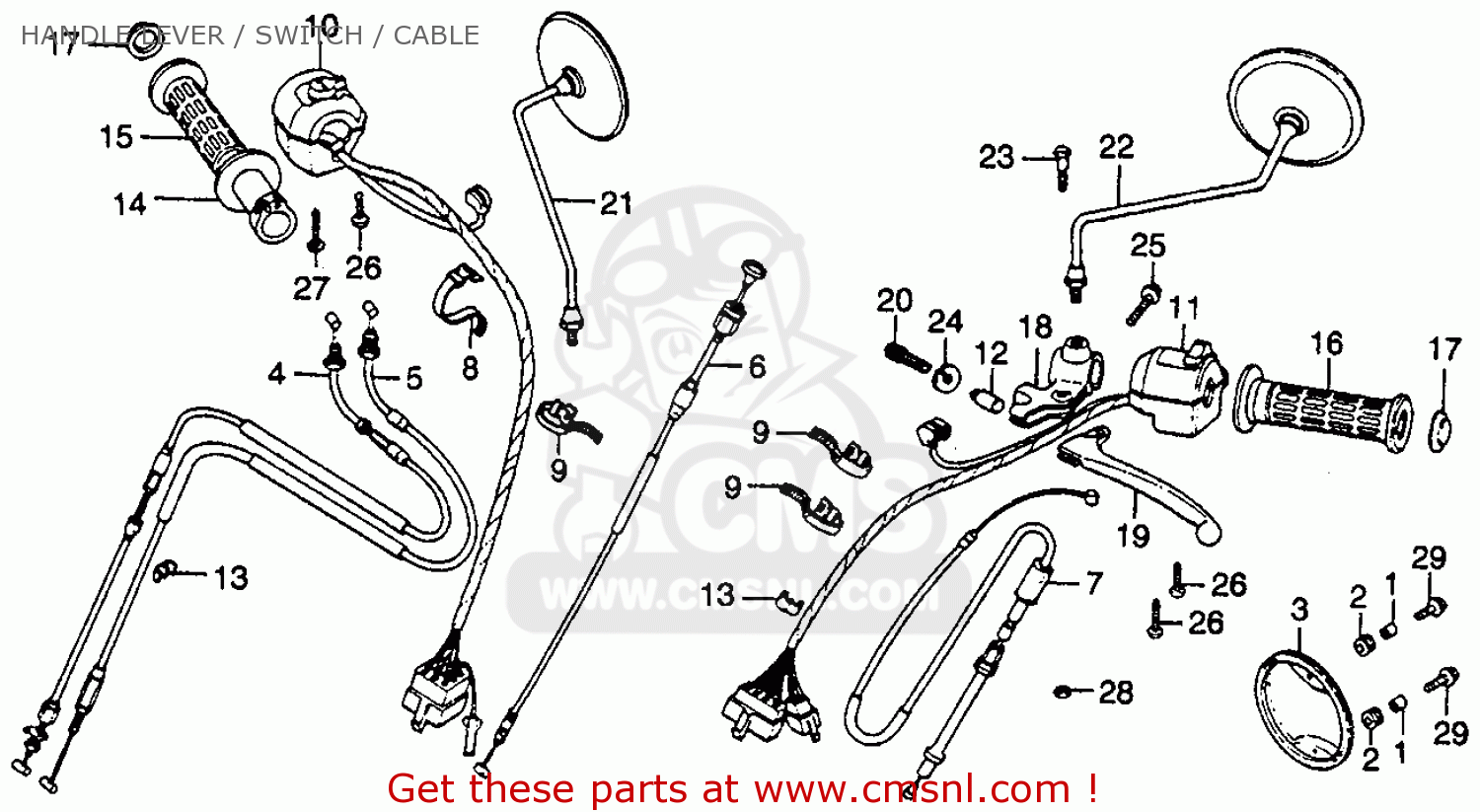

Handle lever / switch / cable スキーマ GL1000 GOLDWING 1978 USA

HANDLE LEVER / SWITCH / CABLE GL1000 GOLDWING 1978 USA
HANDLE LEVER / SWITCH / CABLE GL1000 GOLDWING 1978 USA
価格は EUR 単位です
参照
パーツ番号
説明
量
0
9410106200
参照: 0
WASHER,PLAIN 6MM
9410106200
€ 1.50
1
11346371300
参照: 1
COLLAR,ADJUST
11346371300
€ 7.50
2
11347371300
参照: 2
GROMMET,
11347371300
€ 2.50
3
11348371000
参照: 3
COVER,CLUTCH
11348371000
€ 21.50
4
17910MB9670
参照: 4
CABLE A,THROTTLE
17910MB9670
€ 43.00
4
17910371660
参照: 4
CABLE A,THROT.
€ 43.00
5
17920371660
参照: 5
CABLE B,THROT.
17920371660
€ 37.00
5
17920463405
参照: 5
CABLE COMP B,THRO
17920463405
€ 37.00
6
17950371000
参照: 6
CABLE COMP.,CHOKE
€ 27.00
6
17950371010
参照: 6
CABLE COMP.,CHOKE
17950371010
€ 27.00
7
22870371660
参照: 7
CABLE,CLUTCH
22870371660
€ 37.50
8
32161404000
参照: 8
BAND,BI WIRE
32161404000
€ 3.50
9
32161404610
参照: 9
BAND,WIRE HARNESS
32161404610
€ 3.50
10
35130431671
参照: 10
SW, STARTING KILL
35130431671
€ 55.00
11
35200431671
参照: 11
SW, WINKER
35200431671
€ 58.00
12
35330413003
参照: 12
SWITCH,FR.LEVER
35330413003
€ 21.00
13
45465341700
参照: 13
CLIP,WIRE
45465341700
€ 5.50
14
53141300010
参照: 14
PIPE,THROTTLEGRIP
53141300010
€ 14.00
15
53165371000
参照: 15
GRIP,R.HANDLE
53165371000
€ 10.50
15
53165390780
参照: 15
GRIP,R.HANDLE
53165390780
€ 10.50
16
53166371000
参照: 16
GRIP,L.HANDLE
53166371000
€ 10.50
16
53166390780
参照: 16
GRIP,L.HANDLE
53166390780
€ 10.50
17
53167371000
参照: 17
CAP,HANDLE END
53167371000
€ 5.50
18
53172431003
参照: 18
BRKT,HANDLE LEVER
53172431003
€ 38.50
19
53178431003
参照: 19
LEVER,L. HANDLE
53178431003
€ 23.50
20
53192312000
参照: 20
BOLT,CABLE.ADJUST
53192312000
€ 13.00
21
88100371660
参照: 21
MIRROR,R.BACK
88100371660
€ 32.50
22
88120371660
参照: 22
MIRROR,L.BACK
88120371660
€ 32.50
23
90114268020
参照: 23
BOLT, LEVER
90114268020
€ 7.00
23
90114310000
参照: 23
BOLT,PIVOT
90114310000
€ 7.00
24
90321315670
参照: 24
NUT,FIXING
90321315670
€ 13.00
24
90321968000
参照: 24
NUT,FIXING
90321968000
€ 13.00
25
93000060250B
参照: 25
BOLT,HEX., 6X25
93000060250B
€ 1.00
25
930000602502
参照: 25
BOLT,HEX.,6X25
€ 1.00
25
93101060250B
参照: 25
BOLT,HEX.,6X25
93101060250B
€ 1.00
26
93500050250A
参照: 26
SCREW,PAN,5X25
93500050250A
€ 1.50
27
93500050350A
参照: 27
SCREW,PAN,5X35
93500050350A
€ 1.00
28
90310KA3711
参照: 28
NUT HEX 6MM
€ 1.00
28
94000060000S
参照: 28
NUT,HEX.,6MM
€ 1.00
28
9400106000
参照: 28
NUT,HEX 6MM
9400106000
€ 1.00
28
94001060000S
参照: 28
NUT,HEX 6MM
94001060000S
€ 1.00
28
94001060080S
参照: 28
NUT,HEX.,6MM
€ 1.00
28
94001062000S
参照: 28
NUT,HEX.,6MM
94001062000S
€ 1.00
28
9403006000
参照: 28
NUT,HEX 6MM
€ 1.00
29
957000601600
参照: 29
BOLT,FLANGE,6X16
957000601600
€ 1.00
29
957010601600
参照: 29
BOLT,FLANG,6X16
957010601600
€ 1.00
