CB/CL175STAND / STEP

CB175K3 SUPER SPORT 1969 USA

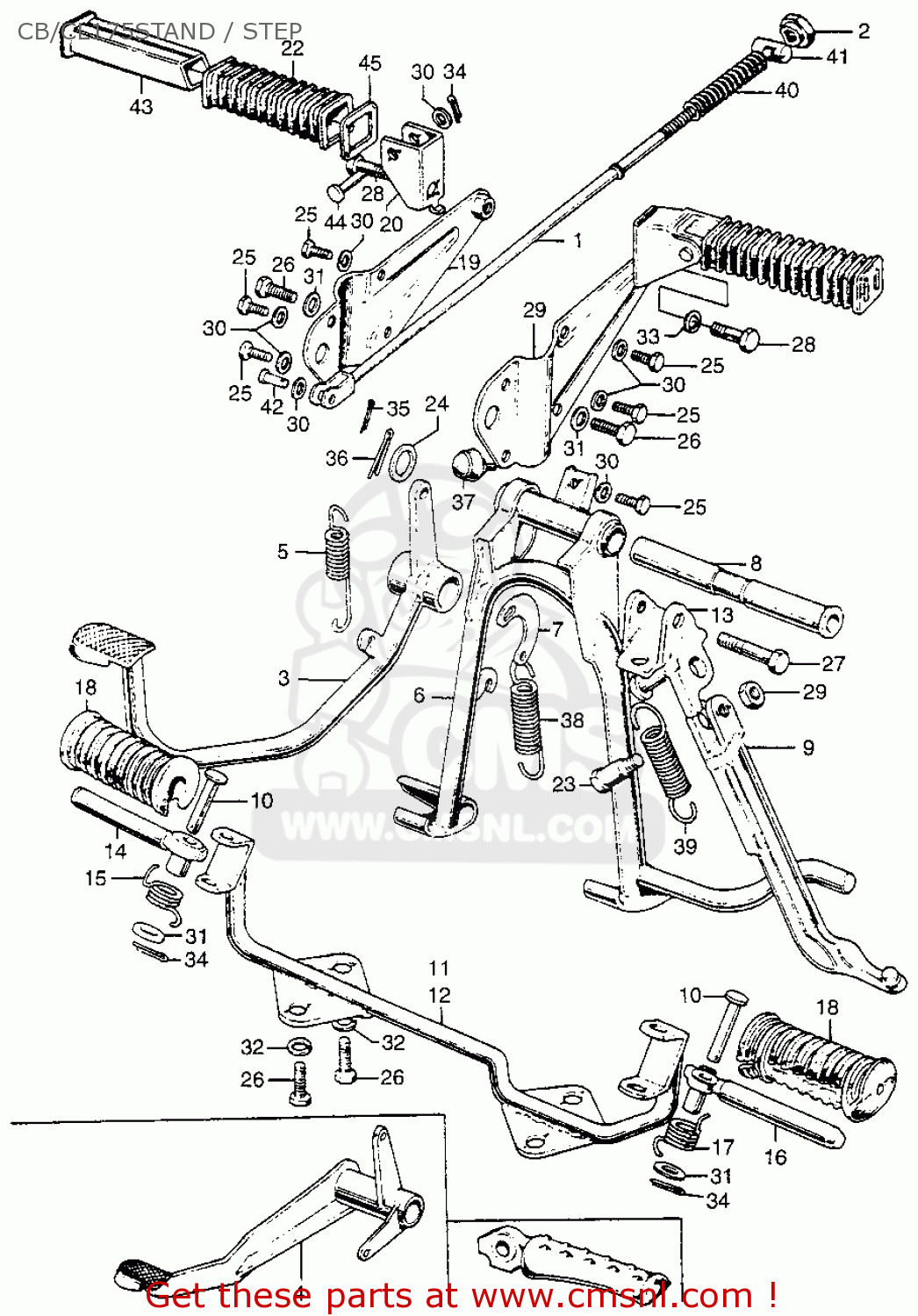

Cb/cl175stand / step スキーマ CB175K3 SUPER SPORT 1969 USA

CB/CL175STAND / STEP CB175K3 SUPER SPORT 1969 USA
CB/CL175STAND / STEP CB175K3 SUPER SPORT 1969 USA
価格は EUR 単位です
参照
パーツ番号
説明
量
2
43486250000
参照: 2
A
NUT,ADJUST
€ 4.00
2
9501542000
参照: 2
A
NUT,ADJUST
9501542000
€ 4.00
3
46500303040
参照: 3
A
PEDAL,BRAKE
46500303040
€ 110.50
5
46514303000
参照: 5
A
SPRING,BRK.PEDAL
46514303000
€ 4.50
5
46541354000
参照: 5
A
SPRING,BRK.PEDAL
46541354000
€ 4.50
6
50500303030B
参照: 6
A
STAND,MAIN
€ 84.00
6
50500336000B
参照: 6
A
STAND,MAIN
50500336000B
€ 84.00
7
50523205000
参照: 7
A
HOOK
50523205000
€ 10.00
8
50526286000
参照: 8
A
PIPE,STAND PIVOT
50526286000
€ 22.00
8
50526399000
参照: 8
A
SHAFT,STAND PIVOT
50526399000
€ 22.00
10
50603033000
参照: 10
A
PIN, BAR JOINT
50603033000
€ 2.50
10
50603033010
参照: 10
A
PIN,STEP BAR JOIN
50603033010
€ 2.50
11
50610306000B
参照: 11
A
BAR,STEP
50610306000B
€ 51.50
14
50616283020B
参照: 14
A
ARM,R STEP
50616283020B
€ 55.50
15
50617283000
参照: 15
A
SPRING, RETURN
50617283000
€ 5.00
16
50642283020B
参照: 16
A
ARM,L STEP
50642283020B
€ 49.00
17
50644283000
参照: 17
A
SPRING, RETURN
50644283000
€ 5.00
18
50661056000
参照: 18
A
RUBBER,STEP
50661056000
€ 8.00
18
50661110000
参照: 18
A
RUBBER,STEP
50661110000
€ 8.00
18
50661283010
参照: 18
A
RUBBER C,STEP
50661283010
€ 8.00
18
9501123000
参照: 18
A
RUBBER C,STEP
9501123000
€ 8.00
20
50713286000
参照: 20
A
BRACKET,PILLION
50713286000
€ 33.50
20
9501572100
参照: 20
A
BRACKET,PILLION
9501572100
€ 33.50
22
50731024000
参照: 22
A
RUBBER,PILLON
50731024000
€ 5.00
22
9501131000
参照: 22
A
RUBBER,PILLON
9501131000
€ 5.00
24
90512303000
参照: 24
A
WASHER, 17,5MM
90512303000
€ 2.00
25
9200006014
参照: 25
A
BOLT,HEX 6X14
9200006014
€ 1.00
25
92101060140A
参照: 25
A
BOLT,HEX.,6X14
92101060140A
€ 1.00
26
92000080160A
参照: 26
A
BOLT,HEX 8X16
92000080160A
€ 1.00
26
92101080160A
参照: 26
A
BOLT,HEX.,8X16
92101080160A
€ 1.00
28
92000100250A
参照: 28
A
BOLT HEX 10X25
92000100250A
€ 2.50
28
92101100250A
参照: 28
A
BOLT,HEX.,10X25
92101100250A
€ 2.50
29
94002100000S
参照: 29
A
NUT,HEX.,10MM
94002100000S
€ 1.00
30
9410106000
参照: 30
A
WASHER,PLAIN, 6MM
9410106000
€ 0.50
30
9410106080
参照: 30
A
WASHER PLAIN 6MM
9410106080
€ 1.00
31
9410108000
参照: 31
A
WASHER,PLAIN,8MM
9410108000
€ 1.00
32
9411108000
参照: 32
A
SPG-WASHER 8MM
9411108000
€ 1.00
33
9411110000
参照: 33
A
SPG-WASHER 10MM
9411110000
€ 1.00
34
9420116150
参照: 34
A
PIN,COTTER 1.6X15
9420116150
€ 0.50
34
9420116250
参照: 34
A
PIN SPLIT,1.6
9420116250
€ 1.00
35
9420120180
参照: 35
A
PIN,SPLIT, 2.0
9420120180
€ 1.00
35
9420120200
参照: 35
A
PIN COTTER 2.0MM
9420120200
€ 1.00
35
9420120220
参照: 35
A
PIN,SPLIT, 2.0
9420120220
€ 1.00
35
9420120250
参照: 35
A
PIN,SPLIT, 2.0
9420120250
€ 1.00
35
9420120280
参照: 35
A
PIN,SPLIT, 2.0
9420120280
€ 1.00
35
9420120320
参照: 35
A
PIN COTTER 2.0MM
€ 1.00
35
9420120350
参照: 35
A
PIN COTTER 2.0MM
9420120350
€ 1.00
35
9420129220
参照: 35
A
PIN SPLIT 2,0 X 22
€ 1.00
36
9420130250
参照: 36
A
PIN,SPLIT,3X25
9420130250
€ 1.00
36
9420130300
参照: 36
A
PIN COTTER 3.0MM
9420130300
€ 1.00
36
9420130400
参照: 36
A
PIN COTTER 3.0MM
9420130400
€ 1.50
36
9420130450
参照: 36
A
PIN,C0TTER 30X45
9420130450
€ 1.00
37
9501161000
参照: 37
A
RUBBER A,STAND
9501161000
€ 1.50
38
9501471801
参照: 38
A
SPRING A,MAIN
9501471801
€ 6.50
38
9501471802
参照: 38
A
SPRING A,MAIN
9501471802
€ 6.50
40
9501473100
参照: 40
A
SPG.A,BRAKE ROD
9501473100
€ 1.50
40
9501473300
参照: 40
A
SPRING,BRAKE ROD
9501473300
€ 1.50
41
9501532000
参照: 41
A
JOINT, BRAKE ARM
9501532000
€ 1.50
41
9501532001
参照: 41
A
JOINT, BRAKE ARM
9501532001
€ 1.50
42
9501551000
参照: 42
A
PIN A,JOINT
9501551000
€ 1.00
43
9501562000
参照: 43
A
BAR,PILLION
9501562000
€ 21.50
44
9501582000
参照: 44
A
PIN,PILLION STEP
9501582000
€ 4.00
45
9501591000
参照: 45
A
WASHER,PILLION
9501591000
€ 2.00
