CYLINDER HEAD

TRX200D FOURTRAX 1991 (M) CANADA

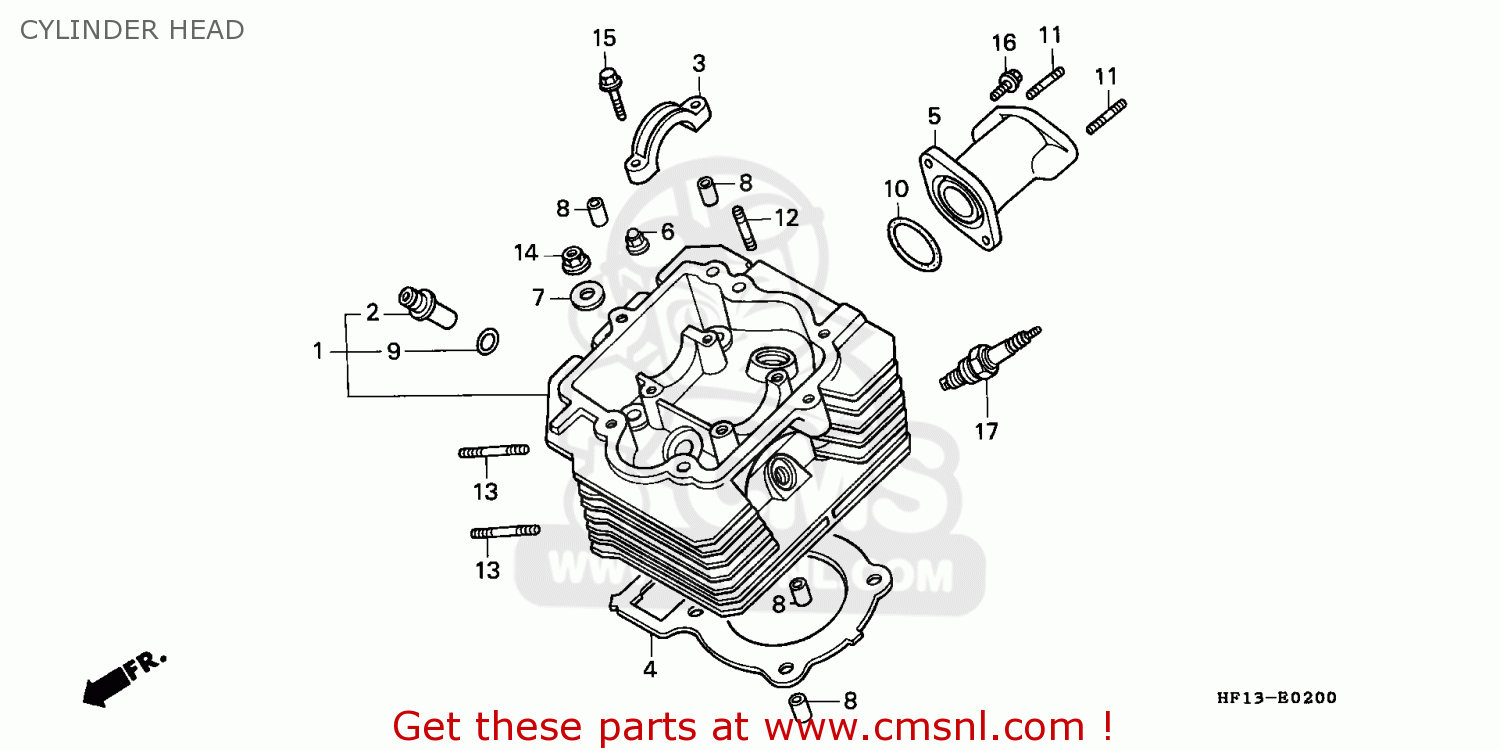

Cylinder head スキーマ TRX200D FOURTRAX 1991 (M) CANADA

CYLINDER HEAD TRX200D FOURTRAX 1991 (M) CANADA
CYLINDER HEAD TRX200D FOURTRAX 1991 (M) CANADA
価格は EUR 単位です
参照
パーツ番号
説明
量
1
12200HB7670
参照: 1
HEAD COMP.,CYLIND
€ 584.50
2
12204HB3305
参照: 2
GUIDE,VALVE
€ 8.50
3
12211HB3000
参照: 3
HOLDER CAM
12211HB3000
€ 11.00
4
12251HB3003
参照: 4
GASKET,CYLINDER H (NAS)
12251HB3003
€ 14.00
4
12252HB3305
参照: 4
GASKET,CYLINDER H (NAS)
12252HB3305
€ 13.00
5
16210HF1670
参照: 5
INSULATOR,CARB
16210HF1670
€ 67.00
6
90303HB3840
参照: 6
NUT,FLANGE CAP,6M
€ 2.00
7
90465MC4000
参照: 7
WASHER,8MM
90465MC4000
€ 4.00
8
90703HC4000
参照: 8
PIN,DOWEL,10X14
€ 2.00
9
91301200000
参照: 9
O RING,10X1.6
91301200000
€ 2.00
10
91304HB3003
参照: 10
O-RING,33.5X3.0
91304HB3003
€ 5.00
11
92712060280B
参照: 11
BOLT,STUD,6X28
92712060280B
€ 1.00
12
92900060200B
参照: 12
BOLT,STUD,2.6X20
92900060200B
€ 1.00
13
92900060203B
参照: 13
BOLT,STUD,2.6X22
92900060203B
€ 1.00
15
958010602200
参照: 15
BOLT FLANGE 6X22
€ 1.50
16
960010601800
参照: 16
BOLT,FLANGE,SH 6X18
960010601800
€ 1.50
17
9806938716
参照: 17
SPARK PLUG
€ 9.50
17
9806958726
参照: 17
PLUG,SPARK
9806958726
€ 9.50
17
9806957716
参照: 17
SPARKPLUG (DR7ES)
9806957716
€ 9.50
17
9806957726
参照: 17
PLUG,SPARK (X22ES
9806957726
€ 9.50
