BOTTOM COWLING

SX150/SX200TXRA 2002

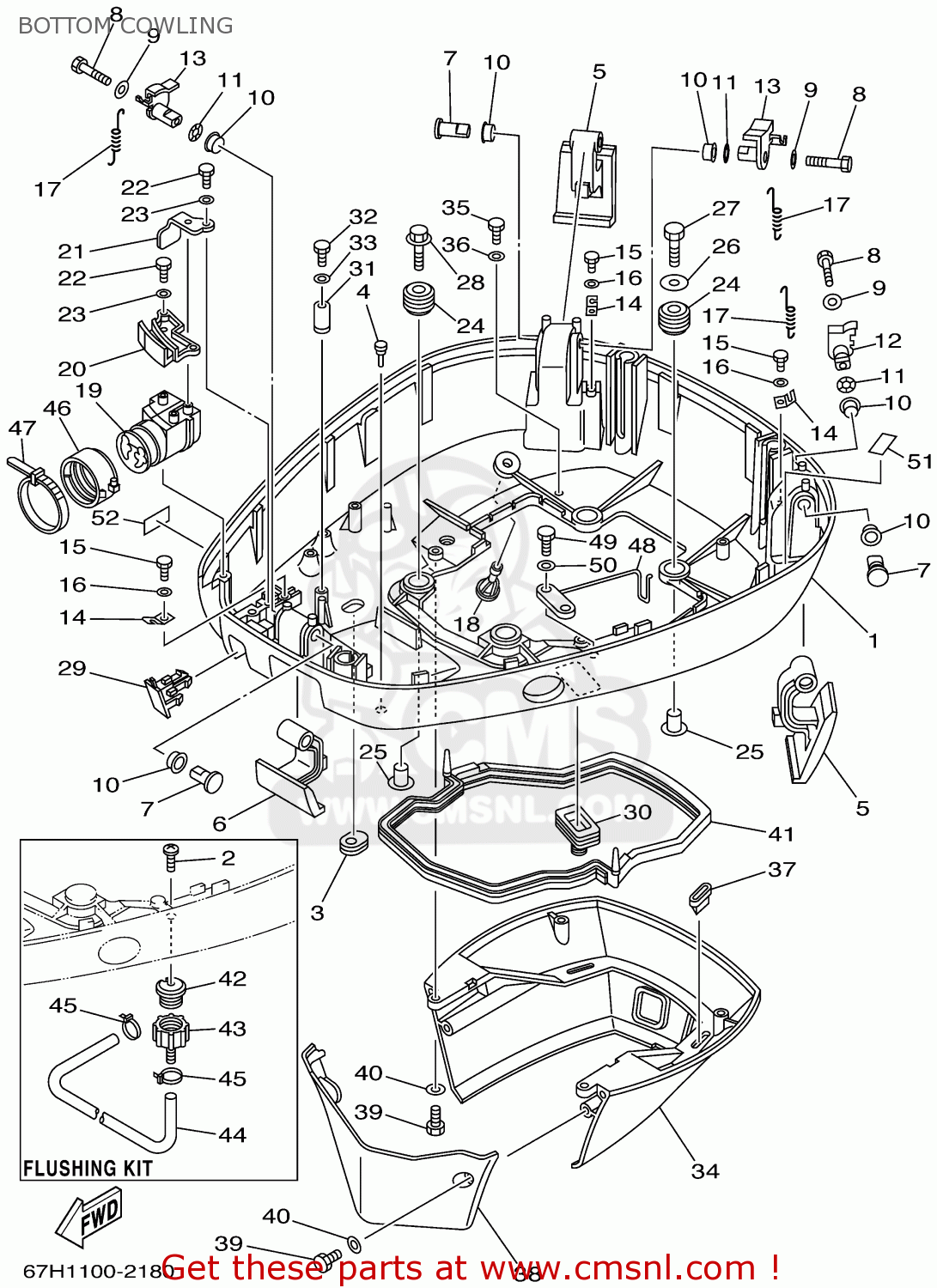

Bottom cowling diagramma SX150/SX200TXRA 2002

BOTTOM COWLING SX150/SX200TXRA 2002
BOTTOM COWLING SX150/SX200TXRA 2002
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
64D42711018D
rif: 1
COWLING, BOTTOM
€ 954.50
2
9016905M00
rif: 2
FLUSHING KIT
SCREW TRUSS HEAD TAPPING
9016905M00
€ 3.00
3
61A4272700
rif: 3
GROMMET
€ 5.00
4
6H44274800
rif: 4
GROMMET
€ 1.50
5
64D42815004D
rif: 5
LEVER, CLAMP
€ 119.00
6
64D42816004D
rif: 6
LEVER, CLAMP
€ 44.50
7
64D4283500
rif: 7
PIN, SET1
€ 27.00
8
9709506040
rif: 8
BOLT (682)
9709506040
€ 2.00
9
9020106068
rif: 9
WASHER, PLATE 6202457600
€ 2.50
10
9038615M73
rif: 10
BUSH(6L2)
€ 5.50
11
9020615M18
rif: 11
WASHER, WAVE(6L2)
9020615M18
€ 4.50
12
64D4281820
rif: 12
LEVER, CLAMP
€ 73.50
13
64D4281830
rif: 13
LEVER, CLAMP
€ 73.50
14
64D4314400
rif: 14
HOOK, SPRING
€ 4.00
15
9709006012
rif: 15
BOLT(61K)
€ 2.00
16
9299006600
rif: 16
WASHER, PLAIN (646)
9299006600
€ 1.00
17
9050616M34
rif: 17
SPRING, TENSION(64D)
€ 5.00
18
6E54439100
rif: 18
NIPPLE, HOSE
6E54439100
€ 17.00
19
64D4272530
rif: 19
GROMMET
€ 57.50
20
64D42738005B
rif: 20
PLATE, FITTING
€ 16.50
21
64D42738105B
rif: 21
PLATE, FITTING
€ 16.50
22
9709506016
rif: 22
BOLT(GA1)
9709506016
€ 0.50
23
9299506600
rif: 23
WASHER, PLAIN (646)
€ 1.00
24
9048022M15
rif: 24
GROMMET (6E5)
9048022M15
€ 14.50
25
9038708M37
rif: 25
COLLER (6E5)
9038708M37
€ 3.00
26
9020108M54
rif: 26
WASHER, PLATE (6E5)
9020108M54
€ 4.50
27
9707508035
rif: 27
BOLT(64D)
€ 2.00
28
9011908M22
rif: 28
BOLT, WITH WASHER(6E5)
9011908M22
€ 3.50
29
67H4272300
rif: 29
COVER, BOTTOM
€ 49.00
30
6884272610
rif: 30
GROMMET
6884272610
€ 6.00
31
6E58258800
rif: 31
PLATE
€ 38.50
32
9709506020
rif: 32
BOLT(6N6)
€ 1.50
33
9299506600
rif: 33
WASHER, PLAIN (646)
€ 1.00
34
6R342741028D
rif: 34
APRON
€ 323.50
35
9709506020
rif: 35
BOLT(6N6)
€ 1.50
36
9299506600
rif: 36
WASHER, PLAIN (646)
€ 1.00
37
64D4271700
rif: 37
RUBBER, SEAL 2
€ 9.00
38
6R342771018D
rif: 38
APRON
€ 106.00
39
9709506020
rif: 39
BOLT(6N6)
€ 1.50
40
9299506600
rif: 40
WASHER, PLAIN (646)
€ 1.00
41
6E54271610
rif: 41
RUBBER, SEAL 1
€ 83.00
42
6R31257200
rif: 42
FLUSHING KIT
ADAPTER
€ 8.00
43
6R31258000
rif: 43
FLUSHING KIT
JOINT ASSY
6R31258000
€ 14.50
44
9044511M35
rif: 44
FLUSHING KIT
HOSE (L540)
€ 16.00
45
9046511M10
rif: 45
FLUSHING KIT
CLAMP (6E5)
9046511M10
€ 0.50
46
68F4275300
rif: 46
FASTNER
68F4275300
€ 18.00
47
9046420258
rif: 47
CLAMP
€ 4.50
48
6K78258800
rif: 48
PLATE
€ 46.00
49
9709506020
rif: 49
BOLT(6N6)
€ 1.50
50
9299506600
rif: 50
WASHER, PLAIN (646)
€ 1.00
51
6E74279110
rif: 51
UR SX150
MARK 1
€ 1.00
51
6G54279110
rif: 51
UR SX200
MARK 1
€ 0.50
52
65L2415E40
rif: 52
LABEL, CAUTION
€ 50.50
