C.D.I. MAGNETO

ET340C 1979

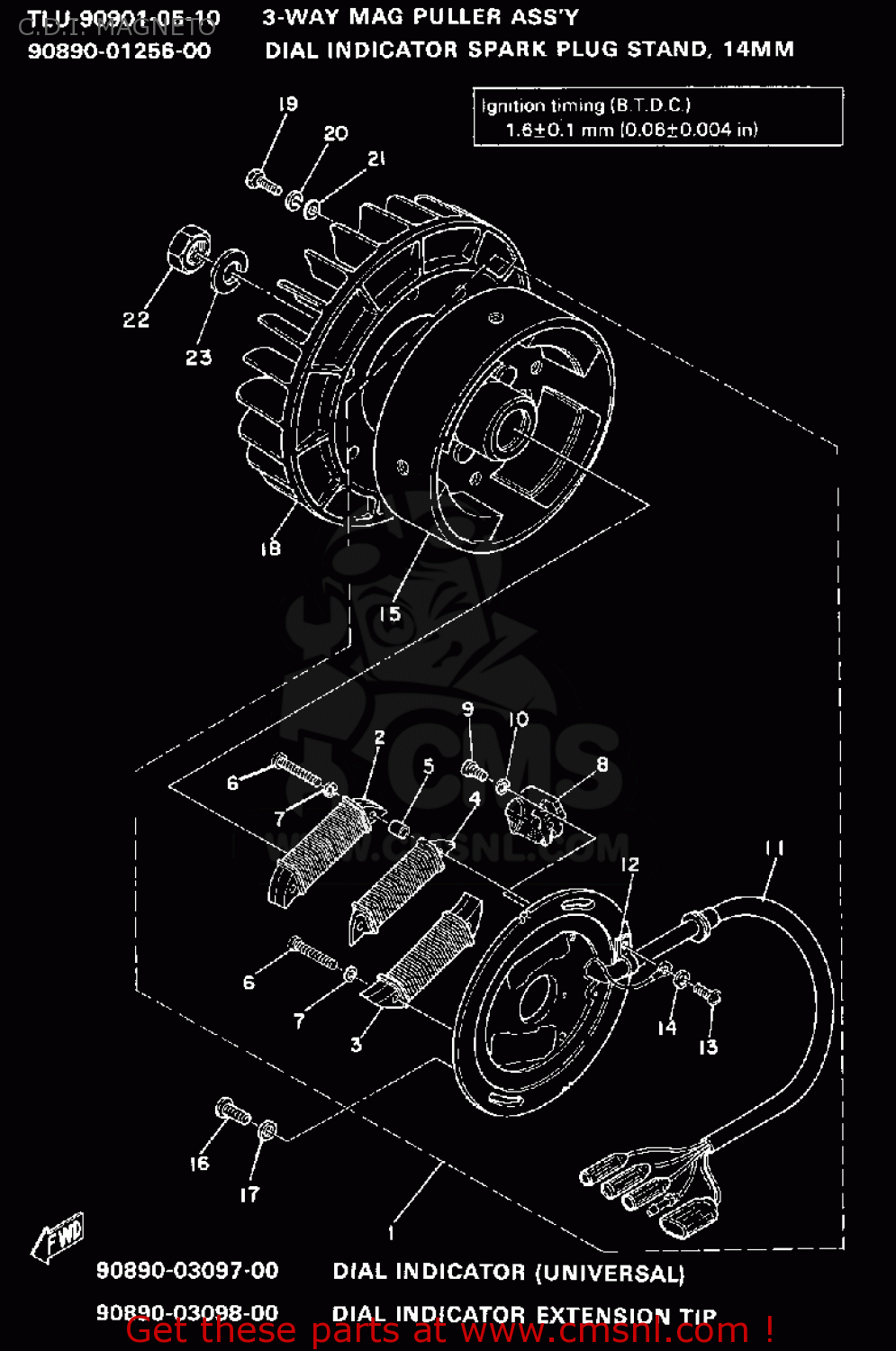

C.d.i. magneto diagramma ET340C 1979

C.D.I. MAGNETO ET340C 1979
C.D.I. MAGNETO ET340C 1979
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
8J68550020
rif: 1
CDI MAGNETO ASY
€ 491.50
2
8H48551120
rif: 2
COIL, SOURCE
€ 157.00
3
8G88551320
rif: 3
COIL, LIGHTING
€ 86.50
4
8H58554120
rif: 4
COIL, CHARGE 2
8H58554120
€ 100.50
5
8G88551920
rif: 5
BUSHING
€ 0.00
6
9850105035
rif: 6
SCREW, PAN HEAD
9850105035
€ 1.00
7
9299005100
rif: 7
YBS67-5 WASHER, SPRING
9299005100
€ 1.00
8
8H48558020
rif: 8
PULSER ASSY
€ 134.50
9
9850604018
rif: 9
SCREW, PANHEAD
9850604018
€ 1.00
10
9290104100
rif: 10
WASHER, SPRING
9290104100
€ 1.00
11
8G88551520
rif: 11
LEAD WIRE ASY
€ 0.00
12
1048132820
rif: 12
CLAMP, LEAD
1048132820
€ 3.50
13
9858004008
rif: 13
SCREW, PAN HEAD (713)
9858004008
€ 1.50
14
9290104100
rif: 14
WASHER, SPRING
9290104100
€ 1.00
15
8H58555020
rif: 15
ROTOR ASY
€ 0.00
16
9898006016
rif: 16
SCREW, BIND (705)
9898006016
€ 4.00
17
9020106043
rif: 17
WASHER, PLATE 6261117600
9020106043
€ 3.00
18
8G81261101
rif: 18
FAN
8G81261101
€ 80.00
19
9701106016
rif: 19
BOLT(3AP)
9701106016
€ 0.50
20
9299506100
rif: 20
WASHER(6A1)
9299506100
€ 0.50
21
9290106600
rif: 21
WASHER(526)
9290106600
€ 1.50
22
9017016182
rif: 22
NUT (8A0 CRANK)
9017016182
€ 3.50
23
9290116100
rif: 23
WASHER, SPRING
9290116100
€ 8.50
