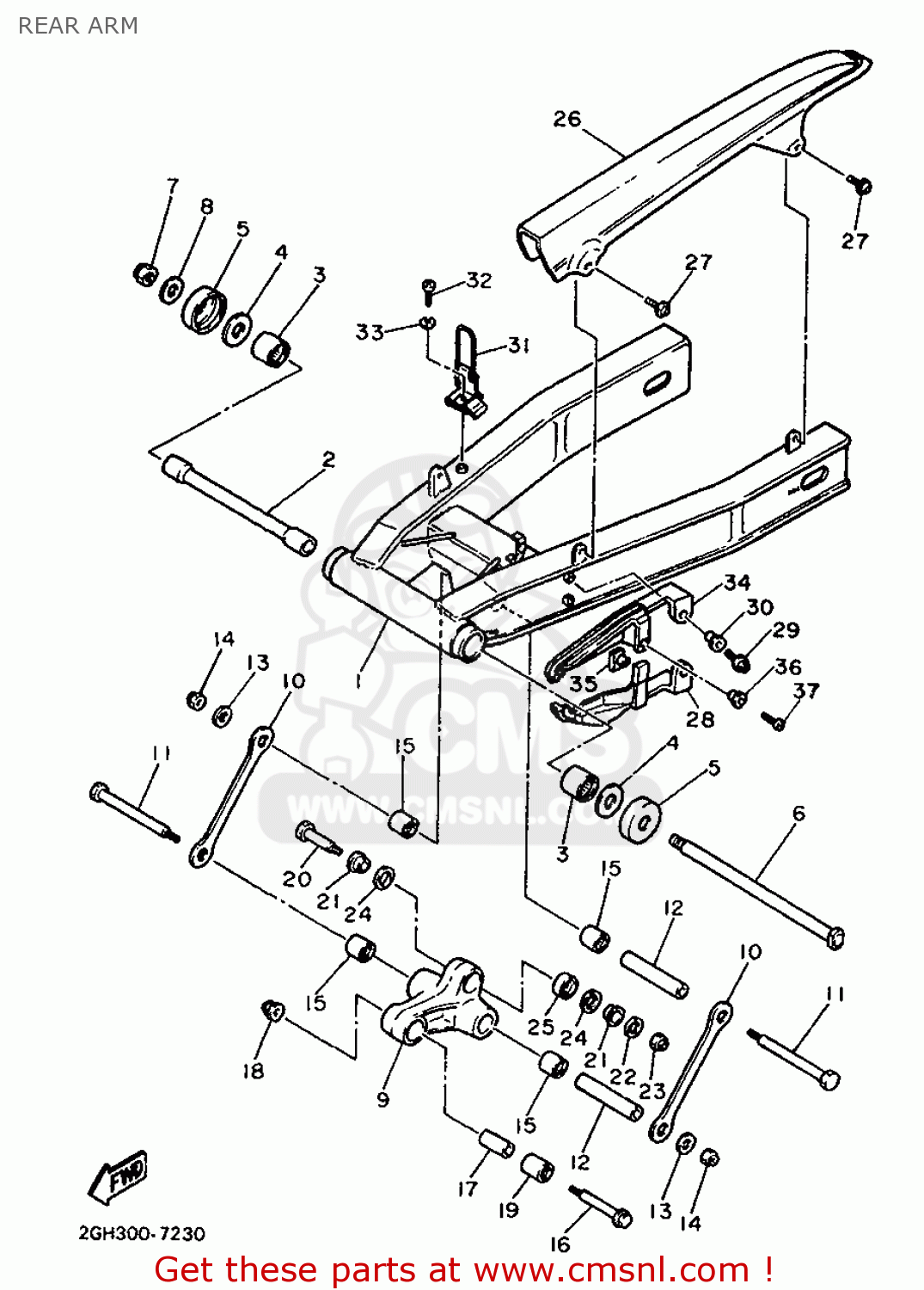

REAR ARM

rif

parte #

descrizione

quantità

01

2GH2211000
rif: 01

REAR ARM COMP.

€ 1,158.50

02

36Y2218400
rif: 02

BUSH

€ 75.00

03

9331742550
rif: 03

BEARING, CYLINDRICAL(36Y)

€ 41.50

04

36Y2212700
rif: 04

SHIM

€ 7.00

05

36Y2212800
rif: 05

COVER, THRUST 1

€ 15.50

06

2GH2214100
rif: 06

SHAFT, PIVOT

€ 33.00

07

9018514070
rif: 07

NUT, SELF-LOCKING (1J7)

€ 28.50

08

9020114222
rif: 08

WASHER PLATE 835176580000

€ 4.50

09

2KT2217A00
rif: 09

ARM, RELAY

€ 129.00

10

1WG2217M00
rif: 10

ARM 1

€ 13.50

11

9010112673
rif: 11

BOLT(2GH)

€ 9.50

12

90387126T1
rif: 12

COLLAR(2GH)

€ 24.00

13

90201126A7
rif: 13

WASHER, PLATE (4N0)

€ 2.50

14

9561112100
rif: 14

NUT U

€ 6.00

15

9331741761
rif: 15

BEARING, CYLINDRICAL(2GH)

€ 40.50

16

9010510454
rif: 16

BOLT, WASHER BASED(2GH)

€ 6.50

17

90387100T8
rif: 17

COLLAR(2MF)

€ 24.00

18

9560110200
rif: 18

NUT, SELF-LOCKING(J17)

€ 10.00

19

9331742060
rif: 19

BEARING, CYLINDRICAL(2GH)

€ 43.00

20

9010110659
rif: 20

BOLT(1WG)

€ 9.50

21

90387124L0
rif: 21

COLLAR(47X)

€ 15.00

22

9020110437
rif: 22

WASHER, PLATE (447)

€ 2.00

23

9561110100
rif: 23

NUT, U (1J7)

€ 6.00

24

9310116131
rif: 24

OIL SEAL(47X)

€ 6.00

25

9339999919
rif: 25

BEARING(47X)

€ 71.00

26

2GH2231100
rif: 26

CASE, CHAIN

€ 31.50

27

9015906084
rif: 27

SCREW, WITH WASHER (29K)

€ 1.00

28

2GH2215120
rif: 28

SEAL, GUARD

€ 107.50

29

9015906108
rif: 29

SCREW, WITH WASHER(8V8)

€ 1.00

30

9038706704
rif: 30

COLLAR (796)

€ 4.00

31

2GH2587550
rif: 31

HOLDER, BRAKE HOSE 1

€ 9.00

32

9250106020
rif: 32

SCREW, PAN HEAD

€ 2.50

33

9299006100
rif: 33

WASHER,SPRING

€ 0.50

34

2GH2215220
rif: 34

SEAL, GUARD

€ 98.50

35

31A1447700
rif: 35

PLATE

€ 3.00

36

9056006244
rif: 36

SPACER (25G)

€ 2.50

37

9250606012
rif: 37

SCREW,PAN HEAD

€ 1.00
