CLUTCH

FR50 1981 (X) (E01 E02 E06 E13 E24)

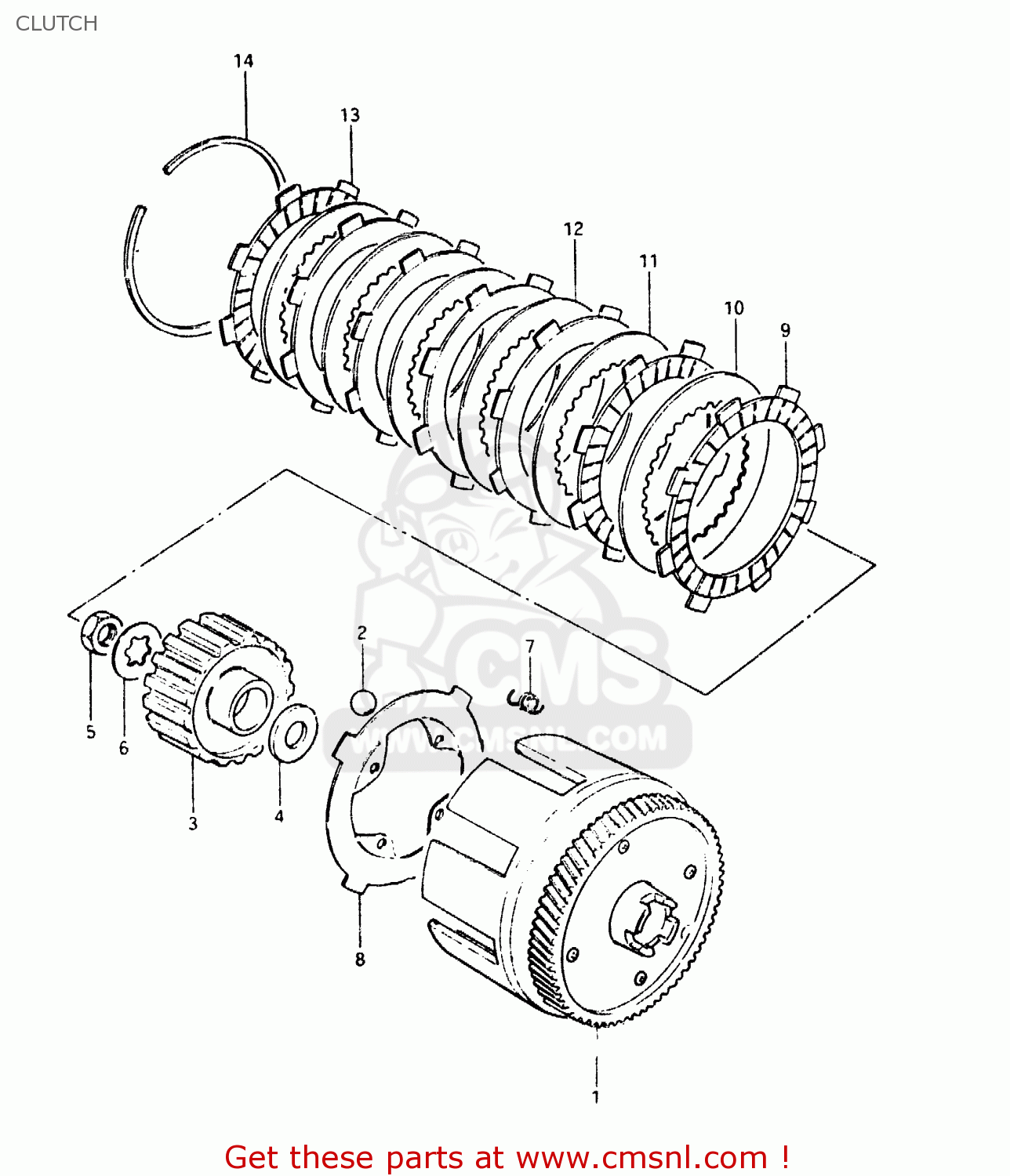

Clutch diagramma FR50 1981 (X) (E01 E02 E06 E13 E24)

CLUTCH FR50 1981 (X) (E01 E02 E06 E13 E24)
CLUTCH FR50 1981 (X) (E01 E02 E06 E13 E24)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
2120035005
rif: 1
GEAR ASSY,PRI DRIVEN(NT:71)
€ 0.00
2
0611221004
rif: 2
BALL
€ 0.00
3
2141135000
rif: 3
HUB, SLEEVE
2141135000
€ 49.50
4
0821117282
rif: 4
WASHER
0821117282
€ 2.50
5
0914016001
rif: 5
NUT
0914016001
€ 4.50
6
0916717002
rif: 6
WASHER,LOCK
0916717002
€ 1.50
7
0944308014
rif: 7
SPRING
0944308014
€ 5.00
8
2146535001
rif: 8
PLATE,CLUTCH INNER
€ 0.00
9
2144119001
rif: 9
PLATE, DRIVE (T:3) (MCA)
2144119001
€ 10.50
10
2145119001
rif: 10
PLATE,CLUTCH DRIVEN(T:1.6)
€ 0.00
11
2145219000
rif: 11
PLATE, ADJUSTER (T:1.2)
€ 0.00
12
2145319000
rif: 12
4PLATE,CLUTCH DRIVEN(T:1.4)
€ 0.00
13
2144319000
rif: 13
PLATE,CLUTCH DRIVE OUTER
€ 0.00
14
0938100003
rif: 14
CIRCLIP
€ 0.00
