FRONT BEVEL GEAR

VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

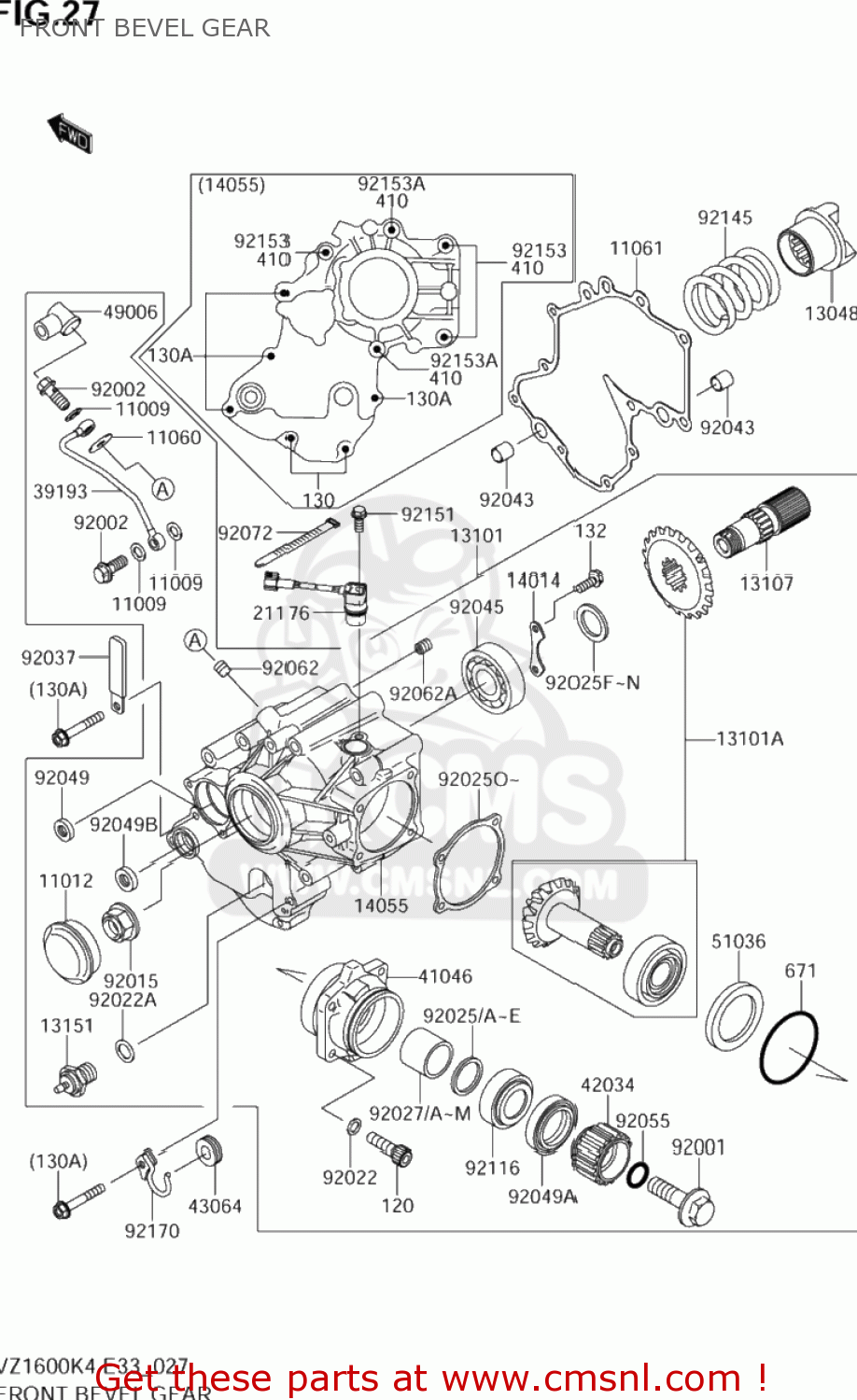

Front bevel gear diagramma VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)

FRONT BEVEL GEAR VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
FRONT BEVEL GEAR VZ1600 BOULEVARD M95 2005 (K5) CALIFORNIA (E33)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
120
KK120S0830
rif: 120
K120C-B0830
BOLT-SOCKET,8X30,BLACK
KK120S0830
€ 1.50
130
KK130S0630
rif: 130
BOLT-FLANGED
€ 1.50
130A
KK130S0640
rif: 130A
BOLT-FLANGED
€ 2.00
132
KK132G0616
rif: 132
K132B-A0616
BOLT FLANGED S
KK132G0616
€ 1.00
410
KK410B0800
rif: 410
K410A-A0800
WASHER PLAIN S
€ 1.50
671
KK671B2565
rif: 671
O RING,65MM
KK671B2565
€ 4.50
11009
K110091344
rif: 11009
GASKET,OIL PIPE,8.2X14X1.0 (NAS)
K110091344
€ 5.50
11012
K110121071
rif: 11012
CAP
€ 17.50
11060
K110601872
rif: 11060
GASKET,OIL PIP (NAS)
€ 2.50
11061
K110610046
rif: 11061
GASKET,BEVEL GEAR CASE (NAS)
€ 18.50
13048
K130481085
rif: 13048
CAM-DAMPER
€ 44.50
13101
K131010020
rif: 13101
GEAR-ASSY
€ 1,786.00
13101A
K131015088
rif: 13101A
GEAR-ASSY,BEVE
€ 717.00
13107
K131071525
rif: 13107
SHAFT,BEVEL,FR
€ 107.00
13151
K131511010
rif: 13151
SWITCH-COMP
€ 15.00
14014
K140141136
rif: 14014
PLATE-POSITION
€ 3.50
14055
K140550006
rif: 14055
CASE-GEAR,FRON
€ 504.00
21176
K211760030
rif: 21176
K2117-60037
SENSOR,SPEED
€ 86.00
39193
K391931026
rif: 39193
PIPE-OIL
€ 27.00
41046
K410461099
rif: 41046
HOUSING-BEARING
€ 86.50
42034
K420341091
rif: 42034
COUPLING,FR DR
€ 74.50
43064
KK43064006
rif: 43064
GROMMET,HOSE CLAMP
€ 3.50
49006
K490061040
rif: 49006
BOOT,DUST
€ 8.00
51036
K510361002
rif: 51036
CUP
€ 5.00
92001
K920011169
rif: 92001
BOLT,FLANGED,12X42
€ 16.50
92002
K920021429
rif: 92002
BOLT,8X20
€ 7.50
92015
K920151554
rif: 92015
NUT,24MM
€ 17.50
92022
K920221028
rif: 92022
WASHER,8.5X13X1
€ 2.50
92022A
K920221211
rif: 92022A
WASHER
€ 3.50
92025
K920251072
rif: 92025
SHIM,25.2X29.8X1.70
€ 7.50
92025A
K920251073
rif: 92025A
SHIM,25.2X29.8X1.72
€ 7.50
92025B
K920251074
rif: 92025B
SHIM,25.2X29.8X1.74
€ 7.50
92025C
K920251075
rif: 92025C
SHIM,25.2X29.8X1.76
€ 7.50
92025D
K920251076
rif: 92025D
SHIM,25.2X29.8X1.78
€ 7.50
92025E
K920251077
rif: 92025E
SHIM,25.2X29.8X1.80
€ 7.50
92025F
K920251688
rif: 92025F
SHIM,25.3X36X0.15
€ 5.50
92025G
K920251689
rif: 92025G
SHIM,25.3X36X0.50
€ 5.50
92025H
K920251690
rif: 92025H
SHIM,25.3X36X0.60
€ 5.50
92025I
K920251691
rif: 92025I
SHIM,25.3X36X0.70
€ 5.50
92025J
K920251692
rif: 92025J
SHIM,25.3X36X0.80
€ 5.50
92025K
K920251693
rif: 92025K
SHIM,25.3X36X0.90
€ 5.50
92025L
K920251694
rif: 92025L
SHIM,25.3X36X1.00
€ 5.50
92025M
K920251695
rif: 92025M
SHIM,25.3X36X1.10
€ 5.50
92025N
K920251696
rif: 92025N
SHIM,25.3X36X1.20
€ 5.50
92025O
K920251818
rif: 92025O
SHIM,T=0.15
€ 7.00
92025P
K920251819
rif: 92025P
SHIM,T=0.50
€ 7.00
92025Q
K920251820
rif: 92025Q
SHIM,T=0.60
€ 7.00
92025R
K920251821
rif: 92025R
SHIM,T=0.70
€ 7.00
92025S
K920251822
rif: 92025S
SHIM,T=0.80
€ 7.00
92025T
K920251823
rif: 92025T
SHIM,T=0.90
€ 7.00
92025U
K920251824
rif: 92025U
SHIM,T=1.00
€ 7.00
92025V
K920251825
rif: 92025V
SHIM,T=1.20
€ 7.00
92025W
K920251826
rif: 92025W
SHIM,T=0.10
€ 7.00
92027
K920271152
rif: 92027
COLLAR,25.2X29.8X22.8
€ 12.00
92027A
K920271153
rif: 92027A
COLLAR,25.2X29.8X22.9
€ 12.50
92027B
K920271154
rif: 92027B
COLLAR,25.2X29.8X23
€ 12.00
92027C
K920271155
rif: 92027C
COLLAR,25.2X29.8X23.1
€ 13.00
92027D
K920271156
rif: 92027D
COLLAR,25.2X29.8X23.2
€ 12.00
92027E
K920271157
rif: 92027E
COLLAR,25.2X29.8X23.3
€ 12.00
92027F
K920271158
rif: 92027F
COLLAR,25.2X29.8X23.4
€ 12.00
92027G
K920271159
rif: 92027G
COLLAR,25.2X29.8X23.5
€ 12.50
92027H
K920271160
rif: 92027H
COLLAR,25.2X29.8X23.6
€ 12.00
92027I
K920271161
rif: 92027I
COLLAR,25.2X29.8X23.7
€ 12.50
92027J
K920271162
rif: 92027J
COLLAR,25.2X29.8X23.8
€ 12.00
92027K
K920271163
rif: 92027K
COLLAR,25.2X29.8X23.9
€ 12.50
92027L
K920271164
rif: 92027L
COLLAR,25.2X29.8X24
€ 12.00
92027M
K920271165
rif: 92027M
COLLAR,25.2X29.8X24.1
€ 12.00
92037
K920371069
rif: 92037
CLAMP,L=60
€ 4.00
92043
K920431279
rif: 92043
PIN,11.5X14X14
€ 3.50
92045
K920451165
rif: 92045
BEARING-BALL,6305C2
€ 26.00
92049
K920491017
rif: 92049
SEAL-OIL,SD-8187
€ 5.00
92049A
K920491038
rif: 92049A
SEAL-OIL,TC35527
€ 9.50
92049B
K920491519
rif: 92049B
SEAL-OIL,TC13225.5
€ 10.50
92055
K920551044
rif: 92055
RING-O,ID=18.64
K920551044
€ 3.00
92062
K920621078
rif: 92062
NOZZLE,6X8,GREEN
€ 3.50
92062A
K920621083
rif: 92062A
NOZZLE,10X10,SILVER
€ 4.50
92072
K920721195
rif: 92072
BAND,L=202
€ 5.00
92116
K921161062
rif: 92116
BEARING-ROLLER,HI-CAP30205
€ 18.50
92145
K921451102
rif: 92145
SPRING,CAM DAMPER
€ 38.50
92151
K921511755
rif: 92151
BOLT
€ 2.00
92153
K921530433
rif: 92153
BOLT,8X80
€ 4.50
92153A
K921530434
rif: 92153A
BOLT,8X95
€ 2.50
92170
K921701732
rif: 92170
CLAMP
€ 8.50
