FUEL TANK (MODEL L/M)

VS750GLEP 1987 (H) (E02)

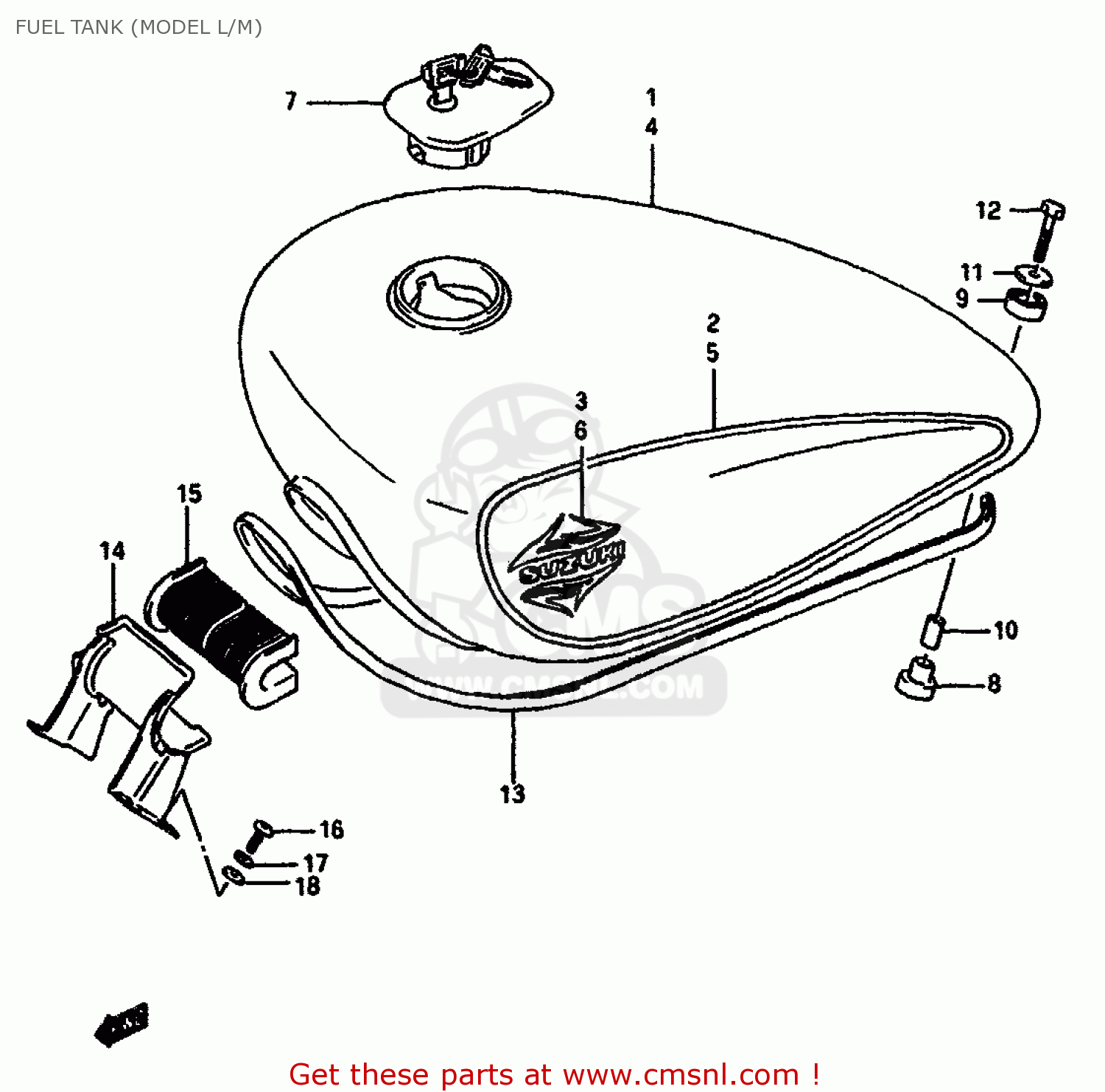

Fuel tank (model l/m) diagramma VS750GLEP 1987 (H) (E02)

FUEL TANK (MODEL L/M) VS750GLEP 1987 (H) (E02)
FUEL TANK (MODEL L/M) VS750GLEP 1987 (H) (E02)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
4410038A6020U
rif: 1-1
MODEL L
TANK ASSEMBLY,FUEL
€ 800.00
1-2
4410038A6033J
rif: 1-2
MODEL L
TANK ASSEMBLY,FUEL
€ 933.50
1-3
4410038A7020U
rif: 1-3
MODEL L E22
TANK ASSEMBLY,FUEL
€ 800.00
1-4
4410038A7033J
rif: 1-4
MODEL L E22
TANK ASSEMBLY,FUEL
€ 933.50
2-1
6811038A103WH
rif: 2-1
MODEL L FOR 20U
TAPE SET,FUEL TANK
€ 78.50
2-2
6811038A103WJ
rif: 2-2
MDOEL L FOR 33J
TAPE SET,FUEL TANK
€ 75.50
3-1
6811138A200PD
rif: 3-1
MODEL L FOR 20U
EMBLEM
€ 39.00
3-2
6811138A200PE
rif: 3-2
MODEL L FOR 33J
EMBLEM
6811138A200PE
€ 33.00
4-1
4410038A9014W
rif: 4-1
MODEL M
TANK ASSEMBLY,FUEL
€ 405.00
4-2
4410038A9019A
rif: 4-2
MODEL M
TANK ASSEMBLY,FUEL
€ 869.00
4-3
4410039A0014W
rif: 4-3
MODEL M E22
TANK ASSEMBLY,FUEL
€ 405.00
4-4
4410039A0019A
rif: 4-4
MODEL M E22
TANK ASSEMBLY,FUEL
€ 869.00
5-1
6811038A10F63
rif: 5-1
MODEL M FOR 14W
TAPE SET,FUEL TANK
€ 85.00
5-2
6811038A10F64
rif: 5-2
MODEL M FOR 19A
TAPE SET,FUEL TANK
€ 97.50
6-1
6811138A300YR
rif: 6-1
MODEL M FOR 14W
EMBLEM,FUEL TANK
€ 23.50
6-2
6811138A300YS
rif: 6-2
MODEL M FOR 19A
EMBLEM,FUEL TANK
€ 22.50
7-1
4420038A00KEY
rif: 7-1
MODEL L
CAP SET,FUEL TANK
4420038A00KEY
€ 111.00
7-2
4420038820
rif: 7-2
MODEL M
CAP SET,FUEL TANK
4420038820
€ 111.00
8
0932010020
rif: 8
CUSHION
0932010020
€ 3.00
9
0932014013
rif: 9
CUSHION
0932014013
€ 2.00
10
0918006091
rif: 10
SPACER (6.4X9X21.5)
0918006091
€ 5.00
11
0916006072
rif: 11
WASHER (6.5X24X1.6)
0916006072
€ 2.00
12
0912806055
rif: 12
SCREW
0912806055
€ 2.00
13
6824127A00
rif: 13
MOLDING,FUEL TANK
6824127A00
€ 16.00
14-1
4425038A01019
rif: 14-1
MODEL L
BRACKET,FUEL TANK FR
4425038A01019
€ 44.00
14-2
4425038A0120U
rif: 14-2
MODEL L
BRACKET COMP,FUEL TANK
€ 44.00
14-3
4425038A0114W
rif: 14-3
MODEL M
BRACKET COMP,FUEL TANK
€ 44.00
14-4
4425038A0119A
rif: 14-4
MODEL M
BRACKET COMP,FUEL TANK
€ 44.00
15
4451138A01
rif: 15
CUSHION,FUEL TANK FR
4451138A01
€ 10.00
16
0214206164
rif: 16
SCREW
0214206164
€ 2.00
17
0832121064
rif: 17
WASHER,LOCK
0832121064
€ 1.50
18
0832221064
rif: 18
WASHER
0832221064
€ 1.50
15
0832121064
rif: 15
WASHER,LOCK
0832121064
€ 1.50
16
0832221064
rif: 16
WASHER
0832221064
€ 1.50
17
8693273060
rif: 17
E24,E75 (AUSTRALIA)
LABEL,FUEL CAUTION
8693273060
€ 4.00
