CAMSHAFT - VALVE

VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

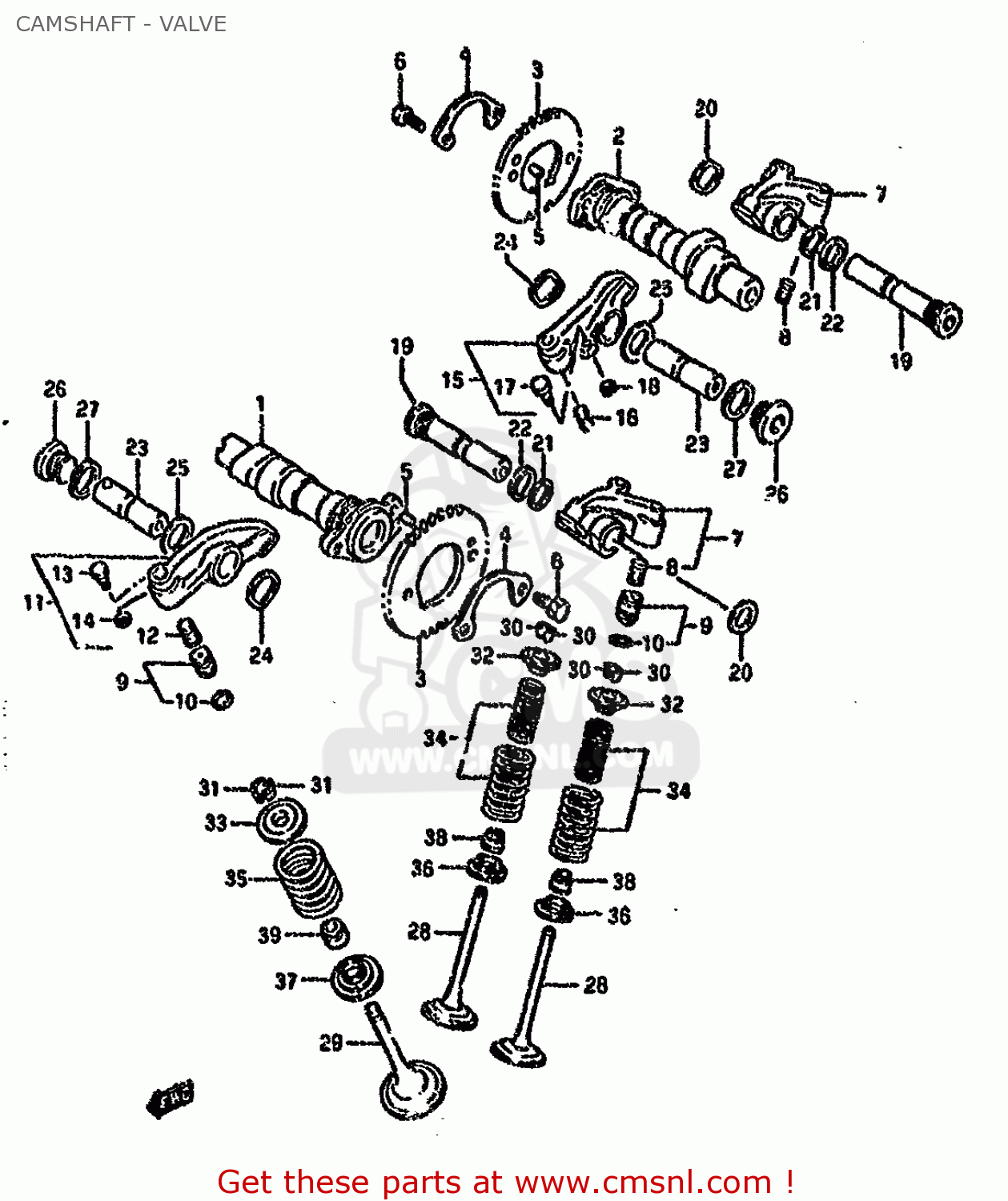

Camshaft - valve diagramma VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

CAMSHAFT - VALVE VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)
CAMSHAFT - VALVE VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
1271138B00
rif: 1
CAMSHAFT,FR
1271138B00
€ 386.00
2
1271338B00
rif: 2
CAMSHAFT,RR
1271338B00
€ 172.50
3
1274138B00
rif: 3
SPROCKET,CAMSHAFT
€ 49.50
4
1274744000
rif: 4
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.50
5
0422105109
rif: 5
PIN
0422105109
€ 1.50
6
0911106027
rif: 6
BOLT(6X12.5)
0911106027
€ 1.50
7
1284038B01
rif: 7
ARM,VALVE ROCKER INTAKE
€ 103.00
8
1286338B00
rif: 8
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.00
9
1286038B00
rif: 9
-12860-388Z0
ADJUSTER,HYDRAULIC VALVE
€ 77.00
10
1286438B00
rif: 10
O-RING,ADJUSTER
1286438B00
€ 7.00
11
1285038B02
rif: 11
ARM,VALVE ROCKER FR EXHAUST
1285038B02
€ 93.50
12
1286338B00
rif: 12
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.00
13
1284438B00
rif: 13
PIN,DECOMP
€ 15.00
14
0833211033
rif: 14
E RING
0833211033
€ 1.50
15
1288038B01
rif: 15
ARM,VALVE ROCKER RR EXHAUST
1288038B01
€ 70.50
16
1286338B00
rif: 16
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.00
17
1284438B00
rif: 17
PIN,DECOMP
€ 15.00
18
0833211033
rif: 18
E RING
0833211033
€ 1.50
19
1286138B00
rif: 19
SHAFT,INTAKE VALVE ROCKER ARM
€ 47.00
20
0916414012
rif: 20
WASHER
0916414012
€ 1.50
21
0821114201
rif: 21
WASHER
€ 2.00
22
0916816003
rif: 22
GASKET(16X22X2) (NAS)
0916816003
€ 1.50
23
1287138B00
rif: 23
SHAFT,EXHAUST VALVE ROCKER ARM
€ 27.00
24
0916416003
rif: 24
WASHER
0916416003
€ 2.50
25
0916016033
rif: 25
WASHER(16X26X1)
0916016033
€ 3.50
26
0924818004
rif: 26
PLUG,18X11
0924818004
€ 9.50
27
0916818003
rif: 27
GASKET(18X24.2X2) (NAS)
0916818003
€ 2.00
28
1291138B00
rif: 28
VALVE,INTAKE
1291138B00
€ 76.50
29
1291238B00
rif: 29
VALVE,EXHAUST
1291238B00
€ 52.00
30
1293224400
rif: 30
COTTER,VALVE
1293224400
€ 1.50
31
1293282000
rif: 31
COTTER,VALVE
1293282000
€ 2.00
32
1293133200
rif: 32
RETAINER,VALVE SPRING
1293133200
€ 5.00
33
1293145000
rif: 33
RETAINER,VALVE SPRING
1293145000
€ 6.00
34
1292006B00
rif: 34
SPRING SET,VALVE
1292006B00
€ 13.00
35
1292244110
rif: 35
SPRING,VALVE OUTER
1292244110
€ 10.50
36-1
1293333200
rif: 36-1
MODEL H/J/K/L/M/N/P
SEAT,VALVE SPRING
€ 4.50
36-2
1293333201
rif: 36-2
MODEL R/S
SEAT,VALVE SPRING
1293333201
€ 4.50
37
1293345001
rif: 37
SEAT,VALVE SPRING
1293345001
€ 5.00
38
0928905015
rif: 38
-09289-05003
SEAL,OIL(5.5X11X8.2)
0928905015
€ 5.00
39
0928907002
rif: 39
SEAL,OIL(7X14.4X9)
0928907002
€ 3.50
