CYLINDER

RM250 1982 (Z) USA (E03)

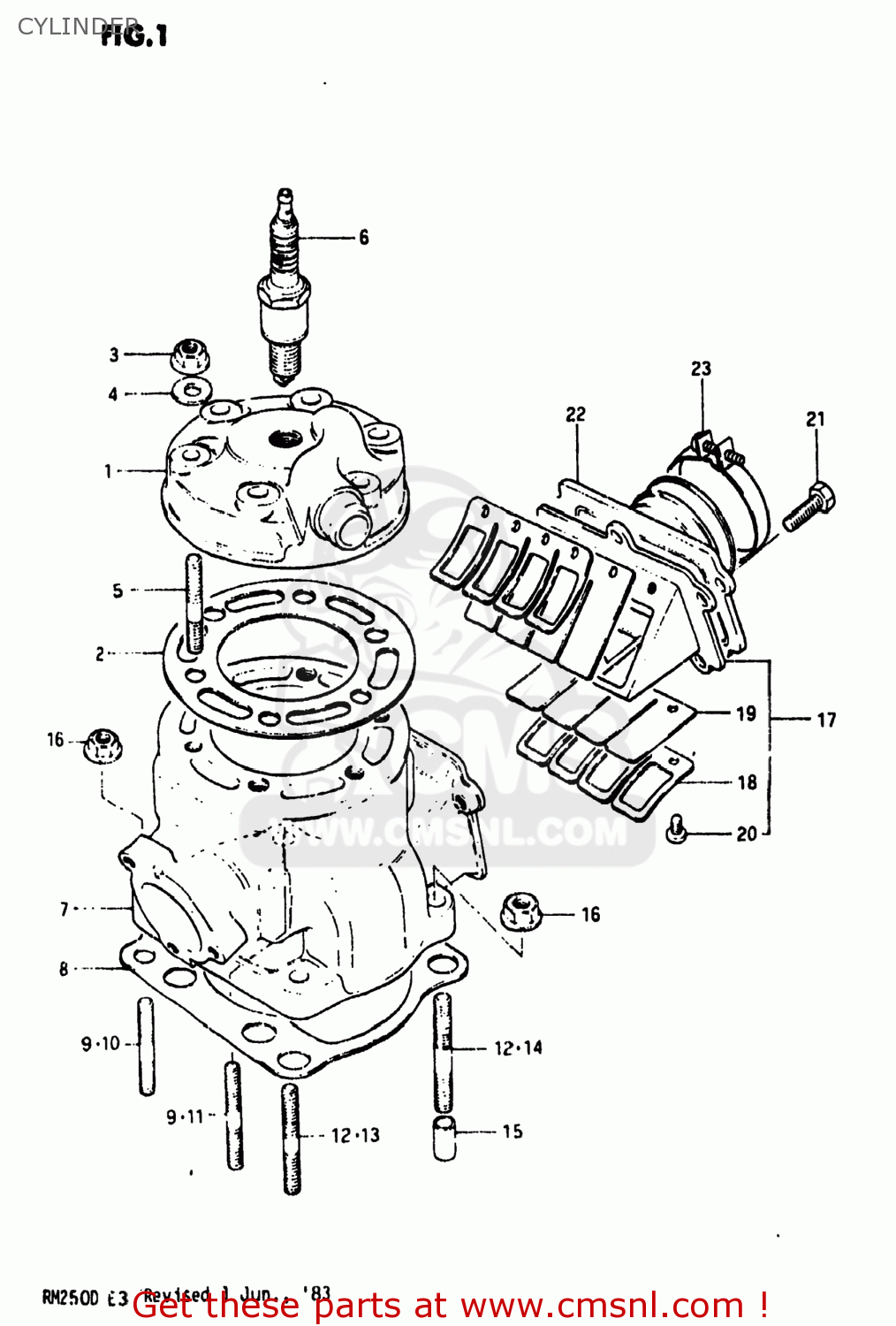

Cylinder diagramma RM250 1982 (Z) USA (E03)

CYLINDER RM250 1982 (Z) USA (E03)
CYLINDER RM250 1982 (Z) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
1111114300
rif: 1-1
HEAD,CYLINDER
1111114300
€ 116.50
1-2
1111114310
rif: 1-2
11111-14601
HEAD,CYLINDER
1111114310
€ 108.00
2-1
1114114391
rif: 2-1
11141-13A60
GASKET,CYLINDER HEAD
€ 37.50
2-2
1114114310
rif: 2-2
11141-13A60
GASKET,CYLINDER HEAD
€ 37.50
3
0831616085
rif: 3
08316-1008B
NUT 8MM
0831616085
€ 2.50
4
0916008053
rif: 4
09160-08039
WASHER (8.5X19X2.3)
0916008053
€ 2.00
5-1
0910808102
rif: 5-1
BOLT,STUD
0910808102
€ 4.00
5-2
0910808105
rif: 5-2
09108-08174
STUD
0910808105
€ 4.00
6
0948200208
rif: 6
PLUG,SPARK(NGK B-8EN)
0948200208
€ 15.00
7-1
1121014301
rif: 7-1
11210-14303
CYLINDER
€ 418.00
7-2
1121014302
rif: 7-2
11210-14303
CYLINDER
€ 418.00
8-1
1124114301
rif: 8-1
11241-14600-H17
GASKET,CYLINDER (MCA)
1124114301
€ 16.00
8-2
1124114302
rif: 8-2
11241-14600-H17
GASKET,CYLINDER (MCA)
€ 16.00
9
0910808127
rif: 9
09108-08142
STUD
€ 2.50
10
0910808142
rif: 10
BOLT,STUD
0910808142
€ 2.50
11
0910808143
rif: 11
BOLT,STUD
0910808143
€ 3.00
12
0910808128
rif: 12
09108-08144
STUD
€ 4.00
13
0910808144
rif: 13
BOLT,STUD
0910808144
€ 4.00
14
0910808145
rif: 14
09108-08174
STUD
€ 4.00
15
0421111169
rif: 15
PIN
0421111169
€ 1.50
16
0831616085
rif: 16
08316-1008B
NUT 8MM
0831616085
€ 2.50
17
1315014200
rif: 17
13150-01C00
VALVE ASSEMBLY,REED
€ 92.00
18
1315214200
rif: 18
13150-01C00
STOPPER,REED VALVE
€ 92.00
19
1315314200
rif: 19
VALVE,REED
1315314200
€ 14.50
20
0211203088
rif: 20
02112-03087
SCREW
€ 1.50
21
0110706208
rif: 21
01500-06207
BOLT
0110706208
€ 1.50
22
1311014300
rif: 22
PIPE,INTAKE
1311014300
€ 40.50
23
0940256306
rif: 23
09402-56901
CLAMP
0940256306
€ 3.50
