CRANK CASE

GS550L 1982 (Z) USA (E03)

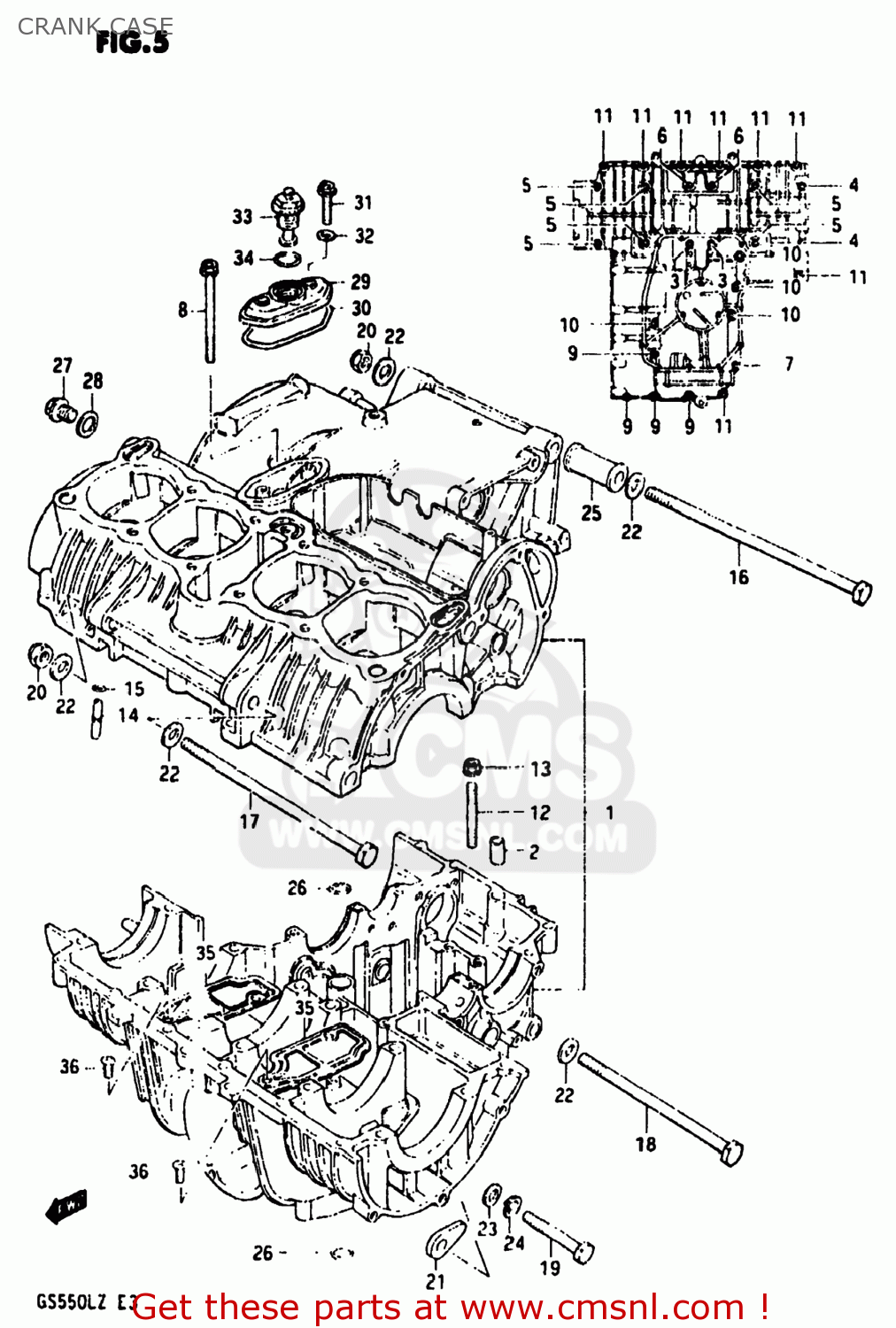

Crank case diagramma GS550L 1982 (Z) USA (E03)

CRANK CASE GS550L 1982 (Z) USA (E03)
CRANK CASE GS550L 1982 (Z) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
1130047812
rif: 1
11300-34880
CRANKCASE SET
€ 1,706.00
2
0920613001
rif: 2
04211-13189
PIN
0920613001
€ 2.00
3
0910308026
rif: 3
09103-08109
BOLT
0910308026
€ 3.50
4
0151708908
rif: 4
01550-08907
BOLT 8X90
€ 3.50
5
0151708708
rif: 5
01550-08707
BOLT (8X70)
€ 2.00
6
0151708558
rif: 6
01550-08557
BOLT 8X55
0151708558
€ 3.00
7
0151708458
rif: 7
01550-08457
BOLT (8X45)
€ 3.00
8
0151706908
rif: 8
01550-06907
BOLT (6X90)
€ 2.00
9
0151706608
rif: 9
01550-06607
BOLT (6X60)
€ 2.00
10
0151706508
rif: 10
01550-06507
BOLT ,6X50
€ 2.00
11
0151706408
rif: 11
01550-06407
BOLT
0151706408
€ 3.00
12
0142106408
rif: 12
01421-0640A
STUD BOLT
€ 2.50
13
0831616068
rif: 13
08319-31067
NUT
0831616068
€ 1.50
14
0936405005
rif: 14
UNION
0936405005
€ 3.00
15
0928003003
rif: 15
O RING(D:1.05,ID:3.1)
0928003003
€ 2.00
16
0910010074
rif: 16
BOLT 10X270
0910010074
€ 14.50
17
0910010111
rif: 17
09103-10138
BOLT
€ 10.50
18
0910010078
rif: 18
BOLT(10X165)
0910010078
€ 10.50
19
0151710558
rif: 19
01550-10557
BOLT 10X55
€ 3.00
20
0915910011
rif: 20
NUT
0915910011
€ 3.00
21
0915910020
rif: 21
NUT
0915910020
€ 7.00
22
0832211108
rif: 22
08322-01107
WASHER
€ 2.00
23
0916010005
rif: 23
WASHER(10.5X20X3.2)
0916010005
€ 2.00
24
0832121108
rif: 24
08321-01107
LOCK WASHER
0832121108
€ 1.50
25
1161045000
rif: 25
11610-44010
SPACER,ENGINE MOUNT
€ 10.50
26
0928013001
rif: 26
O RING(D:3.2,ID:12.9)
0928013001
€ 3.50
27
0924714012
rif: 27
09247-14026
PLUG (14X12)
0924714012
€ 3.00
28
0916814004
rif: 28
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.00
29
1644545000
rif: 29
HOUSING,OIL PRESSURE SWITCH
1644545000
€ 25.50
30
1644845000
rif: 30
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 9.50
31
0151706258
rif: 31
01550-06257
BOLT
0151706258
€ 1.50
32
0916806009
rif: 32
09168-06023
GASKET (NAS)
0916806009
€ 1.50
33
3782045050
rif: 33
37820-45061
SWITCH ASSEMBLY
3782045050
€ 28.00
34
0928019001
rif: 34
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
35
1152147000
rif: 35
PLATE,OIL SEPARATOR
€ 2.00
36
0211206088
rif: 36
02112-06087
SCREW
€ 1.50
