TRANSMISSION

GS550L 1981 (X) USA (E03)

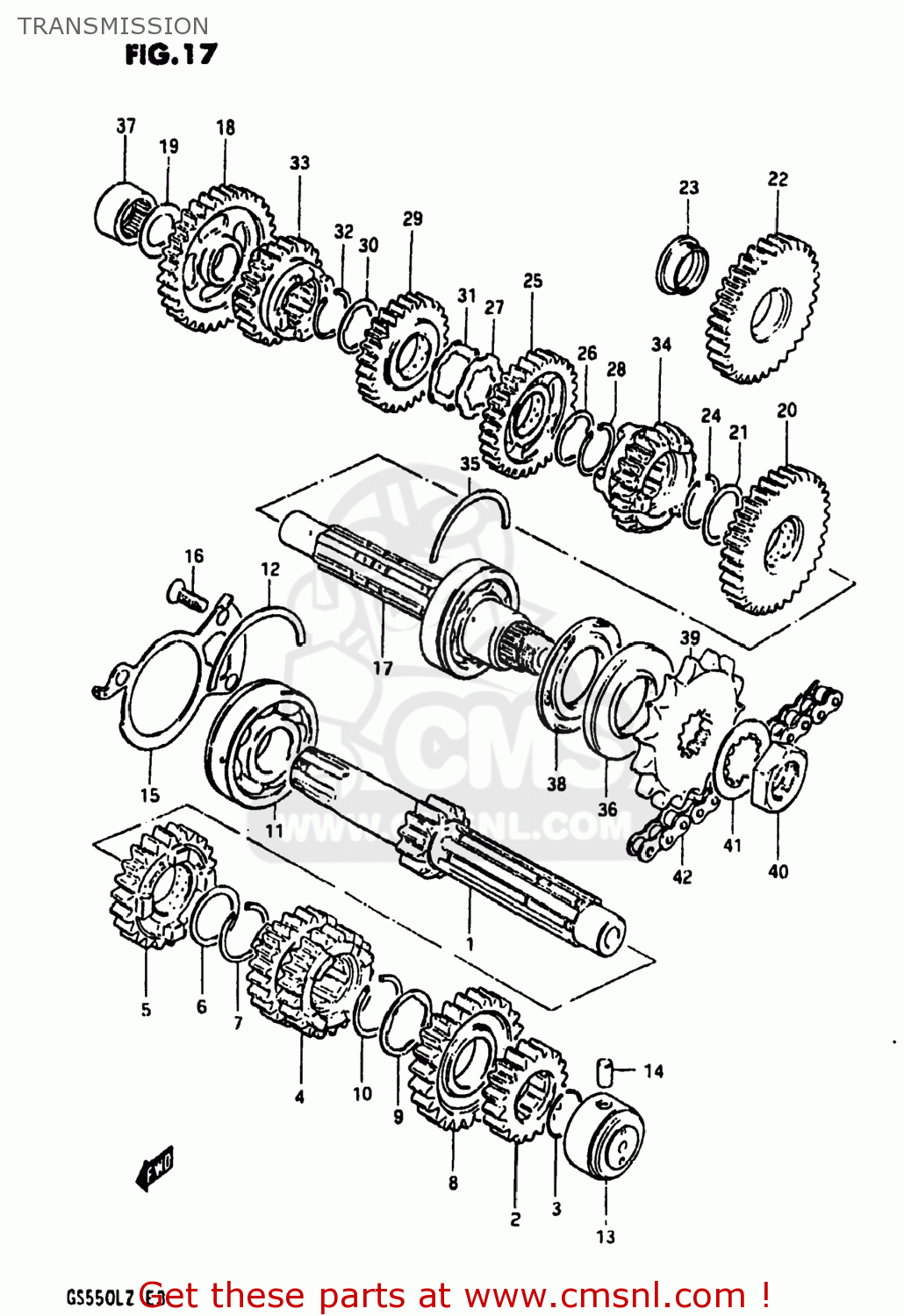

Transmission diagramma GS550L 1981 (X) USA (E03)

TRANSMISSION GS550L 1981 (X) USA (E03)
TRANSMISSION GS550L 1981 (X) USA (E03)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
2412147001
rif: 1
SHAFT,COUNTER
2412147001
€ 114.50
2
2422147000
rif: 2
GEAR,SECOND DRIVE
2422147000
€ 54.00
3
0938025006
rif: 3
RING,SNAP
0938025006
€ 2.00
4
2423147000
rif: 4
GEAR,THIRD DRIVE
€ 102.50
5
2425047000
rif: 5
GEAR,FIFTH DRIVE
2425047000
€ 82.50
6
0821125341
rif: 6
09181-25167
WASHER
0821125341
€ 3.00
7
0938025010
rif: 7
CIRCLIP
0938025010
€ 2.50
8
2426147000
rif: 8
GEAR,SIXTH DRIVE
€ 76.50
9
0916725012
rif: 9
WASHER,LOCK
0916725012
€ 3.00
10
0938025010
rif: 10
CIRCLIP
0938025010
€ 2.50
11
0926225051
rif: 11
09262-25105
BEARING(25X62X17)
0926225051
€ 57.50
12
0939062006
rif: 12
09390-62012
C-RING
0939062006
€ 4.50
13
0926320029
rif: 13
09263-20030
BEARING
0926320029
€ 38.00
14
0422107129
rif: 14
PIN
0422107129
€ 1.50
15
2474144000
rif: 15
PLATE,COUNTERSHAFT BEARING
2474144000
€ 9.00
16
0212206168
rif: 16
02122-06167
SCREW
0212206168
€ 1.50
17
2410044810
rif: 17
24100-44811
SHAFT,DRIVE
2410044810
€ 119.00
18
2431047000
rif: 18
GEAR,FIRST DRIVEN
2431047000
€ 82.50
19
0821120341
rif: 19
WASHER
0821120341
€ 2.00
20
2432044002
rif: 20
GEAR,SECOND DRIVEN
2432044002
€ 75.50
21
0821125321
rif: 21
WASHER
0821125321
€ 3.00
22
2432144004
rif: 22
24321-20F01
GEAR,SECOND DRIVEN
2432144004
€ 91.50
23
0930125001
rif: 23
24322-19F00
BUSHING
€ 13.00
24
0938025010
rif: 24
CIRCLIP
0938025010
€ 2.50
25
2433047000
rif: 25
GEAR,THIRD DRIVEN
2433047000
€ 62.00
26
0916725012
rif: 26
WASHER,LOCK
0916725012
€ 3.00
27
0916725013
rif: 27
WASHER,LOCK
0916725013
€ 2.50
28
0938025010
rif: 28
CIRCLIP
0938025010
€ 2.50
29
2434047000
rif: 29
GEAR,FOURTH DRIVEN
2434047000
€ 72.50
30
0916725012
rif: 30
WASHER,LOCK
0916725012
€ 3.00
31
0916925001
rif: 31
WASHER
0916925001
€ 2.00
32
0938025010
rif: 32
CIRCLIP
0938025010
€ 2.50
33
2435147001
rif: 33
GEAR,FIFTH DRIVEN
2435147001
€ 63.00
34-1
2436147000
rif: 34-1
24361-47001
GEAR,SIXTH DRIVEN
€ 101.50
34-2
2436147001
rif: 34-2
GEAR,SIXTH DRIVEN
2436147001
€ 101.50
35
0939062006
rif: 35
09390-62012
C-RING
0939062006
€ 4.50
36
0928332015
rif: 36
SEAL,OIL(32X62X7)
0928332015
€ 13.00
37
0926320028
rif: 37
09263-20027
ROLLER BEARING (20X34X1
0926320028
€ 33.50
38
0928232002
rif: 38
SEAL,OIL(32X62X5.5)
0928232002
€ 9.50
39
2751147000
rif: 39
27511-47B00
SPROCKET,ENGINE
2751147000
€ 22.00
40
0914020009
rif: 40
NUT
0914020009
€ 7.00
41
0916725011
rif: 41
09167-25019
WASHER
0916725011
€ 2.00
42
2760047110
rif: 42
CHAIN ASSEMBLY,DRIVE
€ 0.00
