FRAME

LTF250 1991 (M)

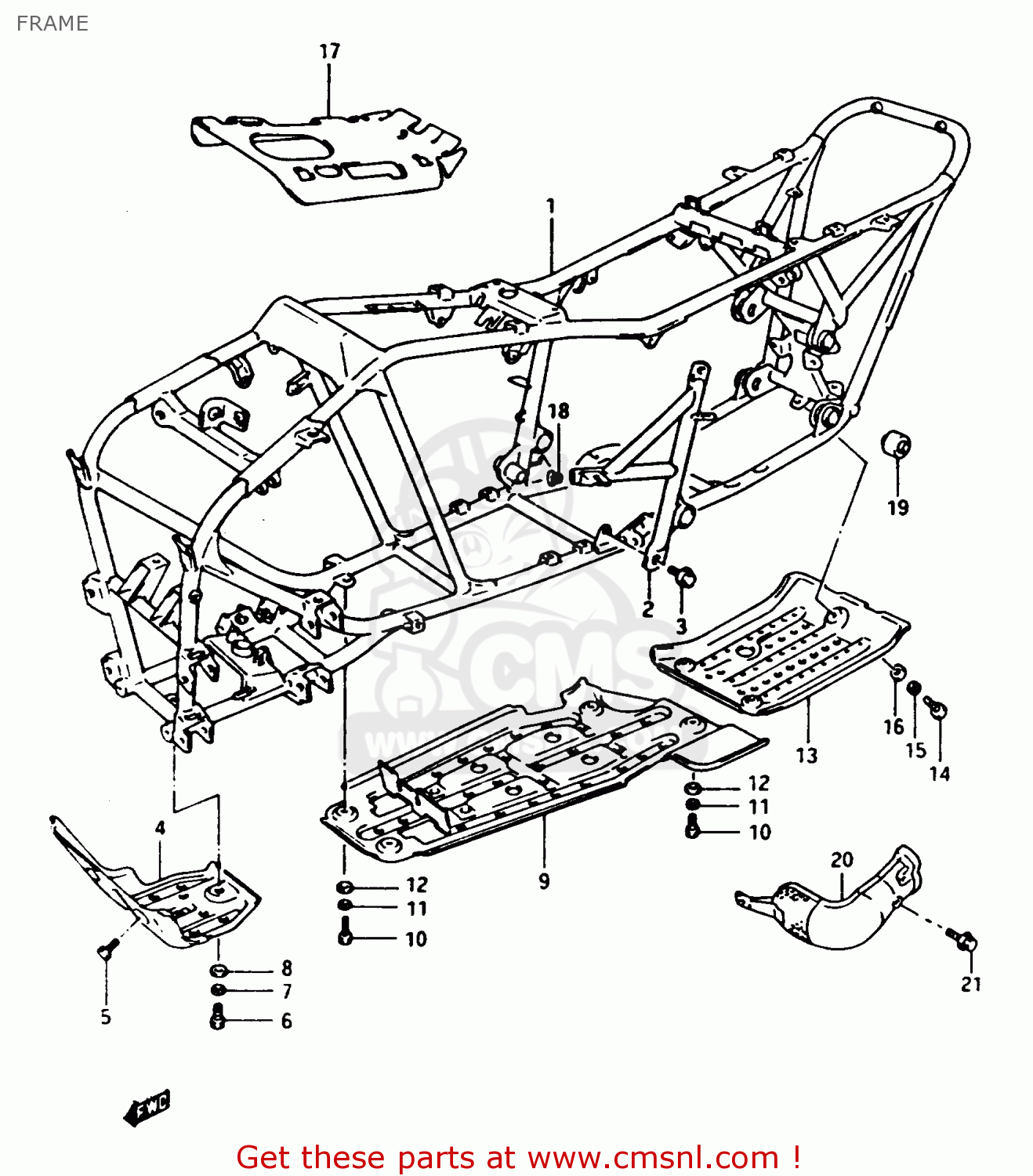

Frame diagramma LTF250 1991 (M)

FRAME LTF250 1991 (M)
FRAME LTF250 1991 (M)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
4110020B00019
rif: 1-1
MODEL J/K
FRAME
€ 981.00
1-2
4110020851019
rif: 1-2
MODEL L
FRAME
€ 934.50
1-3
4110020860019
rif: 1-3
MODEL N
FRAME
€ 972.00
1-4
4110020861019
rif: 1-4
MODEL N/P/R/S/T
FRAME SET
€ 972.00
2-1
4191019B01019
rif: 2-1
MODEL J/K
BAR,ENGINE MOUNT
€ 0.00
2-2
4191019B20019
rif: 2-2
MODEL L
PLATE COMP,ENGINE MOUNTING
€ 0.00
2-3
4191039D00019
rif: 2-3
MODEL M/N/P/R/S/T
TUBE,ENGINE MOUNT FR
€ 0.00
3
0910310165
rif: 3
BOLT(10X20)
€ 4.00
4-1
4251120B00
rif: 4-1
MODEL J
PROTECTOR,ENGINE
€ 46.50
4-2
4251120B10
rif: 4-2
MODEL K/L/M/N/P/R/S/
PROTECTOR,FRONT
€ 46.50
5-1
0150006123
rif: 5-1
MODEL J/K/L/M
BOLT
0150006123
€ 2.00
5-2
0117706126
rif: 5-2
MODEL N/P
BOLT,FRONT
€ 2.00
5-3
0158006123
rif: 5-3
MODEL R/S/T
BOLT
€ 2.00
6-1
0150006163
rif: 6-1
MODEL J/K/L/M
BOLT
0150006163
€ 1.50
6-2
0117706166
rif: 6-2
MODEL N/P/R
BOLT
€ 2.00
6-3
0158006163
rif: 6-3
MODEL S/T
BOLT
0158006163
€ 2.00
7
0832101063
rif: 7
MODEL J/K/L/M
LOCK WASHER
0832101063
€ 1.50
8
0832201063
rif: 8
MODEL J/K/L/M
WASHER
0832201063
€ 1.50
9-1
4256019B02
rif: 9-1
MODEL J/K
PROTECTOR,MIDDLE
€ 96.00
9-2
4256019B20
rif: 9-2
MODEL L/M/N/P/R
PROTECTOR
€ 96.00
9-3
4256019B02
rif: 9-3
MODEL S/T
PROTECTOR,MIDDLE
€ 96.00
10-1
0150006163
rif: 10-1
MODEL J/K/L/M
BOLT
0150006163
€ 1.50
10-2
0117706166
rif: 10-2
MODEL N/P/R
BOLT
€ 2.00
10-3
0158006163
rif: 10-3
MODEL S/T
BOLT
0158006163
€ 2.00
11
0832101063
rif: 11
MODEL J/K/L/M
LOCK WASHER
0832101063
€ 1.50
12
0832201063
rif: 12
MODEL J/K/L/M
WASHER
0832201063
€ 1.50
13-1
6139019B00
rif: 13-1
MODEL J/K/L
PROTECTOR COMP,ENGINE
€ 74.50
13-2
6139019B01
rif: 13-2
MODEL M/N/P/R/S/T
PROTECTOR COMP,ENGINE
€ 74.50
14-1
0150006163
rif: 14-1
MODEL J/K/L/M
BOLT
0150006163
€ 1.50
14-2
0117706166
rif: 14-2
MODEL N/P/R
BOLT
€ 2.00
14-3
0158006163
rif: 14-3
MODEL S/T
BOLT
0158006163
€ 2.00
15
0832101063
rif: 15
MODEL J/K/L/M
LOCK WASHER
0832101063
€ 1.50
16
0832201063
rif: 16
MODEL J/K/L/M
WASHER
0832201063
€ 1.50
17
4715719B10
rif: 17
MUD GUARD
€ 33.00
18
4397824500
rif: 18
MODEL L/M/N/P/R/S/T
CAP,FR GRIP
4397824500
€ 4.50
19
0931910064
rif: 19
MODEL L/M/N/P/R/S/T
BUSH
€ 10.00
20
4257039D00
rif: 20
MODEL M/N/P/R/S/T
COVER,MUD
€ 174.50
21-1
0151706105
rif: 21-1
MODEL M/N/P
BOLT
€ 2.00
21-2
0158006123
rif: 21-2
MODEL R/S/T
BOLT
€ 2.00
