FRONT WHEEL BRAKE (MODEL M/N/P/R/S/T)

LTF250 1988 (J)

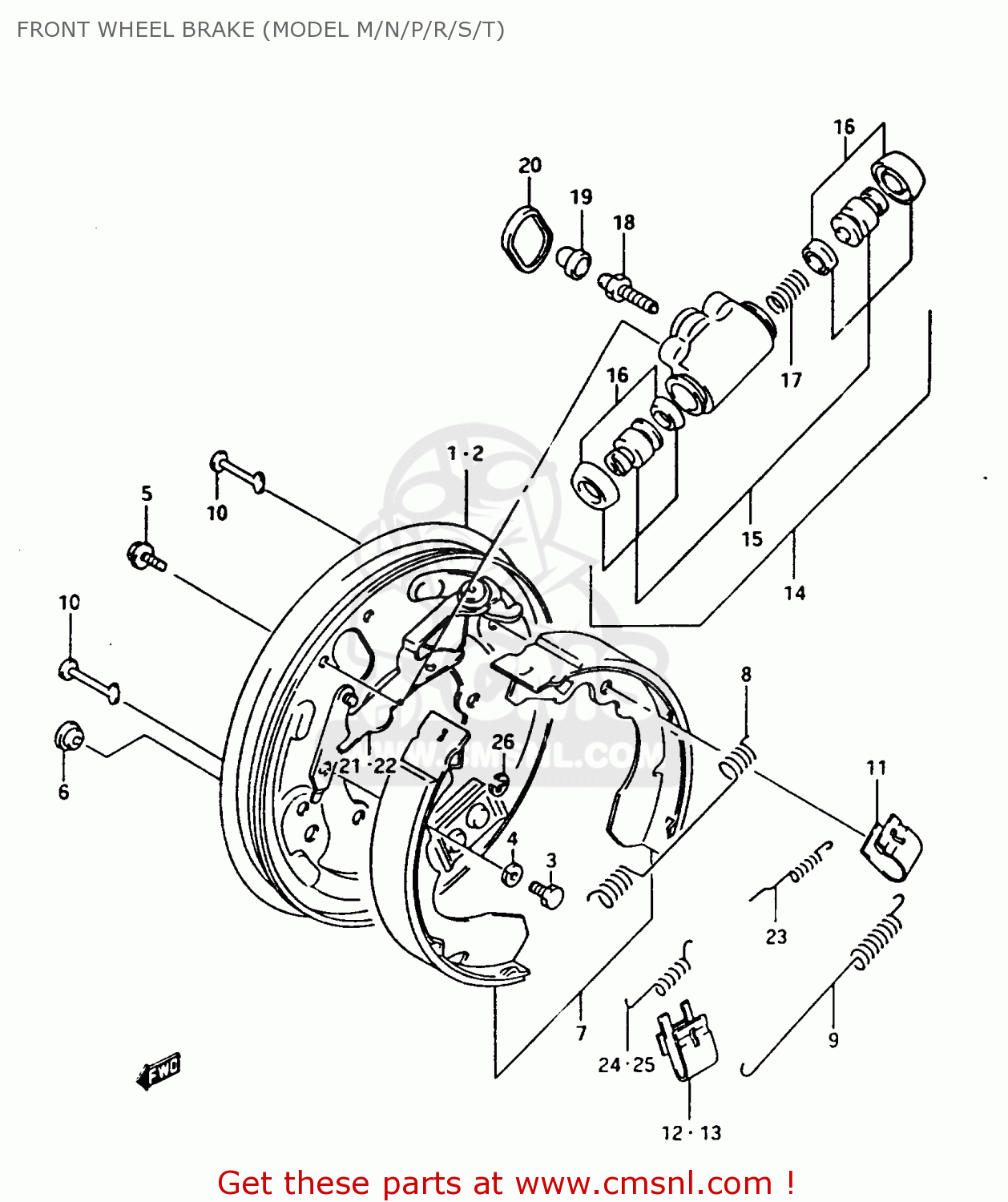

Front wheel brake (model m/n/p/r/s/t) diagramma LTF250 1988 (J)

FRONT WHEEL BRAKE (MODEL M/N/P/R/S/T) LTF250 1988 (J)
FRONT WHEEL BRAKE (MODEL M/N/P/R/S/T) LTF250 1988 (J)
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
5451019B20
rif: 1
PLATE,FR BRAKE BACK,R
€ 50.00
2
5481019B20
rif: 2
PLATE,FR BRAKE BACK,L
€ 48.00
3-1
0110708166
rif: 3-1
MODEL M/N/P
BOLT, 8X1.25X1
€ 2.00
3-2
0150008163
rif: 3-2
MODEL R/S/T
BOLT
0150008163
€ 2.00
4-1
0832131086
rif: 4-1
MODEL M/N/P
WASHER,LOCK,8.
€ 2.50
4-2
0832101083
rif: 4-2
MODEL R/S/T
LOCK WASHER
0832101083
€ 2.50
5-1
5313182030
rif: 5-1
MODEL M
BOLT,WHEEL CYLINDER
€ 0.50
5-2
5313156B60
rif: 5-2
MODEL N/P -01550-061
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
5-3
0155006103
rif: 5-3
MODEL R/S/T
BOLT
0155006103
€ 2.00
6
5451539D00
rif: 6
PLUG,BACK PLATE
5451539D00
€ 4.00
7-1
5441019B10
rif: 7-1
MODEL M/N/P -54400-1
SHOE,BRAKE
5441019B10
€ 20.00
7-2
5441019B20
rif: 7-2
MODEL R/S -54400-198
SHOE,BRAKE
€ 20.00
7-3
5440019830
rif: 7-3
MODEL T
SHOE SET,BRAKE (NAS)
5440019830
€ 20.00
8
5453119B01
rif: 8
SPRING,SHOE RETURN UPR
5453119B01
€ 4.00
9
5453219B01
rif: 9
SPRING,SHOE RETURN LWR
5453219B01
€ 5.00
10
5324182030
rif: 10
PIN,SHOE HOLD DOWN
5324182030
€ 2.00
11
5324385010
rif: 11
SPRING,SHOE HOLD DOWN
5324385010
€ 4.00
12
5324582031
rif: 12
SPRING,SHOE HOLD DOWN,L
5324582031
€ 2.50
13
5324482031
rif: 13
SPRING,SHOE HOLD DOWN,R
5324482031
€ 5.50
14
5454019B10
rif: 14
CYLINDER ASSY,RR WHEEL
5454019B10
€ 52.50
15
5450019810
rif: 15
PISTON SET
5450019810
€ 93.50
16
5340082811
rif: 16
CUP SET,WHEEL CYLINDER
5340082811
€ 12.50
17
5343282030
rif: 17
SPRING,WHEEL CYLINDER
5343282030
€ 2.00
18
5454219B00
rif: 18
PLUG,BLEEDER
5454219B00
€ 5.00
19
5515666310
rif: 19
CAP,BLEEDER PLUG
5515666310
€ 4.50
20
5341782030
rif: 20
GASKET,RR WHEEL CYLINDER (NAS)
5341782030
€ 2.00
21
5455019B10
rif: 21
STRUT SET,BRAKE,R
5455019B10
€ 46.00
22
5485019B10
rif: 22
STRUT SET,BRAKE,L
5485019B10
€ 49.50
23
5371482030
rif: 23
SPRING, QUADRANT
5371482030
€ 1.50
24
5452419B00
rif: 24
SPRING,ANTI-RATTLE,LEFT
5452419B00
€ 4.00
25
5482419B00
rif: 25
SPRING,ANTI-RATTLE,RIGHT
5482419B00
€ 3.00
26
5375385010
rif: 26
-08332-11043
RETAINER,PARKING LEVER
€ 1.00
