REAR SWINGING ARM (MODEL H/J/K/L)

LT250R QUAD RACER 1988 (J) USA (E03) QUADRACER QUAD-RACER

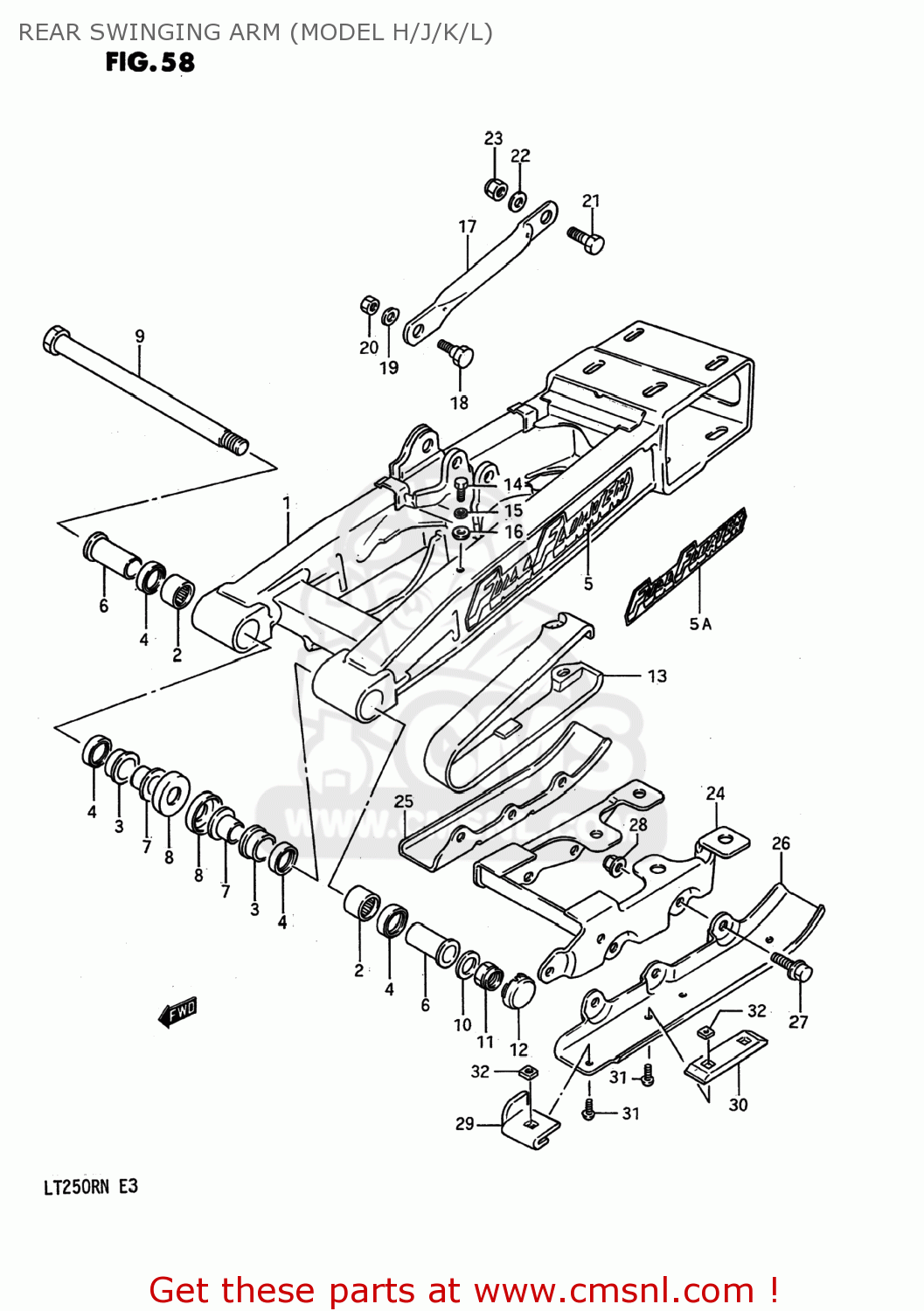

Rear swinging arm (model h/j/k/l) diagramma LT250R QUAD RACER 1988 (J) USA (E03) QUADRACER QUAD-RACER

REAR SWINGING ARM (MODEL H/J/K/L) LT250R QUAD RACER 1988 (J) USA (E03) QUADRACER QUAD-RACER
REAR SWINGING ARM (MODEL H/J/K/L) LT250R QUAD RACER 1988 (J) USA (E03) QUADRACER QUAD-RACER
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1-1
6100001C00
rif: 1-1
61000-01C11
SWING ARM ASSEMBLY,REAR
€ 563.50
1-1
6100001C00
rif: 1-1
61000-01C11
SWING ARM ASSEMBLY,REAR
€ 563.50
1-2
6100001C11
rif: 1-2
SWING ARM ASSEMBLY,REAR
€ 563.50
2
0926320041
rif: 2
BEARING(20X27X20)
0926320041
€ 14.50
3
6126140402
rif: 3
61261-27C00
BUSHING,REAR SWING ARM PIVOT
6126140402
€ 26.00
4
0928520005
rif: 4
09283-20031
OIL SEAL
0928520005
€ 4.00
5
6838119A1097J
rif: 5
68381-27C00-97J
LABEL (FRONT CARRIER WARNING)
6838119A1097J
€ 6.50
5A
6838101C002SG
rif: 5A
LABEL
€ 5.00
6
6125119A00
rif: 6
SPACER,RR SWGARM PIVOT
6125119A00
€ 14.50
7
6125214100
rif: 7
SPACER,RR SWGARM PIVOT INNER
6125214100
€ 12.50
8
6126240400
rif: 8
COVER,RR SWGARM DUST SEAL
6126240400
€ 4.00
9
6121119A00
rif: 9
SHAFT,RR SWINGINGARM PIVOT
6121119A00
€ 35.50
10
0916014009
rif: 10
WASHER(14.5X29X2.3)
0916014009
€ 2.50
11
0915914013
rif: 11
09159-14019
NUT
0915914013
€ 8.50
12
6122213A0019F
rif: 12
CAP,PIVOT
6122213A0019F
€ 5.00
13
6127319A01
rif: 13
BUFFER,CHAIN TOUCH DEFENSE
6127319A01
€ 29.50
14
0110706127
rif: 14
01500-06127
BOLT
0110706127
€ 2.00
15
0832121067
rif: 15
08321-01067
WASHER,LOCK
0832121067
€ 1.50
16
0916006019
rif: 16
WASHER(6.5X16X1.2)
0916006019
€ 1.50
17
6431101C00
rif: 17
TORQUE LINK
€ 10.00
18
0911108061
rif: 18
BOLT(8X22)
0911108061
€ 5.50
19
0832211088
rif: 19
08322-01087
WASHER
0832211088
€ 1.50
20
0831921088
rif: 20
08319-2108A
NUT
0831921088
€ 1.50
21
0910010230
rif: 21
BOLT(10X22)
€ 0.00
22
0832211107
rif: 22
08322-01107
WASHER
0832211107
€ 2.00
23
0915910027
rif: 23
NUT
0915910027
€ 3.00
24
6139001C00
rif: 24
STAY COMP,GUARD
€ 62.00
25
6139143B00
rif: 25
61391-43B01
GUARD
€ 50.50
26
6139243B00
rif: 26
GUARD,SPROCKET
6139243B00
€ 32.50
27
0151708207
rif: 27
01550-08207
BOLT
€ 2.00
28
0831931087
rif: 28
NUT
0831931087
€ 2.00
29
6139619A13
rif: 29
BUFFER,SPROCKET GUARD,NO.1
€ 9.50
30
6139743B01
rif: 30
BUFFER,SPROCKET GUARD,NO.2
6139743B01
€ 7.50
31
0214205104
rif: 31
02142-0510B
SCREW 5X10
0214205104
€ 1.50
32
0831811056
rif: 32
08318-1105A
NUT
0831811056
€ 1.50
