Il vostro catalogo delle parti di ricambio online

CARBURETOR PARTS

ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD

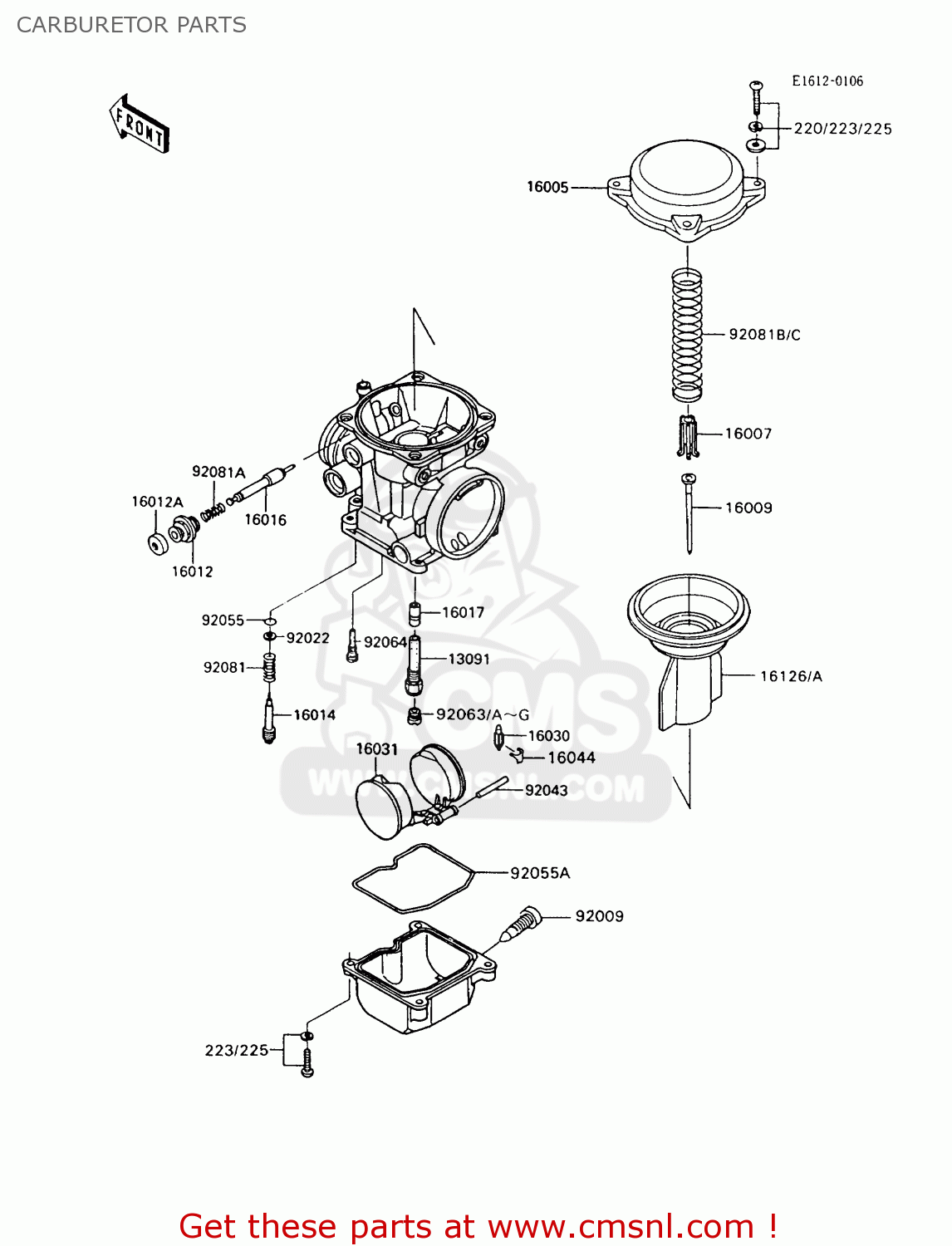

Carburetor parts diagramma ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD

CARBURETOR PARTS ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD
CARBURETOR PARTS ZX600C7 GPX600R 1994 UNITED KINGDOM NL FG SD
i prezzi sono in EUR
rif
parte #
descrizione
quantità
13091
130911406
rif: 13091
HOLDER,NEEDLE JET
130911406
€ 18.00
16005
160051056
rif: 16005
TOP-CHAMBER,MIXING
160051056
€ 45.00
16007
160071120
rif: 16007
SEAT-SPRING
160071120
€ 15.50
16009
160091354
rif: 16009
NEEDLE-JET,N52Q
160091354
€ 18.00
16012
160121051
rif: 16012
CAP-STARTER PLUNGER
160121051
€ 6.50
16012A
160121052
rif: 16012A
CAP-STARTER PLUNGER
160121052
€ 9.00
16014
160141054
rif: 16014
SCREW-PILOT AIR
160141054
€ 14.50
16016
160161061
rif: 16016
PLUNGER,STARTER
160161061
€ 28.50
16017
160171285
rif: 16017
JET-NEEDLE
€ 31.00
16030
160301007
rif: 16030
FLOAT VALVE ASSY
160301007
€ 34.00
16031
160311056
rif: 16031
FLOAT
160311056
€ 36.50
16044
16044007
rif: 16044
CLIP, FLOAT VALVE
16044007
€ 3.50
16126
161261160
rif: 16126
FGNLUK
VALVE,VACUUM
161261160
€ 148.50
16126A
161261172
rif: 16126A
SD
VALVE,VACUUM
161261172
€ 91.50
92009
920091551
rif: 92009
SCREW,DRAIN
920091551
€ 6.00
92022
920221003
rif: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
rif: 92043
PIN,FLOAT
920431207
€ 5.50
92055
920551002
rif: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551222
rif: 92055A
RING-O,FLOAT CHAMBER
920551222
€ 11.50
92063
920631005
rif: 92063
FGNLUK
JET-MAIN,#98
920631005
€ 9.00
92063A
920631008
rif: 92063A
JET-MAIN,#100
920631008
€ 8.50
92063B
920631009
rif: 92063B
SD
JET-MAIN,#105
920631009
€ 9.00
92063C
920631009
rif: 92063C
FGNLUK
JET-MAIN,#105
920631009
€ 9.00
92063D
920631114
rif: 92063D
SD
JET-MAIN,#110
920631114
€ 9.00
92063E
920631115
rif: 92063E
FGNLUK
JET-MAIN,#102
920631115
€ 9.00
92063F
920631115
rif: 92063F
SD
JET-MAIN,#102
920631115
€ 9.00
220
220D0414
rif: 220
FGNLUK
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0416
rif: 223
SD
SCREW-PAN-WS-CROS
223C0416
€ 2.00
225
225C0418
rif: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.00
92063G
920631116
rif: 92063G
JET-MAIN,#108
920631116
€ 9.00
92064
920641035
rif: 92064
JET-PILOT,#35
920641035
€ 11.50
92081
920811002
rif: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.00
92081A
920811761
rif: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811775
rif: 92081B
SD
SPRING,VACUUM VALVE
€ 15.50
92081C
920811912
rif: 92081C
FGNLUK
SPRING,VACUUM VALVE
920811912
€ 15.50
