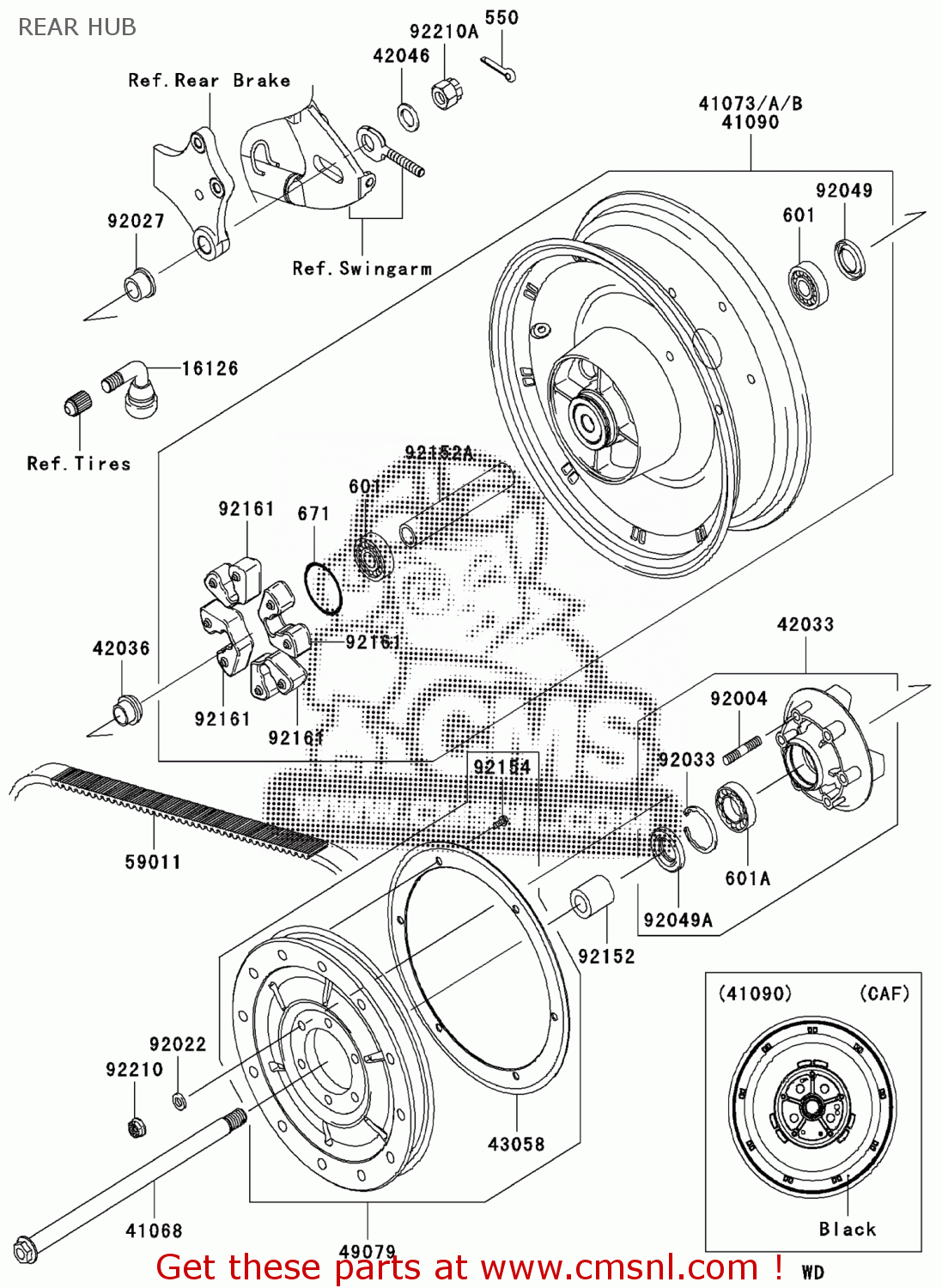

REAR HUB

rif

parte #

descrizione

quantità

550

550AA4035
rif: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6204UU
rif: 601

BEARING-BALL,6204UUC3

€ 26.50

671

671B2560
rif: 671

O RING,60MM

€ 1.50

16126

161260036
rif: 16126

VALVE

€ 13.50

41068

410680057
rif: 41068

AXLE,RR

€ 63.50

41090

41090528418F
rif: 41090

WHEEL-ASSY,RR,G.BLACK

€ 872.50

42033

420330037
rif: 42033

COUPLING-ASSY,RR HUB

€ 141.50

42036

420361251
rif: 42036

SLEEVE,RR HUB,L=23

€ 16.50

42046

42046003
rif: 42046

WASHER,21X33X2.6

€ 2.50

43058

430580011
rif: 43058

RING,REAR PULLEY

€ 33.00

49079

490790011
rif: 49079

PULLEY-BELT

€ 672.50

59011

590110021
rif: 59011

BELT,DRIVE,153T

€ 361.50

92004

920040016
rif: 92004

STUD,10X35

€ 5.00

92022

920221820
rif: 92022

WASHER,10.5X19X3.2

€ 2.50

92027

920271902
rif: 92027

COLLAR,RR AXLE,L=21.5

€ 16.00

92033

920331043
rif: 92033

RING,SNAP,56.2M/M

€ 5.50

92049

920491056
rif: 92049

OIL SEAL,BJN28475

€ 8.00

92152

921520350
rif: 92152

COLLAR,RR AXLE,LH,L=3

€ 20.50

92154

921540346
rif: 92154

BOLT,FLANGED,6X12

€ 1.00

92161

921610466
rif: 92161

DAMPER,SHOCK,RR HUB

€ 20.00

92210

922100276
rif: 92210

NUT,LOCK,FLANGED,10MM

€ 1.50

601A

601B6205UU
rif: 601A

BEARING-BALL

€ 26.00

92049A

920491287
rif: 92049A

SEAL-OIL

€ 6.00

92152A

921520351
rif: 92152A

COLLAR,REAR BRAKE DRU

€ 16.00

92210A

922101134
rif: 92210A

NUT

€ 4.50

tutti gli assemblaggi
