SADDLEBAGS

VN1500L1H VN1500 CLASSIC TOURER FI 2000 EUROPE UK

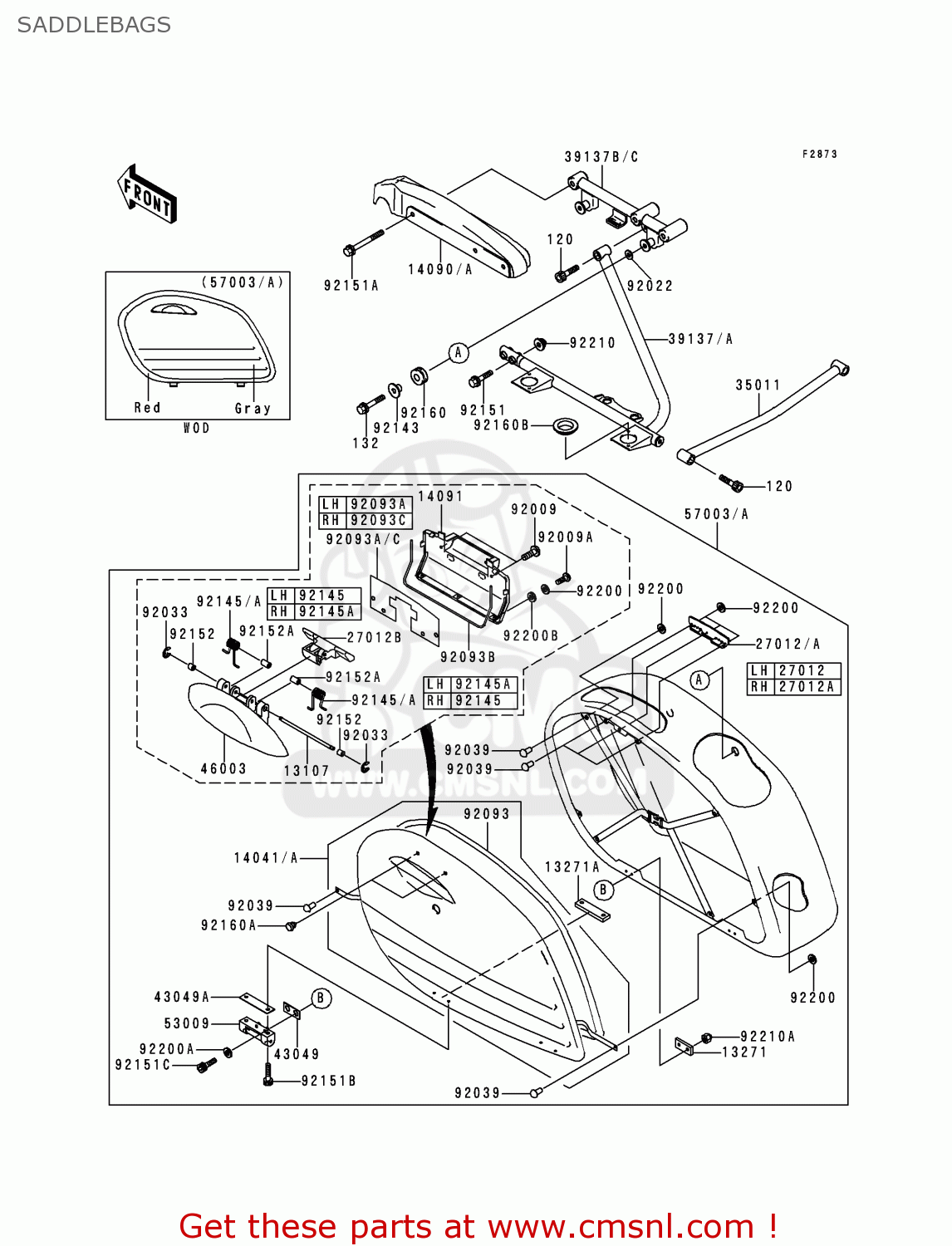

Saddlebags diagramma VN1500L1H VN1500 CLASSIC TOURER FI 2000 EUROPE UK

SADDLEBAGS VN1500L1H VN1500 CLASSIC TOURER FI 2000 EUROPE UK
SADDLEBAGS VN1500L1H VN1500 CLASSIC TOURER FI 2000 EUROPE UK
i prezzi sono in EUR
rif
parte #
descrizione
quantità
13107
131071403
rif: 13107
SHAFT
131071403
€ 2.50
13271
132711146
rif: 13271
PLATE
€ 2.50
13271A
132711147
rif: 13271A
PLATE
€ 5.00
14041
140411130T8
rif: 14041
COVER-COMP,SIDE BAG,L
€ 503.50
14041A
140411131T8
rif: 14041A
COVER-COMP,SIDE BAG,R
140411131T8
€ 385.00
14090
140901894
rif: 14090
COVER,RR FENDER,LH
€ 53.50
14090A
140901895
rif: 14090A
COVER,RR FENDER,RH
€ 64.50
14091
140911069
rif: 14091
COVER
€ 13.00
27012
270121571
rif: 27012
HOOK,LOCK PLATE,LH
270121571
€ 9.50
27012A
270121572
rif: 27012A
HOOK,LOCK PLATE,RH
270121572
€ 9.50
27012B
270121575
rif: 27012B
HOOK,HANDLE
270121575
€ 12.50
35011
350111896
rif: 35011
STAY,SIDE BAG
€ 42.00
39137
391371067
rif: 39137
STAY-COMP,SIDE BAG,LH
391371067
€ 120.50
39137A
391371068
rif: 39137A
STAY-COMP,SIDE BAG,RH
€ 117.00
39137B
391371075
rif: 39137B
STAY-COMP,SIDE BAG,LH
€ 120.50
39137C
391371076
rif: 39137C
STAY-COMP,SIDE BAG,RH
€ 141.00
43049
430491084
rif: 43049
PACKING (NAS)
€ 1.50
43049A
430491086
rif: 43049A
PACKING (NAS)
430491086
€ 1.50
46003
460031505
rif: 46003
HANDLE,SIDE BAG
460031505
€ 127.50
53009
530091104
rif: 53009
HINGE
€ 16.00
57003
570031082HY
rif: 57003
BAG-ASSY,LH,RED+GRAY
€ 1,555.00
57003A
570031083HY
rif: 57003A
BAG-ASSY,RH,RED+GRAY
€ 1,372.50
92009
920091870
rif: 92009
SCREW
€ 1.00
92009A
920091871
rif: 92009A
SCREW
€ 1.00
92022
920221317
rif: 92022
WASHER,8.5X20X1.6,BLA
920221317
€ 2.00
92033
920331300
rif: 92033
RING-SNAP
920331300
€ 1.00
92039
920391236
rif: 92039
RIVET
€ 1.50
92093
920931486
rif: 92093
SEAL
€ 8.00
92093A
920931487
rif: 92093A
SEAL
€ 3.50
92093B
920931488
rif: 92093B
SEAL
€ 2.00
92093C
920931489
rif: 92093C
SEAL
€ 3.50
92143
921431450
rif: 92143
COLLAR
921431450
€ 6.00
92145
921451175
rif: 92145
SPRING
€ 4.50
92145A
921451200
rif: 92145A
SPRING
€ 4.50
92151
921511402
rif: 92151
BOLT,FLANGED,8X35
€ 1.50
92151A
921511403
rif: 92151A
BOLT,FLANGED,8X75
921511403
€ 3.00
92151B
921511436
rif: 92151B
BOLT
€ 1.50
92151C
921511437
rif: 92151C
BOLT
€ 1.50
92152
921521121
rif: 92152
COLLAR
€ 2.00
92152A
921521122
rif: 92152A
COLLAR
€ 2.00
120
120S0835
rif: 120
BOLT-SOCKET,8X35,BLAC
120S0835
€ 2.50
132
132J0845
rif: 132
BOLT-FLANGED-SMALL
€ 3.00
92160
921601012
rif: 92160
DAMPER
921601012
€ 3.00
92160A
921601976
rif: 92160A
DAMPER
921601976
€ 1.50
92160B
921601981
rif: 92160B
DAMPER
921601981
€ 6.50
92200
922001442
rif: 92200
WASHER
922001442
€ 1.00
92200A
922001443
rif: 92200A
WASHER
€ 1.00
92200B
922001444
rif: 92200B
WASHER,3MM
€ 1.00
92210
922101161
rif: 92210
NUT,CAP,8MM
922101161
€ 1.50
92210A
922101168
rif: 92210A
NUT
€ 1.00
