FUEL TANK (KX250-A4)

KX250-A4 1978

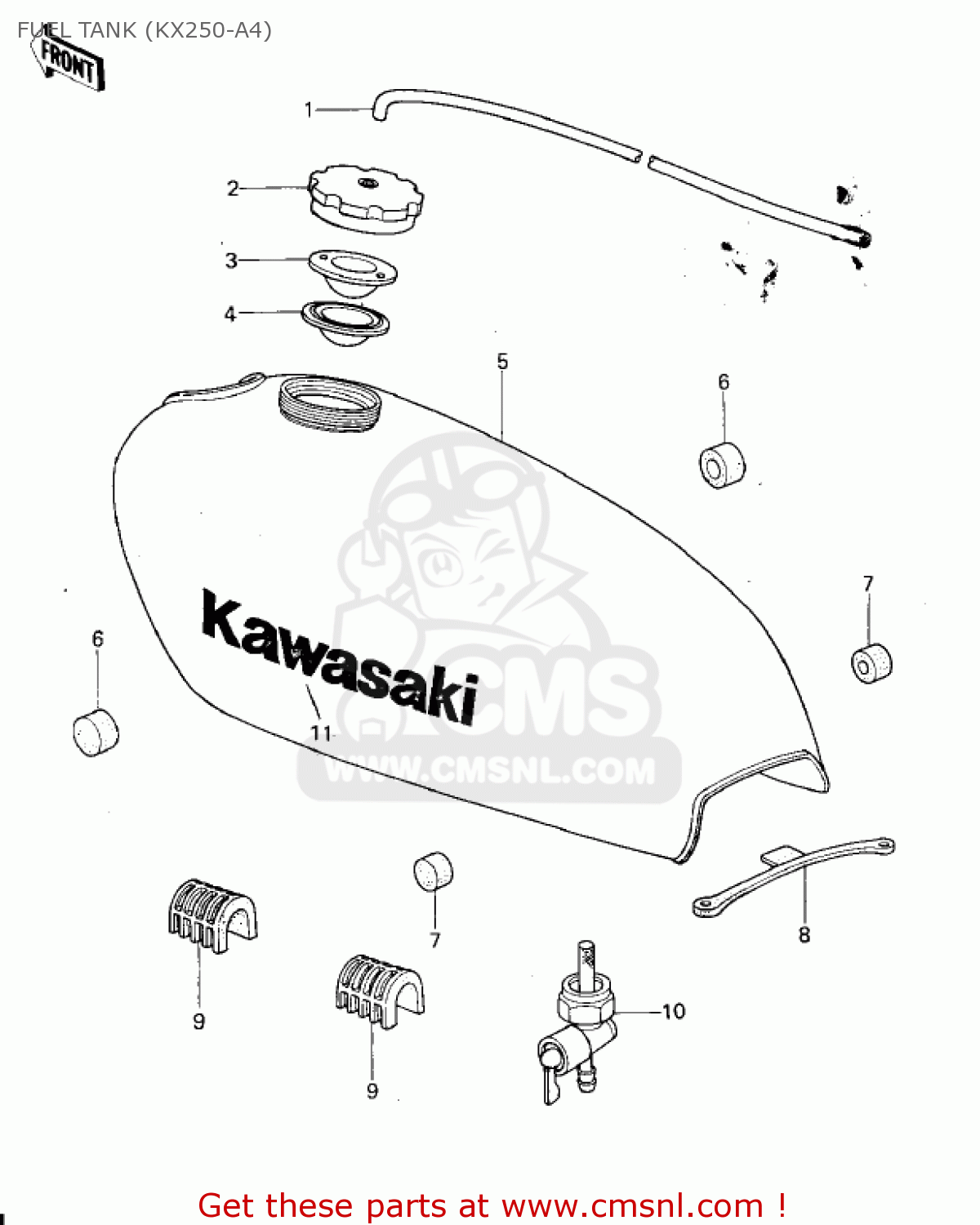

Fuel tank (kx250-a4) diagramma KX250-A4 1978

i prezzi sono in EUR

rif

parte #

descrizione

quantità

920591022
rif: 1

TUBE,VINYL

€ 2.50

510491002
rif: 2

CAP,FUEL TANK

€ 9.00

51058004
rif: 3

WASHER,FUEL TANK CAP

€ 4.50

51059012
rif: 4

GASKET,FUEL TANK CAP

€ 4.50

5100110057F
rif: 5

TANK,FUEL,L.GREEN

€ 330.00

92075101
rif: 6
FRONT

DAMPER RUBBER-FL TANK

€ 3.50

92075125
rif: 7
REAR

DAMPER RUBBER-FL TANK

€ 3.50

92072042
rif: 8

BAND,FUEL TANK

€ 8.50

920751027
rif: 9

DAMPER RUBBER,FL TANK

€ 7.50

51023033
rif: 10

COCK ASSY,FUEL

€ 44.50

560141011
rif: 11

FUEL TANK DECAL

€ 4.00
