FRONT FORK

KX125-E1 KX125 1986 USA CANADA

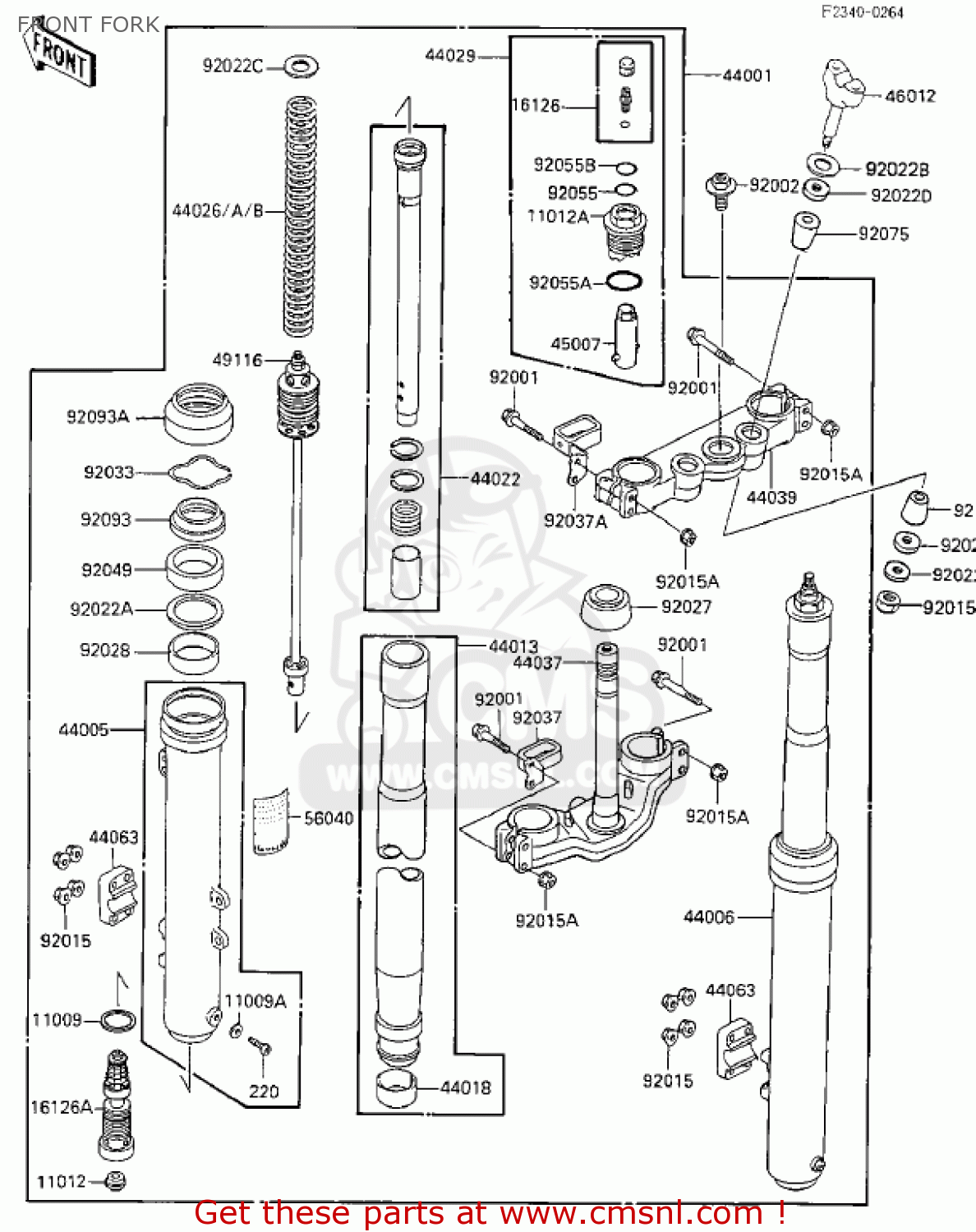

Front fork diagramma KX125-E1 KX125 1986 USA CANADA

FRONT FORK KX125-E1 KX125 1986 USA CANADA
FRONT FORK KX125-E1 KX125 1986 USA CANADA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
11009
110091592
rif: 11009
GASKET,FORK CYLINDER (NAS)
110091592
€ 3.50
11009A
44045002
rif: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
11012
110121381
rif: 11012
CAP,FORK CYLINDER
110121381
€ 3.50
11012A
110121439
rif: 11012A
CAP
110121439
€ 49.00
16126
161261052
rif: 16126
VALVE,AIR
161261052
€ 20.50
16126A
161261155
rif: 16126A
VALVE,FORK CYLINDER
€ 90.50
44001
440011598
rif: 44001
FORK-FRONT
€ 862.50
44005
440051244
rif: 44005
PIPE-LEFT FORK OUTER
€ 214.50
44006
440061243
rif: 44006
PIPE-RIGHT FORK OUTER
€ 234.00
44013
440131248
rif: 44013
PIPE-FORK INNER
€ 171.50
44018
440181005
rif: 44018
BUSHING-FRONT FORK,IN
440181005
€ 22.50
44022
440221192
rif: 44022
CYLINDER-FORK
€ 77.50
44026
440261294
rif: 44026
(OPTION)
SPRING-FRONT FORK
€ 50.50
44026A
440261324
rif: 44026A
SPRING-FRONT FORK,K=0
€ 54.50
44026B
440261314
rif: 44026B
(OPTION)
SPRING-FRONT FORK,K=0
440261314
€ 54.50
44029
440291117
rif: 44029
SEAT-FORK SPRING
€ 65.50
44037
440371192
rif: 44037
HOLDER-FORK UNDER
€ 215.00
44039
440391142
rif: 44039
HOLDER-FORK UPPER
€ 124.00
44063
440631008
rif: 44063
HOLDER-FRONT AXLE
440631008
€ 29.50
45007
450071055
rif: 45007
ADJUSTER-SPRING,FRONT
€ 35.00
46012
460121138
rif: 46012
HOLDER-HANDLE
460121138
€ 23.50
49116
491161065
rif: 49116
VALVE-ASSY
€ 128.50
56040
560401120
rif: 56040
LABEL,FRONT FORK
560401120
€ 3.50
92001
920011639
rif: 92001
BOLT
920011639
€ 4.50
92002
920021399
rif: 92002
BOLT,FORK TOP
€ 23.50
92015
920151078
rif: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151485
rif: 92015A
NUT,FLANGED,8MM
920151485
€ 3.00
92015B
92019021
rif: 92015B
NUT,LOCK,10M/M
92019021
€ 2.00
92022
920221088
rif: 92022
WASHER,10.2X28X2
920221088
€ 3.00
92022A
920221299
rif: 92022A
WASHER
920221299
€ 5.50
92022B
920221303
rif: 92022B
WASHER,12.4X28X2.3,BL
€ 3.00
92022C
920221665
rif: 92022C
WASHER,FORK SPRING
€ 2.50
92022D
920221737
rif: 92022D
WASHER
920221737
€ 3.50
92027
920271427
rif: 92027
COLLAR,FRONT FORK
€ 39.50
92028
920281145
rif: 92028
BUSHING
920281145
€ 17.50
92033
920331077
rif: 92033
RING-SNAP
920331077
€ 3.00
92037
920371627
rif: 92037
CLAMP
920371627
€ 18.00
92037A
920371628
rif: 92037A
CLAMP
920371628
€ 11.50
92049
920491104
rif: 92049
SEAL-OIL,FORK OUTER T
920491104
€ 13.00
92055
920551062
rif: 92055
RING-O,FORK TOP CAP
€ 2.50
92055A
920551123
rif: 92055A
RING-O
920551123
€ 3.50
92055B
920551288
rif: 92055B
RING-O
920551288
€ 2.00
92075
920751776
rif: 92075
DAMPER
920751776
€ 4.50
92093
920931086
rif: 92093
SEAL,FORK DUST
920931086
€ 11.50
92093A
920931184
rif: 92093A
SEAL,FORK
920931184
€ 11.50
220
220B0408
rif: 220
SCREW-PAN-CROS
220B0408
€ 0.50
