BRAKE PEDAL

EX500B4 1991 EUROPE FR GR IT NR SP

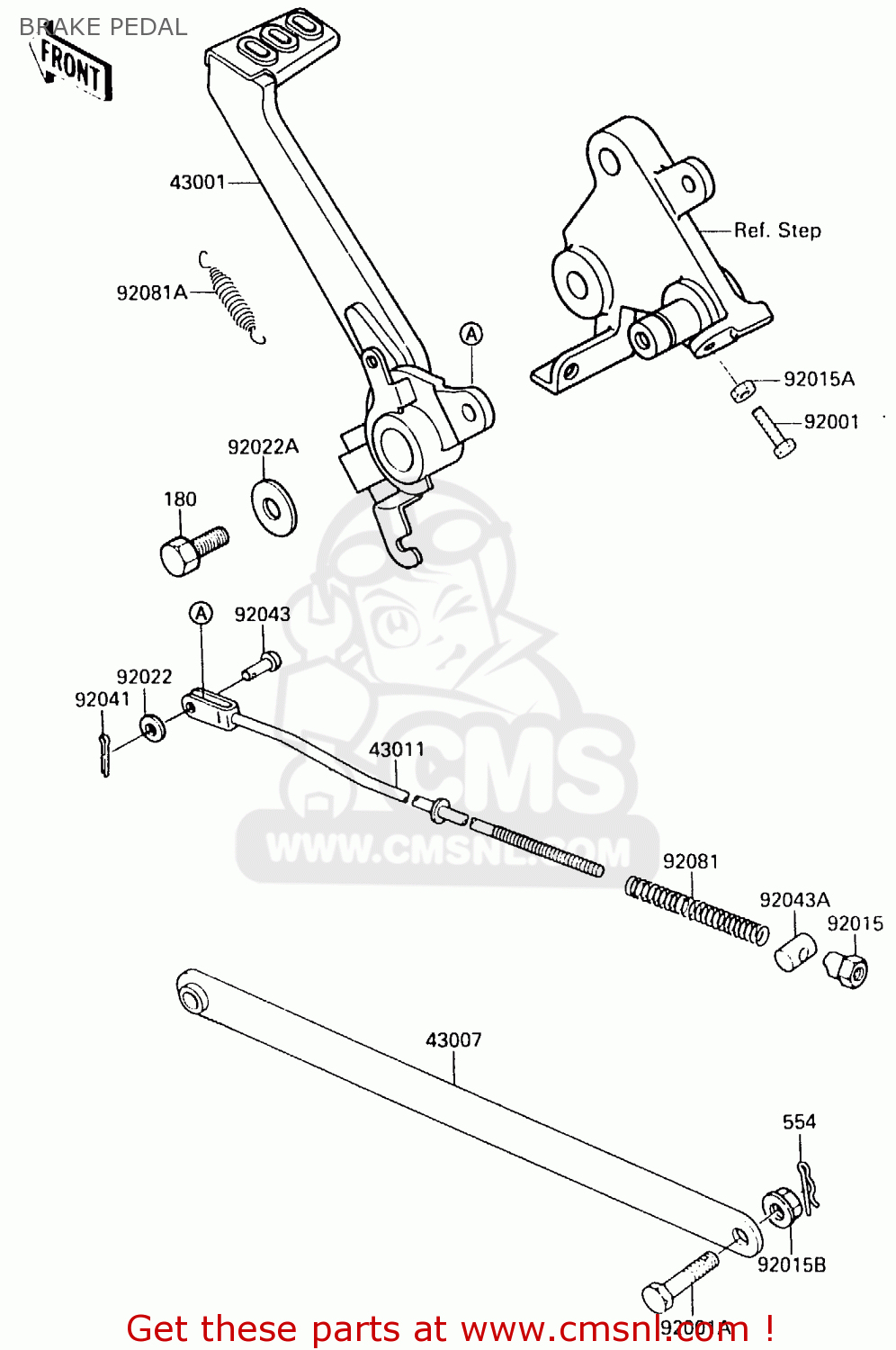

Brake pedal diagramma EX500B4 1991 EUROPE FR GR IT NR SP

BRAKE PEDAL EX500B4 1991 EUROPE FR GR IT NR SP
BRAKE PEDAL EX500B4 1991 EUROPE FR GR IT NR SP
i prezzi sono in EUR
rif
parte #
descrizione
quantità
43001
430011219
rif: 43001
LEVER-BRAKE,PEDAL
430011219
€ 65.50
43007
430071131
rif: 43007
ROD-TORQUE
430071131
€ 23.00
43011
430111136
rif: 43011
ROD-BRAKE
430111136
€ 12.50
92001
920011090
rif: 92001
BOLT,HEX HEAD,6X25
920011090
€ 2.50
92001A
92003034
rif: 92001A
BOLT-HEX HEAD,10MM
92003034
€ 8.50
92015
92015042
rif: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92015A
920151391
rif: 92015A
NUT,6MM
920151391
€ 1.50
92015B
920151428
rif: 92015B
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221556
rif: 92022
WASHER,STEP,RR
920221556
€ 0.50
92022A
920221557
rif: 92022A
WASHER,6.5X20X1.6
920221557
€ 1.00
92041
920411052
rif: 92041
COTTER
920411052
€ 1.00
92043
92043064
rif: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.00
92043A
92043065
rif: 92043A
PIN-BRAKE ROD
92043065
€ 3.50
92081
43012001
rif: 92081
SPRING,BRAKE ROD
43012001
€ 3.00
92081A
920811147
rif: 92081A
SPRING,BRAKE PEDAL
920811147
€ 7.50
180
180D0616
rif: 180
BOLT-UPSET-WS
180D0616
€ 0.50
554
554A0800
rif: 554
PIN-SNAP,8MM
554A0800
€ 1.00
