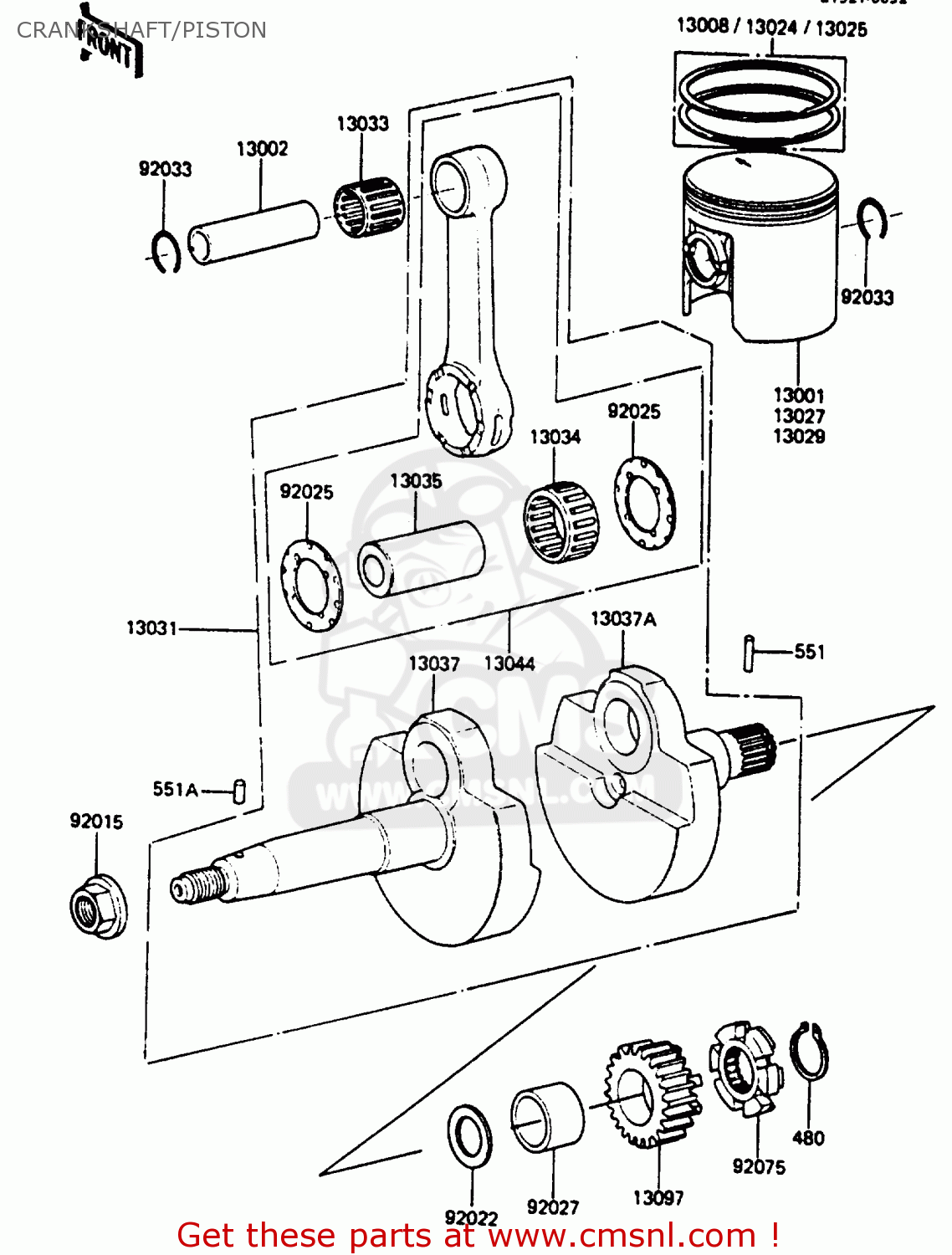

CRANKSHAFT/PISTON

rif

parte #

descrizione

quantità

13001

130011069
rif: 13001

PISTON-ENGINE,STD

€ 33.00

13002

130021015
rif: 13002

PIN-PISTON

€ 14.00

13008

130085039
rif: 13008

RING-SET-PISTON,STD

€ 44.00

13024

130241009
rif: 13024

RING-SET-PISTON LL,O/

€ 39.00

13025

130251009
rif: 13025

RING-SET-PISTON L,O/S

€ 39.00

13027

130271025
rif: 13027

PISTON-ENGINE LL

€ 39.50

13029

130291025
rif: 13029

PISTON-ENGINE L

€ 39.50

13031

130311057
rif: 13031

CRANKSHAFT-COMP

€ 235.50

13033

130331009
rif: 13033

BEARING-SMALL END

€ 19.00

13034

130341029
rif: 13034

BEARING-BIG END,PK18X

€ 26.50

13035

130351055
rif: 13035

PIN-CRANK

€ 16.50

13037

130371109
rif: 13037

CRANKSHAFT

€ 123.00

13037A

130371110
rif: 13037A

CRANKSHAFT

€ 121.50

13044

130445020
rif: 13044

SET-CONNECTING ROD

€ 108.00

13097

130971052
rif: 13097

GEAR-PRIMARY SPUR

€ 36.50

92015

92015077
rif: 92015

NUT, 10MM

€ 3.00

92022

92022268
rif: 92022

WASHER,16.3X24X1

€ 5.00

92025

920251199
rif: 92025

SHIM,CRANK SHAFT

€ 4.50

92027

920271358
rif: 92027

COLLAR,15.65X19X13

€ 4.50

92033

92036007
rif: 92033

CIRCLIP-PISTON PIN

€ 2.50

92075

920751325
rif: 92075

DAMPER,GEAR

€ 17.00

480

480J1400
rif: 480

CIRCLIP-TYPE-C,14MM

€ 2.50

551

551A0212
rif: 551

PIN-DOWEL,2X12

€ 1.50

551A

551A0306
rif: 551A

PIN,DOWEL,3X6

€ 1.00
