HULL FITTINGS

JT1100-A1 JETSKI1100STX 1997 EUROPE FR AS

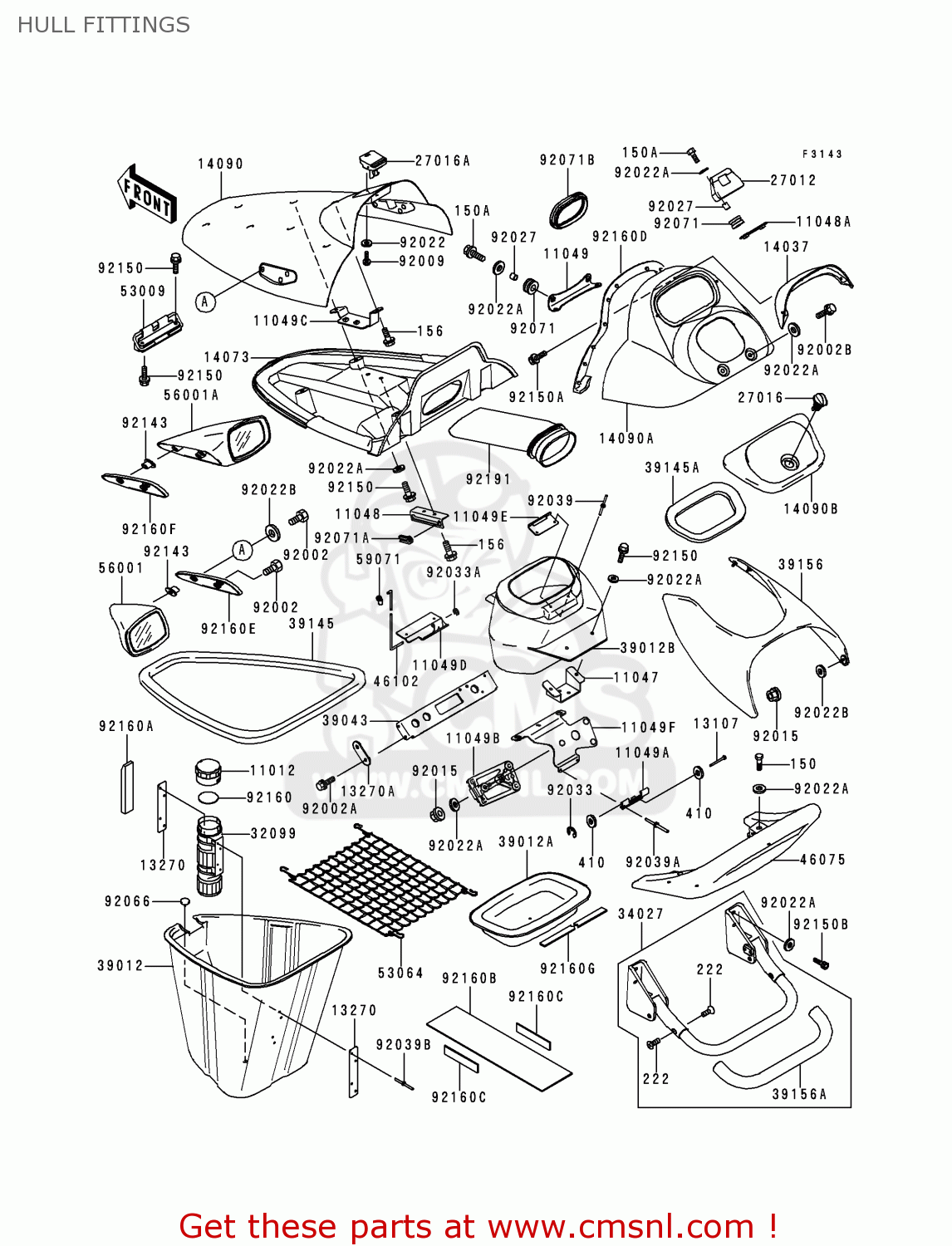

Hull fittings diagramma JT1100-A1 JETSKI1100STX 1997 EUROPE FR AS

HULL FITTINGS JT1100-A1 JETSKI1100STX 1997 EUROPE FR AS
HULL FITTINGS JT1100-A1 JETSKI1100STX 1997 EUROPE FR AS
i prezzi sono in EUR
rif
parte #
descrizione
quantità
11012
110123766
rif: 11012
CAP,FIRE EXTINGUISHER
110123766
€ 10.00
11047
110473761
rif: 11047
BRACKET,FUEL FILTER
€ 29.00
11048
110483777
rif: 11048
BRACKET,HATCH COVER
€ 9.50
11048A
110483778
rif: 11048A
BRACKET,HATCH COVER L
€ 8.00
11049
110493716
rif: 11049
BRACKET,HANDLE COVER
€ 22.00
11049A
110493717
rif: 11049A
BRACKET
€ 9.00
11049B
110493718
rif: 11049B
BRACKET
€ 74.00
11049C
110493736
rif: 11049C
BRACKET,HATCH COVER
€ 35.50
11049D
110493737
rif: 11049D
BRACKET,HATCH COVER
110493737
€ 39.00
11049E
110493739
rif: 11049E
BRACKET,CENTER STORAG
€ 7.00
11049F
110493743
rif: 11049F
BRACKET
€ 61.50
13107
131073745
rif: 13107
SHAFT,3X32
€ 1.50
13270
132703729
rif: 13270
PLATE,FIRE EXTINGUISH
€ 12.50
13270A
132703835
rif: 13270A
PLATE
€ 3.50
14037
1403737076Z
rif: 14037
SCREEN,METER,F.BLACK
€ 30.50
14073
140733758
rif: 14073
DUCT,FR
€ 196.50
14090
140903769VK
rif: 14090
COVER,HATCH,P.C.GRAY
€ 174.50
14090A
140903770VK
rif: 14090A
COVER,HANDLE,P.C.GRAY
€ 208.50
14090B
140903771VK
rif: 14090B
COVER,CENTER STORAGE,
€ 70.50
27012
270123803
rif: 27012
HOOK,HATCH COVER LOCK
€ 10.50
27016
270163733
rif: 27016
LOCK-ASSY
270163733
€ 32.50
27016A
270163737
rif: 27016A
LOCK-ASSY,HATCH COVER
€ 91.00
32099
320993769
rif: 32099
CASE,FIRE EXTINGUISHE
320993769
€ 18.50
34027
340273703
rif: 34027
STEP-ASSY
€ 538.50
39012
390123715
rif: 39012
CASE-STORAGE,FR
€ 28.00
39012A
390123716
rif: 39012A
CASE-STORAGE
€ 9.00
39012B
390123717
rif: 39012B
CASE-STORAGE,CNT
€ 17.00
39043
390433701
rif: 39043
CROSSMEMBER-COMP
€ 119.00
39145
391453746
rif: 39145
TRIM-SEAL,L=1380
€ 17.50
39145A
391453751
rif: 39145A
TRIM-SEAL
€ 32.00
39156
391563791PS
rif: 39156
PAD,KNEE,GRAY
€ 278.00
39156A
391563798
rif: 39156A
PAD,STEP
€ 9.50
46075
4607537456L
rif: 46075
GRIP,TAIL,F.RED
€ 313.00
46102
461023725
rif: 46102
ROD,HATCH COVER STOPP
€ 11.50
53009
530093723
rif: 53009
HINGE,HATCH COVER
€ 92.00
53064
530643701
rif: 53064
NET-CARGO
€ 190.50
56001
5600137096Z
rif: 56001
MIRROR-ASSY,LH,F.BLAC
€ 147.00
56001A
5600137106Z
rif: 56001A
MIRROR-ASSY,RH,F.BLAC
€ 147.00
59071
590713743
rif: 59071
JOINT
590713743
€ 4.00
150
150R0622
rif: 150
BOLT-WS
150R0622
€ 2.50
150A
150R0625
rif: 150A
BOLT-WS,6X25
€ 2.00
156
156R0612
rif: 156
BOLT-WP,6X12
156R0612
€ 2.00
222
222R0612
rif: 222
SCREW-CSK-RD-CROS
€ 1.00
410
410S0300
rif: 410
W-PLAIN-S,3MM
€ 1.00
92002
920023716
rif: 92002
BOLT
920023716
€ 3.50
92002A
920023755
rif: 92002A
BOLT,6X20
920023755
€ 2.50
92002B
920023763
rif: 92002B
BOLT,6X12
920023763
€ 2.50
92009
920093789
rif: 92009
SCREW,5X16
920093789
€ 2.50
92015
920153767
rif: 92015
NUT,6MM
920153767
€ 2.50
92022
920223041
rif: 92022
WASHER,5X16X1.5
920223041
€ 2.50
92022A
920223710
rif: 92022A
WASHER
920223710
€ 2.50
92022B
920223714
rif: 92022B
WASHER,6.2X20X2
920223714
€ 2.50
92027
920273705
rif: 92027
COLLAR,6.2X10X10
€ 5.50
92033
920333711
rif: 92033
RING-SNAP,2MM
920333711
€ 1.00
92033A
920333722
rif: 92033A
RING-SNAP,E-TYPE,4MM
€ 2.00
92039
920393712
rif: 92039
RIVET
920393712
€ 2.00
92039A
920393748
rif: 92039A
RIVET
€ 2.00
92039B
920393755
rif: 92039B
RIVET
920393755
€ 4.00
92066
920663752
rif: 92066
PLUG
920663752
€ 4.00
92071
920713716
rif: 92071
GROMMET
€ 3.00
92071A
920713812
rif: 92071A
GROMMET
920713812
€ 18.50
92071B
920713816
rif: 92071B
GROMMET
920713816
€ 4.00
92143
921433763
rif: 92143
COLLAR
€ 6.50
92150
921503729
rif: 92150
BOLT,6X18
€ 2.50
92150A
921503760
rif: 92150A
BOLT,5X12
€ 5.50
92150B
921503775
rif: 92150B
BOLT
921503775
€ 3.00
92160
921603814
rif: 92160
DAMPER
921603814
€ 4.50
92160A
921603821
rif: 92160A
DAMPER
921603821
€ 5.50
92160B
921603839
rif: 92160B
DAMPER
€ 15.00
92160C
921603840
rif: 92160C
DAMPER
€ 3.00
92160D
921603867
rif: 92160D
DAMPER,HATCH COVER
€ 19.50
92160E
9216038696Z
rif: 92160E
DAMPER,MIRROR,LH,F.BL
9216038696Z
€ 26.50
92160F
9216038706Z
rif: 92160F
DAMPER,MIRROR,RH,F.BL
9216038706Z
€ 26.50
92160G
921603878
rif: 92160G
DAMPER
921603878
€ 4.00
92191
921913742
rif: 92191
TUBE
€ 40.00
