Il vostro catalogo delle parti di ricambio online

Handlebar

KSV700-B1 KFX700 2004 USA

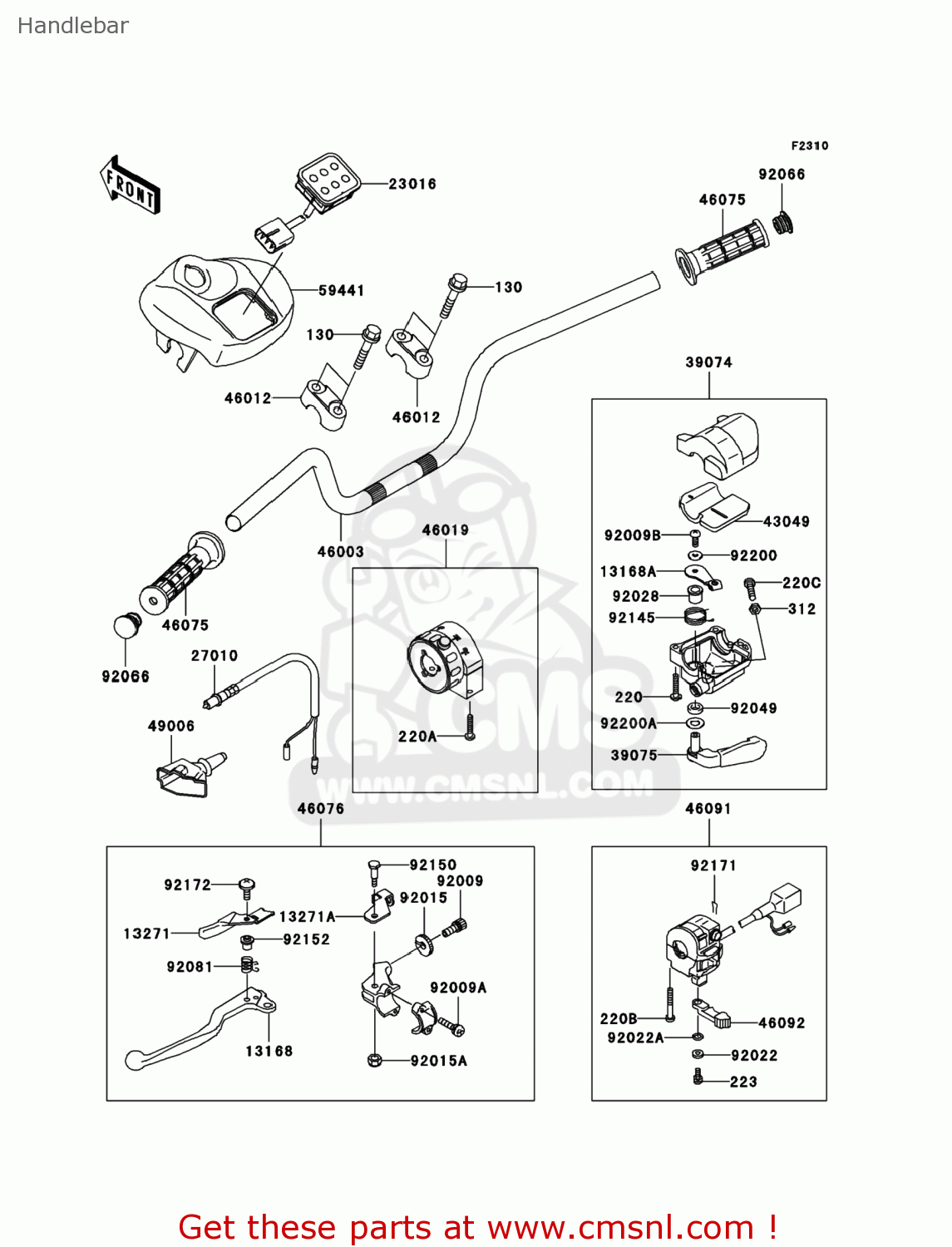

Handlebar diagramma KSV700-B1 KFX700 2004 USA

Handlebar KSV700-B1 KFX700 2004 USA
Handlebar KSV700-B1 KFX700 2004 USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
130
130P0860
rif: 130
BOLT-FLANGED
€ 1.00
13168
131680002
rif: 13168
LEVER,LH
131680002
€ 33.50
13168A
131681715
rif: 13168A
LEVER
131681715
€ 7.00
13271
132710011
rif: 13271
PLATE,LEVER LOCK
132710011
€ 10.50
13271A
132711259
rif: 13271A
PLATE,LOCK
132711259
€ 11.50
220
220C0520
rif: 220
SCREW-PAN-CROS
220C0520
€ 0.50
220A
220C0525
rif: 220A
SCREW-PAN-CROS
220C0525
€ 2.00
220B
220C0535
rif: 220B
SCREW-PAN-CROS
220C0535
€ 1.50
220C
220C0625
rif: 220C
SCREW-PAN-CROS,6X25,B
220C0625
€ 2.00
223
223C0512
rif: 223
SCREW-PAN-WS-CROS
223C0512
€ 2.50
23016
230160002
rif: 23016
LAMP-ASSY
230160002
€ 85.50
27010
270101294
rif: 27010
SWITCH,BRAKE
270101294
€ 25.00
312
312C0600
rif: 312
NUT-HEX,6MM,BLACK
€ 2.00
39074
390740001
rif: 39074
LEVER-ASSY-THROTTLE
390740001
€ 141.00
39075
390751062
rif: 39075
LEVER-THROTTLE
390751062
€ 22.50
43049
430491088
rif: 43049
PACKING (NAS)
430491088
€ 7.00
46003
460030001HN
rif: 46003
HANDLE,G.GRAY
460030001HN
€ 97.50
46012
460121168
rif: 46012
HOLDER-HANDLE
460121168
€ 10.50
46019
460191122
rif: 46019
GRIP-ASSY,SHIFT CONTR
€ 67.50
46075
460751210
rif: 46075
GRIP
€ 33.00
46076
460761258
rif: 46076
LEVER-ASSY-GRIP,LH
€ 92.50
46091
460911848
rif: 46091
HOUSING-ASSY-CONTROL,
460911848
€ 178.00
46092
460921217
rif: 46092
LEVER-GRIP,CHOKE
460921217
€ 4.00
49006
490061261
rif: 49006
BOOT
490061261
€ 13.50
59441
5944111736D
rif: 59441
COVER-HANDLE,BLACK
5944111736D
€ 25.00
92009
920091435
rif: 92009
SCREW-CABLE ADJUST
920091435
€ 10.50
92009A
920091841
rif: 92009A
SCREW,6X20
920091841
€ 3.50
92009B
920091959
rif: 92009B
SCREW
920091959
€ 1.50
92015
920151596
rif: 92015
NUT-LOCK
920151596
€ 5.50
92015A
920151829
rif: 92015A
NUT
€ 3.00
92022
920221837
rif: 92022
WASHER,5MM
920221837
€ 1.50
92022A
920221838
rif: 92022A
WASHER,WAVE,5MM
920221838
€ 1.50
92028
920281986
rif: 92028
BUSHING
920281986
€ 2.50
92049
920491578
rif: 92049
SEAL-OIL
920491578
€ 3.00
92066
920661550
rif: 92066
PLUG
920661550
€ 6.50
92081
920811358
rif: 92081
SPRING,CLUTCH LOCK RE
920811358
€ 3.00
92145
921451392
rif: 92145
SPRING
921451392
€ 2.50
92150
921501420
rif: 92150
BOLT
921501420
€ 12.00
92152
921521176
rif: 92152
COLLAR
921521176
€ 2.50
92171
921711095
rif: 92171
CLAMP,CLIP
921711095
€ 2.00
92172
921720078
rif: 92172
SCREW
921720078
€ 1.50
92200
922001558
rif: 92200
WASHER
922001558
€ 3.00
92200A
922001559
rif: 92200A
WASHER
922001559
€ 3.00
