TAILLIGHT

VT125C SHADOW 1999 (X) GERMANY / KPH

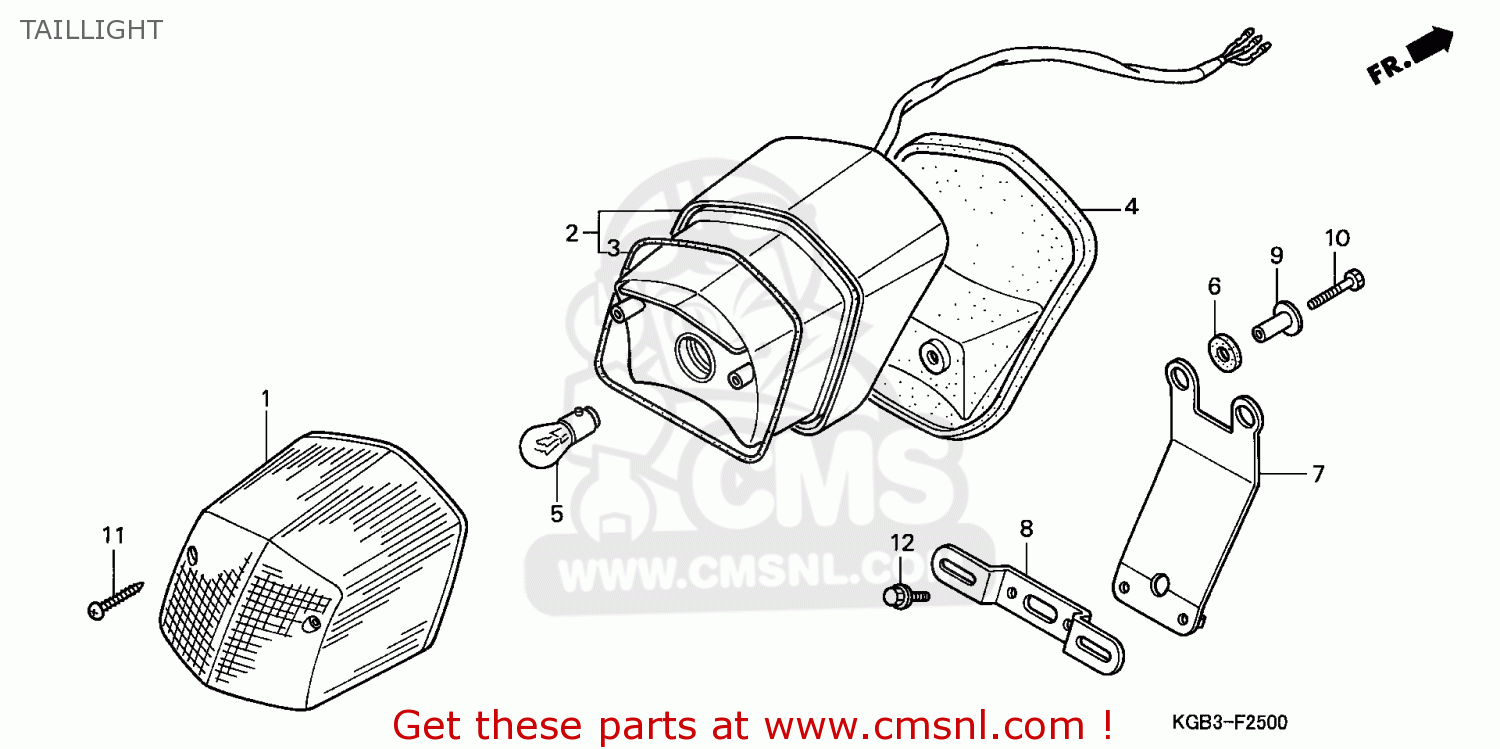

Taillight diagramma VT125C SHADOW 1999 (X) GERMANY / KPH

TAILLIGHT VT125C SHADOW 1999 (X) GERMANY / KPH
TAILLIGHT VT125C SHADOW 1999 (X) GERMANY / KPH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
33702KGB611
rif: 1
LENS,TAIL LIGHT
33702KGB611
€ 45.00
2
33704KGB611
rif: 2
BASE COMP,TAIL LI
33704KGB611
€ 65.00
3
33709KGB611
rif: 3
PACKINGTAIL LIGHT
33709KGB611
€ 17.00
4
33710KGB610
rif: 4
RUBBER,TAIL LIGHT
33710KGB610
€ 14.00
5
34906447711
rif: 5
BULB,TAILLIGHT
34906447711
€ 3.50
6
80111KW3000
rif: 6
GROMMET,TAILLIGHT
80111KW3000
€ 2.00
7
80126KGB610
rif: 7
STAY,RR NUMBER PL
€ 12.00
8
84701KGB610
rif: 8
BRKT,NUMBER PLATE
€ 14.50
9
90502ML7920
rif: 9
COLLAR,RR.WINKER
90502ML7920
€ 3.00
10
92101050250A
rif: 10
BOLT,HEX.5X25
92101050250A
€ 1.00
11
9390134580
rif: 11
SCREW,TAP 4X20
9390134580
€ 1.00
