TOOLS

NX250 DOMINATOR 1988 (J) GERMANY / 15P

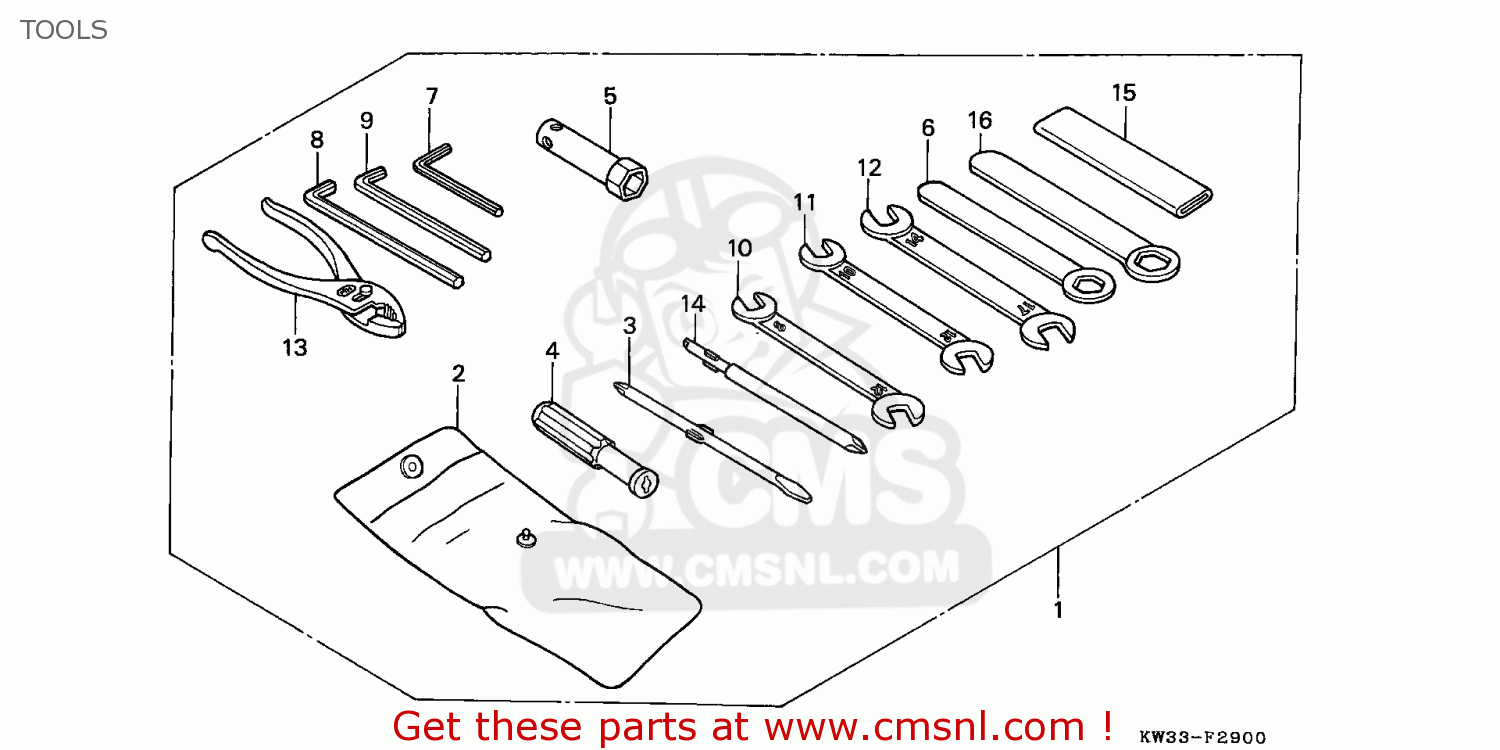

Tools diagramma NX250 DOMINATOR 1988 (J) GERMANY / 15P

TOOLS NX250 DOMINATOR 1988 (J) GERMANY / 15P

i prezzi sono in EUR

rif

parte #

descrizione

quantità

1

89010KW3000
rif: 1

TOOL SET

€ 77.50

2

89101198000
rif: 2

BAG,TOOL,185

€ 19.50

3

89102538000
rif: 3

SCREWDRIVER

€ 2.50

4

89103538000
rif: 4

GRIP,DRIVER

€ 4.50

5

89216KW3000
rif: 5

BOX,WRENCH,P16

€ 14.50

6

89218MF5000
rif: 6

FYE WRENCH,17

€ 8.50

7

89221KW3000
rif: 7

WRENCH,HEX.,4MM

€ 6.50

8

89221MB0000
rif: 8

WRENCH 6,HEX.

€ 9.00

9

89221429000
rif: 9

WRENCH,HEX.,5MM

€ 8.00

10

9900108120
rif: 10

SPANNER TLS812

€ 6.50

11

9900110120
rif: 11

SPANNER, 10X12

€ 6.50

12

9900114170
rif: 12

SPANNER, 14X17

€ 8.50

13

89210GBJJ00
rif: 13

PLIERS 135

€ 13.50

14

9900320000
rif: 14

DRIVER

€ 2.50

15

9900612000
rif: 15

HANDLE,EYE WRENCH

€ 7.50

16

9900624000
rif: 16

EYE WRENCH, 24

€ 15.00
