CARBURETOR ASSEMBLY

GL1500A GOLDWING ASPENCADE 1994 (R) USA CALIFORNIA

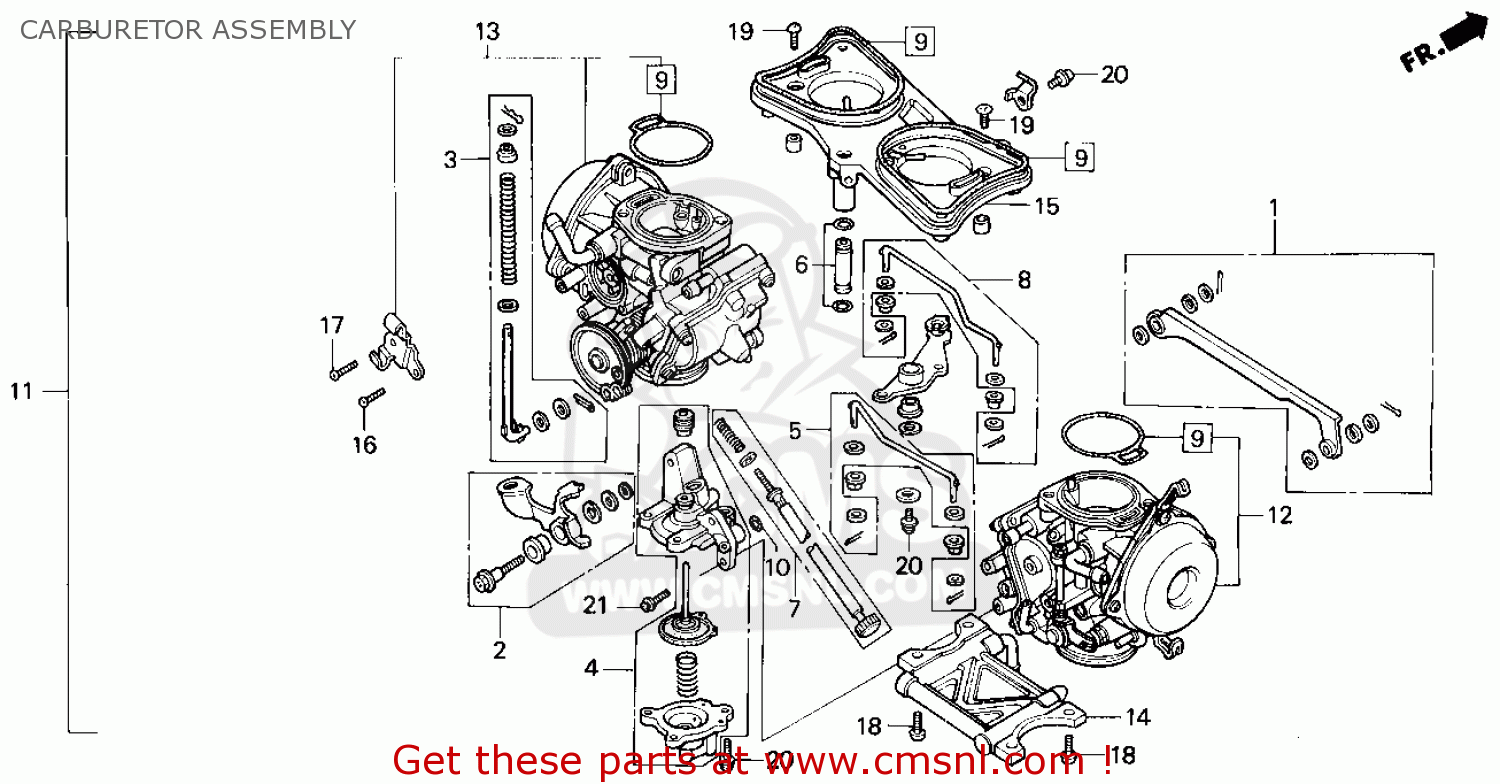

Carburetor assembly diagramma GL1500A GOLDWING ASPENCADE 1994 (R) USA CALIFORNIA

CARBURETOR ASSEMBLY GL1500A GOLDWING ASPENCADE 1994 (R) USA CALIFORNIA
CARBURETOR ASSEMBLY GL1500A GOLDWING ASPENCADE 1994 (R) USA CALIFORNIA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
16017MT8000
rif: 1
LEVER SET,LINK
€ 40.00
2
16018MN5004
rif: 2
ARM SET,PUMP
16018MN5004
€ 57.00
3
16019MY4000
rif: 3
PUMP ROD SET
€ 24.00
3
16019MAM000
rif: 3
PUMP ROD SET
€ 24.00
4
16021MW8000
rif: 4
DIAPHRAGM SET
16021MW8000
€ 127.00
5
16025MN5004
rif: 5
ROD SET.,A,STARTE
€ 18.50
6
16026MY4000
rif: 6
FUEL JOINT SET
€ 27.50
6
16026MAM000
rif: 6
FUEL JOINT SET
16026MAM000
€ 27.50
7
16028MN5004
rif: 7
SCREW SET B
€ 32.00
8
16035MN5004
rif: 8
ROD SET B,STERTER
€ 18.00
9
16040MY4000
rif: 9
GASKET SET,B
16040MY4000
€ 15.50
10
16075MY4000
rif: 10
O-RING
16075MY4000
€ 14.50
11
16100MY4010
rif: 11
A
CARBURETOR ASSY.
€ 1,152.00
11
16100MY4741
rif: 11
AC
CARBURETOR ASSY.
€ 1,152.00
12
16101MY4010
rif: 12
A
CARBURETOR ASSY., R.
€ 584.00
12
16101MY4741
rif: 12
AC
CARBURETOR ASSY., R.
€ 584.00
13
16102MY4010
rif: 13
A
CARBURETOR ASSY.,
€ 651.00
13
16102MY4741
rif: 13
AC
CARBURETOR ASSY., L.
€ 584.00
14
16119MN5004
rif: 14
PLATE COMP.,STAY
16119MN5004
€ 66.00
15
16188MT8000
rif: 15
BASE COMP.,CLEANE
€ 117.00
16
93500040120H
rif: 16
PAN SCREW 4X12
93500040120H
€ 0.50
16
93500040121H
rif: 16
SCREW,PAN,4X12
€ 0.50
17
9350005012
rif: 17
SCREW CROSS 5X12
9350005012
€ 1.50
17
93500050120A
rif: 17
SCREW,CROSS,5X12
93500050120A
€ 0.50
17
935000501200
rif: 17
SCREW,PAN,5X12
€ 0.50
17
93500050121A
rif: 17
SCREW,CROSS,5X12
93500050121A
€ 0.50
18
9350006014
rif: 18
SCREW CROSS 6X14
9350006014
€ 1.00
18
93500060140A
rif: 18
SCREW CROSS 6X14
93500060140A
€ 1.00
18
93500060141A
rif: 18
SCREW,PAN 6X14
€ 1.00
19
93500060160A
rif: 19
SCREW,CROSS 6X16
93500060160A
€ 1.00
19
93500060161A
rif: 19
SCREW,PAN,6X16
€ 1.00
20
938920401200
rif: 20
SCREW-WASH.,4X12
938920401200
€ 1.00
20
938920401210
rif: 20
SCREW-WASHER,4X12
€ 1.00
21
938920501410
rif: 21
SCREW WASH.5X14
€ 0.50
