GEARSHIFT DRUM

CG125M 2001 (1) ENGLAND / MKH

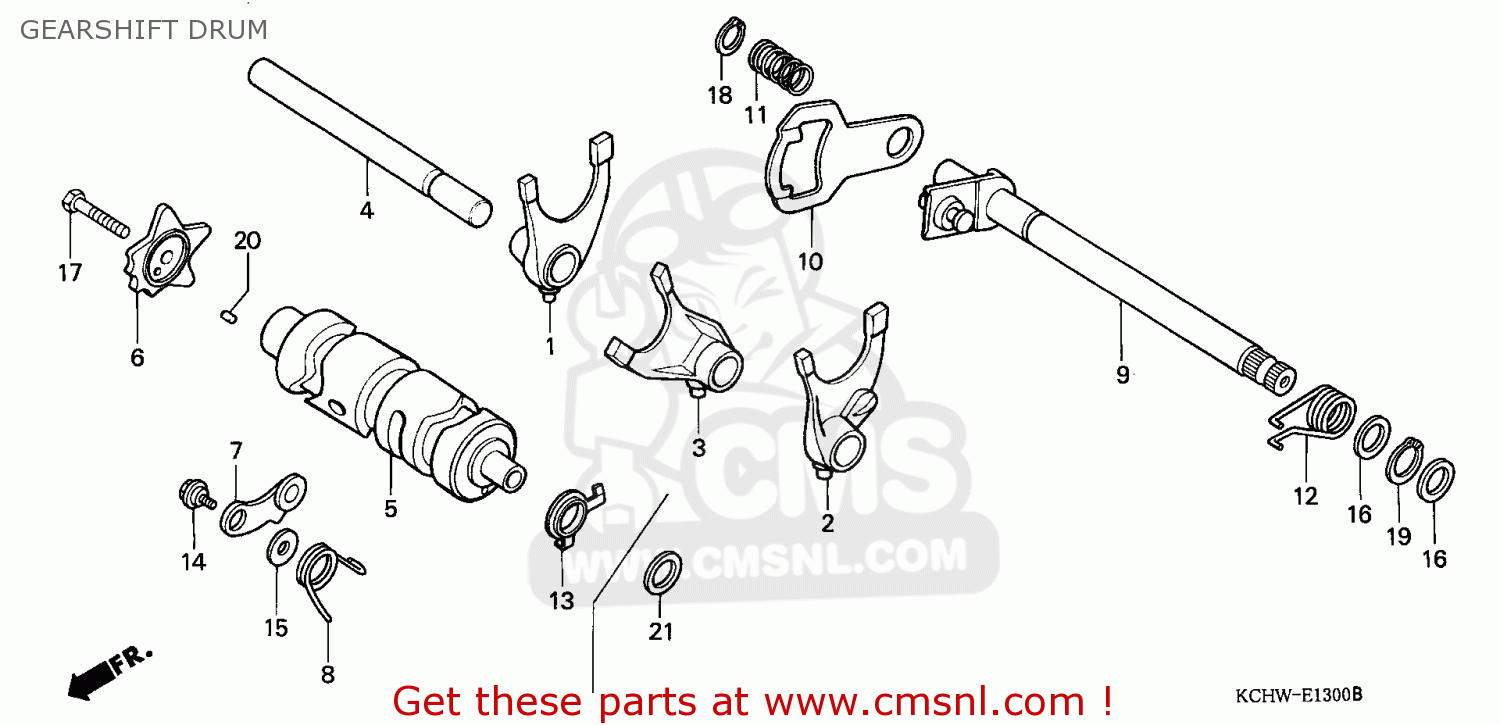

Gearshift drum diagramma CG125M 2001 (1) ENGLAND / MKH

GEARSHIFT DRUM CG125M 2001 (1) ENGLAND / MKH
GEARSHIFT DRUM CG125M 2001 (1) ENGLAND / MKH
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
24211107000
rif: 1
FORK,R,GEAR.SHIFT
24211107000
€ 39.00
2
24221427010
rif: 2
FORK,L.GEARSHIFT
24221427010
€ 33.00
3
24231107010
rif: 3
FORK,CTR.GEAR
24231107010
€ 34.00
4
24241KCS650
rif: 4
SHAFT,GEAR SHIFT
24241KCS650
€ 11.00
5
24301383000
rif: 5
DRUM, GEAR SHIFT
24301383000
€ 77.50
6
24411KCN000
rif: 6
CAM,GEAR SHIFT
24411KCN000
€ 30.00
7
24430KW1900
rif: 7
STOPPER.COMP,GEAR
24430KW1900
€ 8.50
8
24435KGA900
rif: 8
SPG,SHIFT DRUM ST
24435KGA900
€ 3.50
9
24610KGA900
rif: 9
SPINDLE,COMP,GEAR
24610KGA900
€ 78.00
10
24621107760
rif: 10
PLATE,GEAR SHIFT
24621107760
€ 16.00
11
24631107000
rif: 11
SPRING,PLATE
24631107000
€ 2.50
12
24651107000
rif: 12
SPRING,RETURN
24651107000
€ 4.00
13
35753KG2951
rif: 13
ROTOR,NEUTRAL SWI
35753KG2951
€ 3.50
14
90023KW1900
rif: 14
PIVOT,GEARSHIFT D
€ 1.50
15
90408KW1900
rif: 15
WASHER,6MM
90408KW1900
€ 1.00
16
90451001000
rif: 16
WASHER, THRUST, 1
90451001000
€ 2.00
17
93101060250A
rif: 17
BOLT,HEX.,6X25
€ 1.00
18
9451012000
rif: 18
CIRCLIP,EX,12
9451012000
€ 1.00
19
9451014000
rif: 19
CIRCLIP,EX,14
9451014000
€ 1.00
20
9622040100
rif: 20
ROLLER,4X10
9622040100
€ 1.00
