FRONT FORK

CBF1000A 2006 (6) FRANCE / ABS CMF

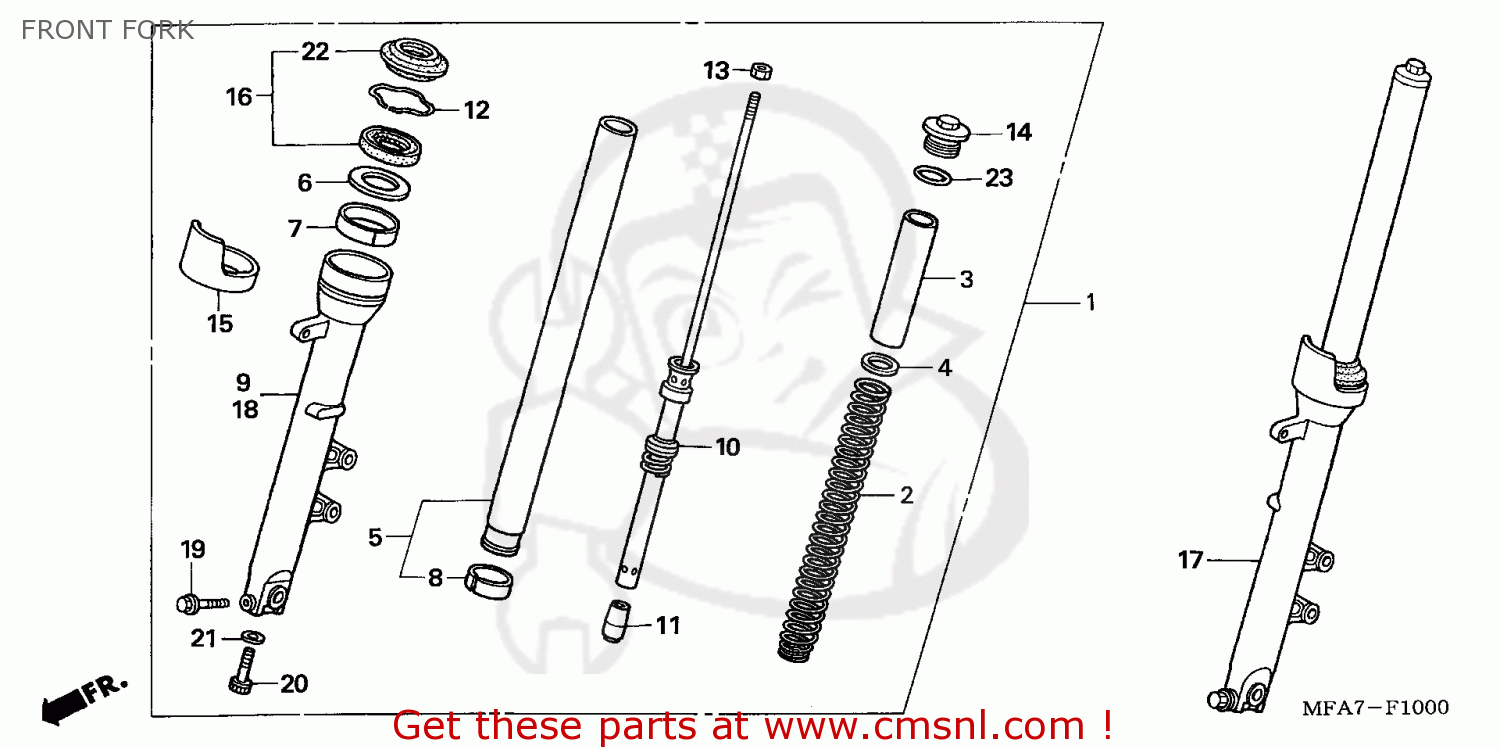

Front fork diagramma CBF1000A 2006 (6) FRANCE / ABS CMF

FRONT FORK CBF1000A 2006 (6) FRANCE / ABS CMF
FRONT FORK CBF1000A 2006 (6) FRANCE / ABS CMF
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
51400MFAD01
rif: 1
FORK ASSY,R FRONT
€ 820.50
2
51401MFAD01
rif: 2
SPRING,FR FORK
51401MFAD01
€ 60.00
3
51402MV8901
rif: 3
COLLAR,SPRING (SH
51402MV8901
€ 13.00
4
51403MBL611
rif: 4
SEAT,SPRING
51403MBL611
€ 4.00
5
51410MFAD01
rif: 5
PIPE COMP,FR FORK
51410MFAD01
€ 259.50
6
51412MBL611
rif: 6
RING,BUCK UP
51412MBL611
€ 7.00
7
51414KCR003
rif: 7
BUSH,GUIDE
51414KCR003
€ 7.50
8
51415KCR003
rif: 8
BUSH,SLIDER
51415KCR003
€ 15.00
9
51420MFAD01
rif: 9
CASE,R BOTTOM
€ 301.00
10
51430MFAD01
rif: 10
DAMPER COMP,FRONT
€ 304.00
11
51432MFAD01
rif: 11
PIECE,OIL LOCK
51432MFAD01
€ 19.00
12
51447MBL611
rif: 12
RING,OIL SEAL STO
51447MBL611
€ 4.50
13
51451MAJG41
rif: 13
NUT,HEX 10MM
51451MAJG41
€ 2.50
14
51455MFAD01
rif: 14
BOLT,FR FORK
51455MFAD01
€ 29.00
15
51460MFAD01
rif: 15
PROTECTOR,FORK PI
51460MFAD01
€ 8.50
16
51490MEED01
rif: 16
SEAL SET,FR FORK
51490MEED01
€ 42.50
17
51500MFAD01
rif: 17
FORK ASSY,L FRONT
€ 820.50
18
51520MFAD01
rif: 18
CASE,L BOTTOM
51520MFAD01
€ 301.00
19
90109MR7000
rif: 19
BOLT,FLANGE,8X45
90109MR7000
€ 5.00
20
90116MFAD01
rif: 20
BOLT,SOCKET 8MM
90116MFAD01
€ 6.50
21
90544283000
rif: 21
WASHER,SPL.,8MM
90544283000
€ 2.50
22
91254MEED01
rif: 22
SEAL,DUST
91254MEED01
€ 15.50
23
91356KF0003
rif: 23
O-RING
91356KF0003
€ 4.50
