CYLINDER HEAD - SPARK PLUG

CB250K0 FRANCE

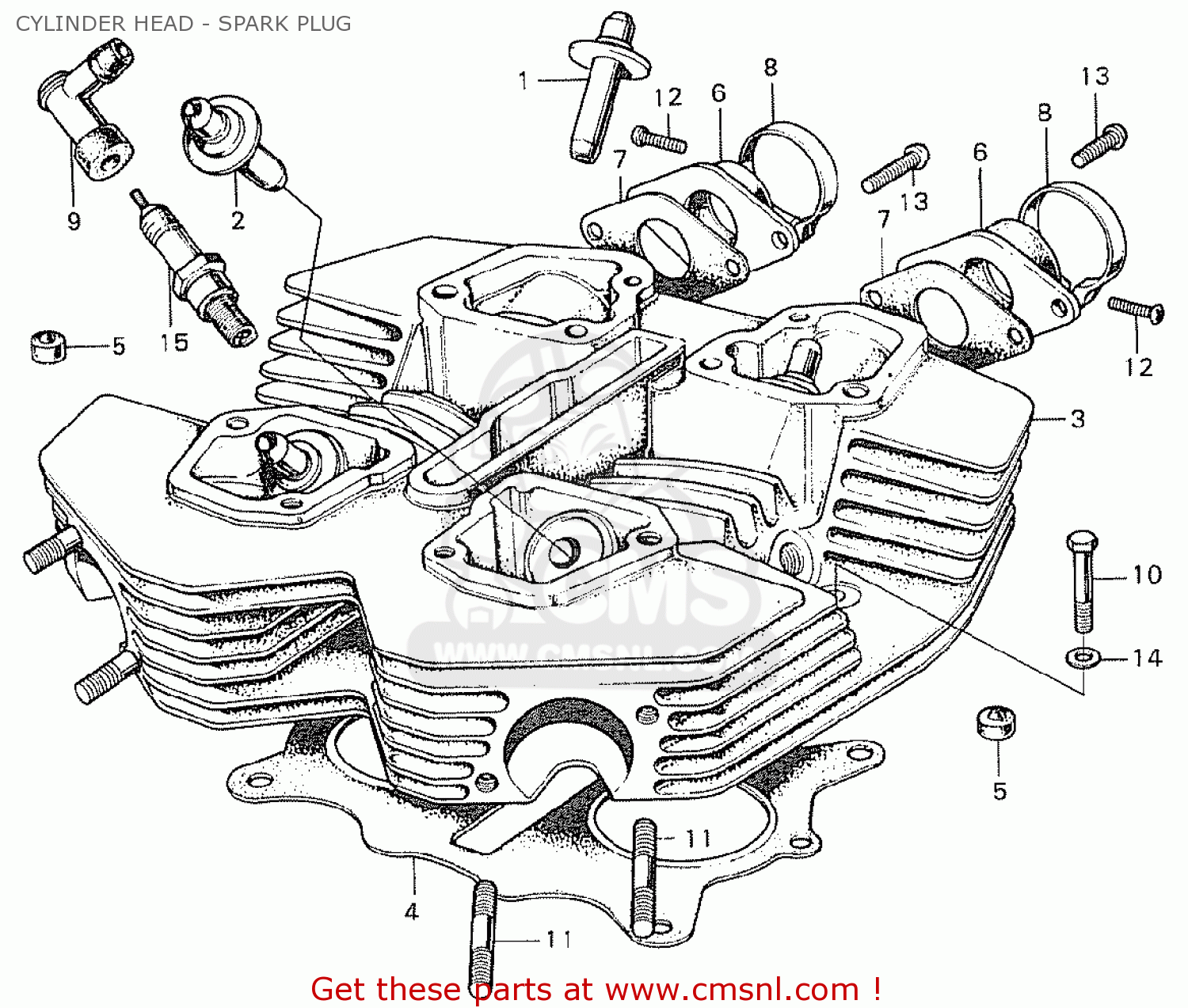

Cylinder head - spark plug diagramma CB250K0 FRANCE

CYLINDER HEAD - SPARK PLUG CB250K0 FRANCE
CYLINDER HEAD - SPARK PLUG CB250K0 FRANCE
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
12025286300
rif: 1
GUIDE IN VALVE
12025286300
€ 47.50
2
12027286300
rif: 2
GUIDE EX VALVE
12027286300
€ 43.50
3
12200286050
rif: 3
1002714
HEAD COMP, CYLINDER
€ 3,569.50
3
12200286060
rif: 3
1013981
1002715
HEAD COMP, CYLINDER
€ 3,569.50
3
12200286070
rif: 3
1018237
1013982
HEAD COMP, CYLINDER
€ 3,569.50
3
12200286080
rif: 3
1018238
HEAD COMP., CYLINDER
€ 3,569.50
4
12251286030
rif: 4
GASKET,CYLN.HEAD (MCA)
12251286030
€ 75.00
4
12251286333
rif: 4
1006087
GASKET,CYLN.HEAD
€ 75.00
4
12251286040
rif: 4
1013981
1006088
GASKET,CYLN.HEAD
€ 75.00
4
12251286050
rif: 4
1013982
GASKET,CYLN.HEAD
€ 75.00
5
12620286000
rif: 5
RUBBER,INSERT
12620286000
€ 5.00
6
16211286040
rif: 6
INSULATOR,CARB.
16211286040
€ 60.50
7
16229286000
rif: 7
1010897
GASKET INSULATOR (MCA)
16229286000
€ 5.00
8
17255224000
rif: 8
BAND A, TUBE
€ 13.00
9
30600568620
rif: 9
TERMINAL ASSY.
30600568620
€ 41.50
10
9200006025
rif: 10
BOLT,HEX 6X25
9200006025
€ 1.00
11
927000605605
rif: 11
BOLT, STUD (6X56)
€ 4.00
11
90051286000
rif: 11
1002714
BOLT STUD 6X52
90051286000
€ 4.00
11
927000805605
rif: 11
1002715
BOLT STUD 8X56
927000805605
€ 2.00
12
93500040200A
rif: 12
SCREW,PAN,4X20
93500040200A
€ 1.00
13
9350006016
rif: 13
SCREW,PAN,6X16
9350006016
€ 1.00
14
9410106000
rif: 14
WASHER,PLAIN, 6MM
9410106000
€ 0.50
15
9807954810
rif: 15
PLUG,SPARK B-4E
9807954810
€ 4.50
15
9807956810
rif: 15
PLUG,SPARK B-6ES
9807956810
€ 6.00
15
9807957810
rif: 15
PLUG,SPARK B-7ES
€ 7.00
15
9807958810
rif: 15
PLUG,SPARK B-8ES
9807958810
€ 9.50
15
9807959810
rif: 15
PLUG,SPARK B-9ES
9807959810
€ 5.50
15
9807960810
rif: 15
PLUG,SPARK B-9ES
€ 5.50
