STEP / KICK STARTER ARM / SHIFT PEDA

C70 PASSPORT 1982 (C) USA

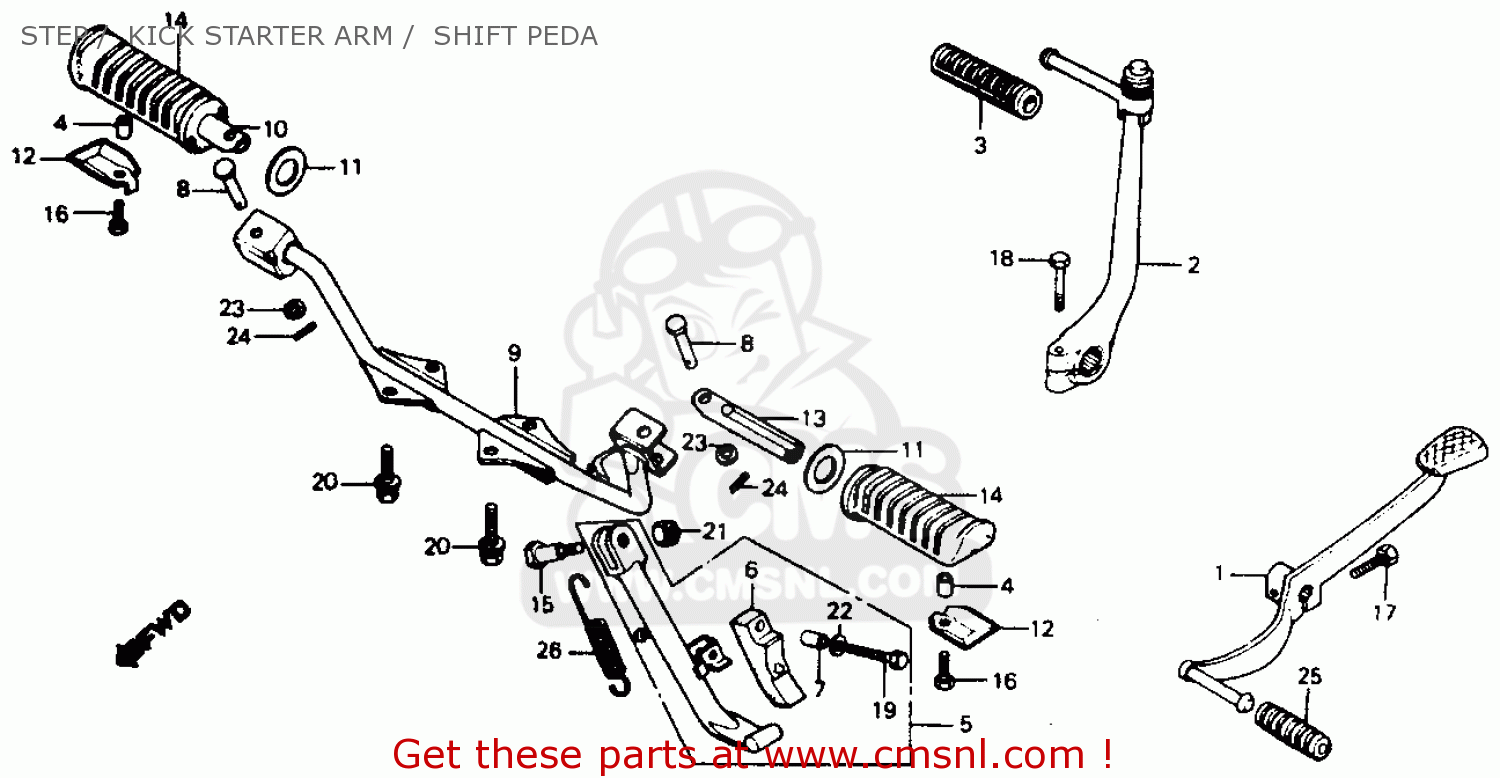

Step / kick starter arm / shift peda diagramma C70 PASSPORT 1982 (C) USA

STEP / KICK STARTER ARM / SHIFT PEDA C70 PASSPORT 1982 (C) USA
STEP / KICK STARTER ARM / SHIFT PEDA C70 PASSPORT 1982 (C) USA
i prezzi sono in EUR
rif
parte #
descrizione
quantità
1
24701GB5670
rif: 1
PEDAL,GEAR CHANGE
€ 25.50
2
28300GB6700
rif: 2
ARM,KICK STARTER
28300GB6700
€ 47.00
2
28300GB6770
rif: 2
ARM,KICK STARTER
€ 47.00
3
28311342000
rif: 3
RUBBER,STARTER
28311342000
€ 3.00
4
37243323000
rif: 4
COLLAR,METER SET
37243323000
€ 2.50
5
50520GB5670
rif: 5
BAR,SIDE STAND
€ 51.50
6
50548324760
rif: 6
RUBBER,STAND
50548324760
€ 7.50
7
50549356700
rif: 7
COLLAR,STAND
50549356700
€ 3.00
8
50603033000
rif: 8
PIN, BAR JOINT
50603033000
€ 2.50
8
50603033010
rif: 8
PIN,STEP BAR JOIN
50603033010
€ 2.50
9
50610GB5670
rif: 9
BAR COMP.,STEP
€ 53.00
10
50612163670
rif: 10
BAR,R.STEP
50612163670
€ 14.50
11
50614413000
rif: 11
WASHER,MAIN STEP
50614413000
€ 4.00
12
50619163670
rif: 12
STPR.,STEP RUBBER
50619163670
€ 4.00
13
50643163670
rif: 13
BAR,L.STEP
50643163670
€ 14.50
14
50661426000
rif: 14
RUBBER,STEP
50661426000
€ 16.00
15
90108223000
rif: 15
SCREW,STAND PIVOT
90108223000
€ 4.50
16
9200006016
rif: 16
BOLT,HEX., 6X16
9200006016
€ 0.50
16
92000060160A
rif: 16
BOLT,HEX 6X16
92000060160A
€ 0.50
16
92000060161A
rif: 16
BOLT,HEX.,6X16
€ 0.50
16
92100060160A
rif: 16
BOLT,HEX.,6X16
€ 0.50
16
92101060160A
rif: 16
BOLT,HEX.,6X16
92101060160A
€ 0.50
16
92200060160A
rif: 16
BOLT,HEX,6X16
€ 0.50
17
9200006020
rif: 17
BOLT,HEX 6X20
9200006020
€ 1.00
17
92101060200A
rif: 17
BOLT,HEX.,6X20
92101060200A
€ 1.00
18
9200006022
rif: 18
BOLT,HEX.6X22
€ 1.00
18
920000602200
rif: 18
BOLT HEX 6X22
920000602200
€ 1.00
18
92101060220A
rif: 18
BOLT,HEX.,6X22
92101060220A
€ 1.00
19
9200006028
rif: 19
BOLT,HEX 6X28
9200006028
€ 1.50
19
92101060280A
rif: 19
BOLT,HEX.,6X28
92101060280A
€ 1.50
20
934020802000
rif: 20
BOLT-WASHER,8X20
934020802000
€ 1.50
20
934120802000
rif: 20
BOLT-WASH,8X20
934120802000
€ 1.50
20
9348208020
rif: 20
BOLT-WASHER,8X20
€ 1.50
20
934820802000
rif: 20
BOLT-WASHER,8X20
934820802000
€ 1.50
21
94002100000S
rif: 21
NUT,HEX.,10MM
94002100000S
€ 1.00
22
9410106000
rif: 22
WASHER,PLAIN, 6MM
9410106000
€ 0.50
22
9410106080
rif: 22
WASHER PLAIN 6MM
9410106080
€ 1.00
23
9410108000
rif: 23
WASHER,PLAIN,8MM
9410108000
€ 1.00
24
9420116150
rif: 24
PIN,COTTER 1.6X15
9420116150
€ 0.50
24
9420116250
rif: 24
PIN SPLIT,1.6
9420116250
€ 1.00
25
9501140000
rif: 25
RUB.,CHANGE PEDAL
9501140000
€ 1.50
26
9501472402
rif: 26
SPRING,D STAND
9501472402
€ 4.50
