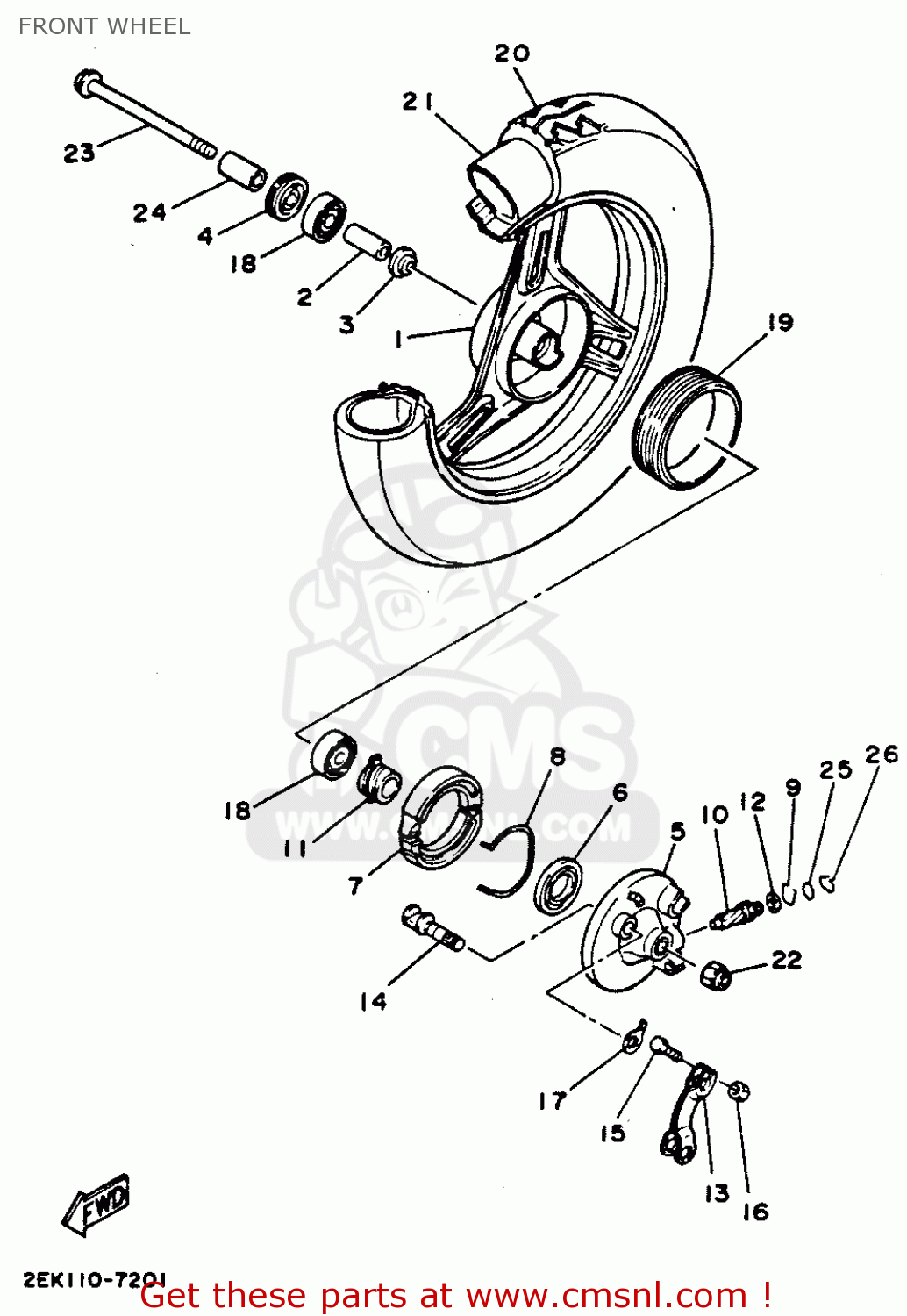

FRONT WHEEL

ref

pièce #

description

quantité

1

25K251800035
ref: 1
SILVER

FRONT WHEEL COMP.

€ 157.00

2

9056010236
ref: 2

SPACER (25K)

€ 5.00

3

25K2511600
ref: 3

FLANGE, SPACER 2

€ 1.50

4

9310617015
ref: 4

OIL SEAL (2E9)

€ 6.00

5

1YU251210035
ref: 5
SILVER

PLATE, BRAKE SHOE

€ 52.00

6

9310934057
ref: 6

OIL SEAL(2JA)

€ 5.50

7

3EPW253500
ref: 7

BRAKE SHOE SET (NAS)

€ 16.50

8

2E92513300
ref: 8

SPRING, SHOE RETURN

€ 4.00

9

2T42513700
ref: 9

RING, STOP

€ 1.50

10

2E92513800
ref: 10

GEAR, METER

€ 15.50

11

2E92513500
ref: 11

GEAR, DRIVE (14T)

€ 14.50

12

90201064L6
ref: 12

WASHER,PLATE (2JA)

€ 6.00

13

3EP2515500
ref: 13

LEVER, CAMSHAFT 1

€ 73.50

14

25K2515100
ref: 14

CAMSHAFT

€ 14.50

15

9702105020
ref: 15

BOLT(3AL)

€ 1.50

16

9530305600
ref: 16

NUT HEXAGON(663)

€ 1.00

17

3L82513A00
ref: 17

INDICATOR

€ 1.50

18

9330620005
ref: 18

BRG,R-B 6200 30MM 32G KY

€ 19.00

19

2T42518500
ref: 19

RING 1

€ 8.00

20

94125107J4
ref: 20
INOUE

TIRE (2.50-10)(2EK)

€ 48.50

21

9422710219
ref: 21
YOKOHAMA

TUBE (2.75-10) (27V)

€ 21.50

22

9560110200
ref: 22

NUT, SELF-LOCKING(J17)

€ 10.00

23

54V2518100
ref: 23

AXLE, WHEEL

€ 6.00

24

9038710620
ref: 24

COLLAR (2E9)

€ 9.50

25

9321010096
ref: 25

O-RING (611)

€ 3.00

26

2E92513701
ref: 26

RING (STOP)

€ 1.50
