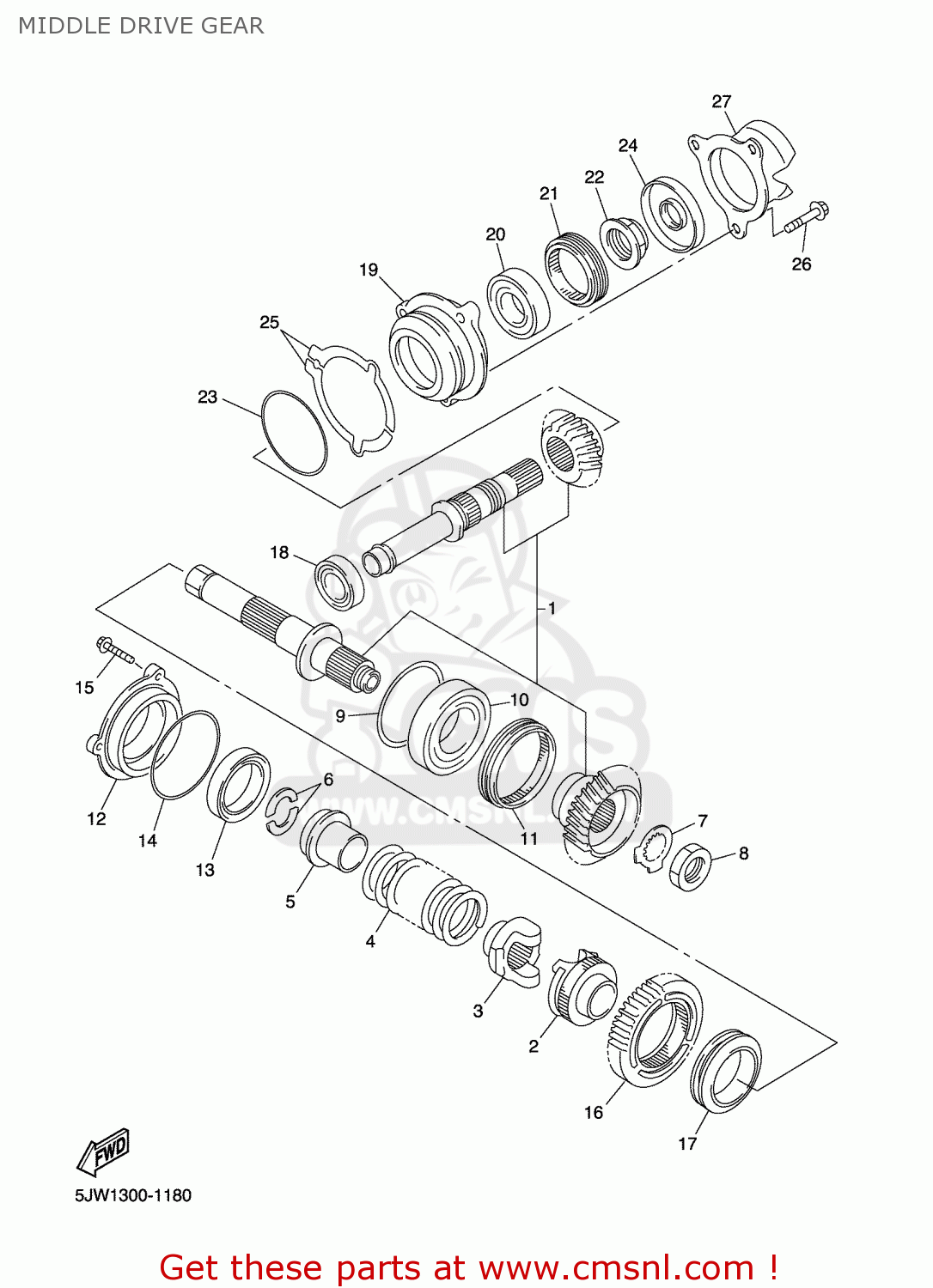

MIDDLE DRIVE GEAR

ref

pièce #

description

quantité

01

5JWW175100
ref: 01

MIDDLE GEAR COMP.

€ 540.50

02

5JW1752600
ref: 02

CAM, DRIVE

€ 209.00

03

5JW1752700
ref: 03

CAM, DRIVEN

€ 134.00

04

9050175638
ref: 04

SPRING, COMPRESSION (5A8)

€ 56.50

05

5JW1752400
ref: 05

HOLDER

€ 94.00

06

9020921281
ref: 06

WASHER(1FK)

€ 45.00

07

9021527003
ref: 07

WASHER, LOCK

€ 4.50

08

9017922002
ref: 08

NUT

€ 12.50

09

4X7175310015
ref: 09

SHIM, PINION

€ 5.00

09

4X7175310030
ref: 09

SHIM, PINION

€ 5.00

09

4X7175310050
ref: 09

SHIM, PINION

€ 5.00

10

9330620901
ref: 10

BRG,R-B 6209RSH2-C2 85MM 412G

€ 81.50

11

9017988336
ref: 11

NUT (4X7)

€ 28.50

12

5JW1752100
ref: 12

HOUSING, BEARING

€ 80.00

13

9330690901
ref: 13

BEARING

€ 46.00

14

9321084724
ref: 14

O-RING(4ES)

€ 5.00

15

9010906015
ref: 15

BOLT

€ 2.00

16

5JW1758300
ref: 16

GEAR, MIDDLE DRIVEN

€ 115.50

17

9038753001
ref: 17

COLLAR

€ 87.00

18

9330600519
ref: 18

BEARING(1FF)

€ 26.50

19

5JW1755100
ref: 19

HOUSING, BEARING

€ 79.50

20

9330620636
ref: 20

BEARING(1YW)

€ 58.00

21

9017968001
ref: 21

NUT

€ 28.50

22

9017928001
ref: 22

NUT

€ 26.00

23

9321076546
ref: 23

O-RING (722)

€ 9.50

24

9310225004
ref: 24

OIL SEAL

€ 19.00

25

5JW1753100
ref: 25

SHIM, PINION

€ 8.00

25

5JW1753110
ref: 25

SHIM, PINION

€ 8.00

25

5JW1753120
ref: 25

SHIM, PINION

€ 8.00

25

5JW1753130
ref: 25

SHIM, PINION

€ 8.00

25

5JW1753140
ref: 25

SHIM, PINION

€ 8.00

25

5JW1753150
ref: 25

SHIM, PINION

€ 8.00

26

9010508038
ref: 26

BOLT, WASHER BASED

€ 1.50

27

5JW1753800
ref: 27

CAP, HOUSING

€ 55.00

toutes les assemblages
