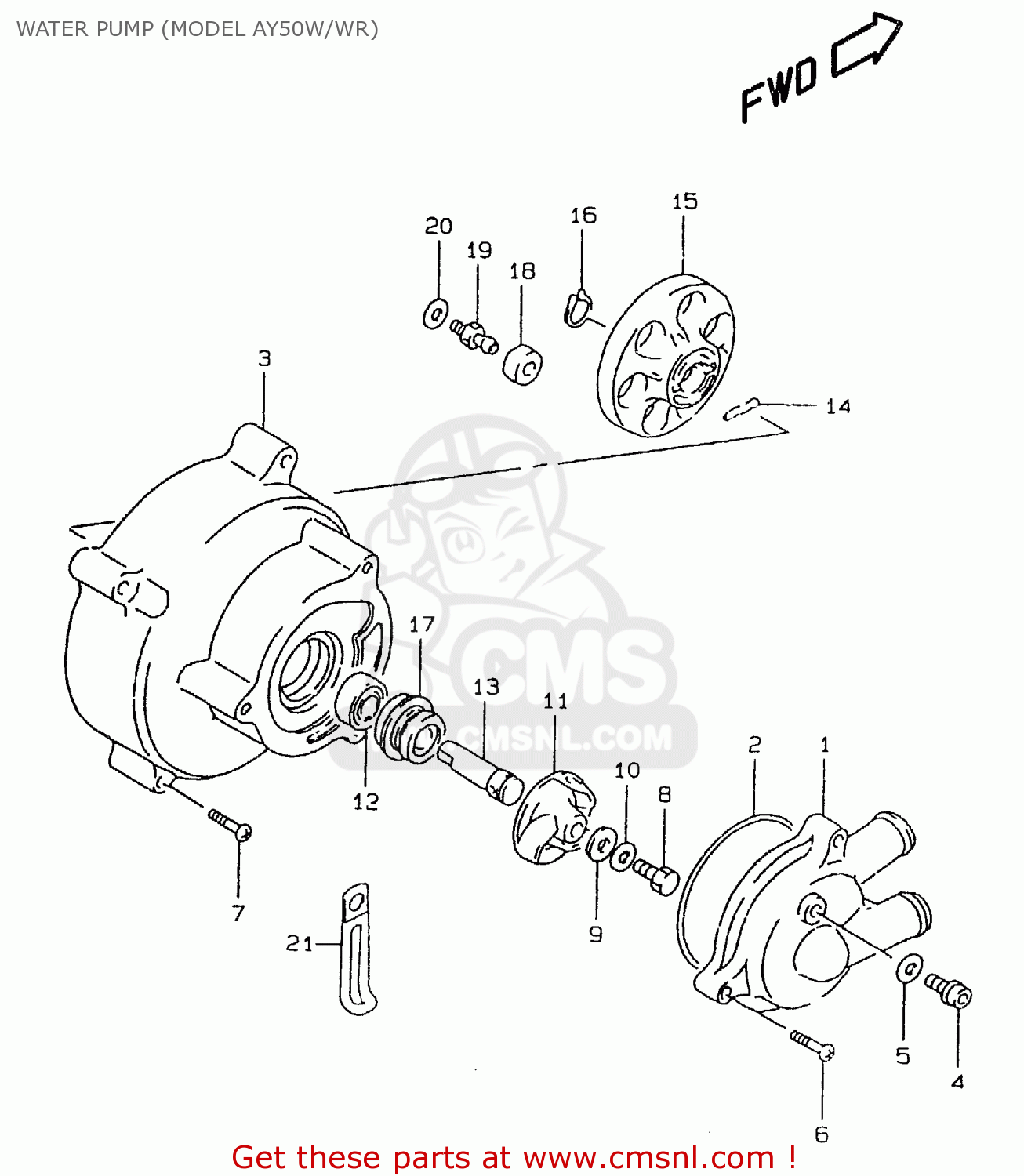

WATER PUMP (MODEL AY50W/WR)

ref

pièce #

description

quantité

1

1741135E00
ref: 1

CASE,W/P OUTER

€ 14.00

2

0928065003
ref: 2

O RING(D:2.1,ID:65)

€ 2.50

3

1741235E00
ref: 3

CASE,W/P INNER

€ 19.00

4

0936006007
ref: 4

UNION

€ 3.00

5

0916806004
ref: 5

GASKET(6.2X11X1).2 (NAS)

€ 1.50

6

0211206253
ref: 6

SCREW

€ 1.50

7

0211206353
ref: 7

SCREW

€ 2.00

8

0910006099
ref: 8

BOLT(6X13)

€ 1.50

9

0916806016
ref: 9

GASKET (NAS)

€ 2.50

10

0916406006
ref: 10

WASHER

€ 2.00

11

1749101C00
ref: 11

IMPELLER,WATER PUMP

€ 18.00

12

0815069007
ref: 12

BEARING

€ 9.50

13

1751135E00
ref: 13

SHAFT,W/PUMP

€ 25.00

14

0926102001
ref: 14

PIN(2.5X19.8)

€ 1.50

15

1752135E00
ref: 15

JOINT

€ 2.50

16

0833131126
ref: 16

CIRCLIP,12 MM

€ 1.50

17

1747002F00
ref: 17

SEAL,MECHANICAL

€ 18.00

18

1752335E00
ref: 18

CUSHION

€ 1.00

19

1752235E00
ref: 19

BOLT

€ 18.50

20

0832101063
ref: 20

LOCK WASHER

€ 1.50

21

0940406429EE3
ref: 21

CLAMP

€ 2.00

WATER PUMP (MODEL AY50W/WR)

toutes les assemblages
