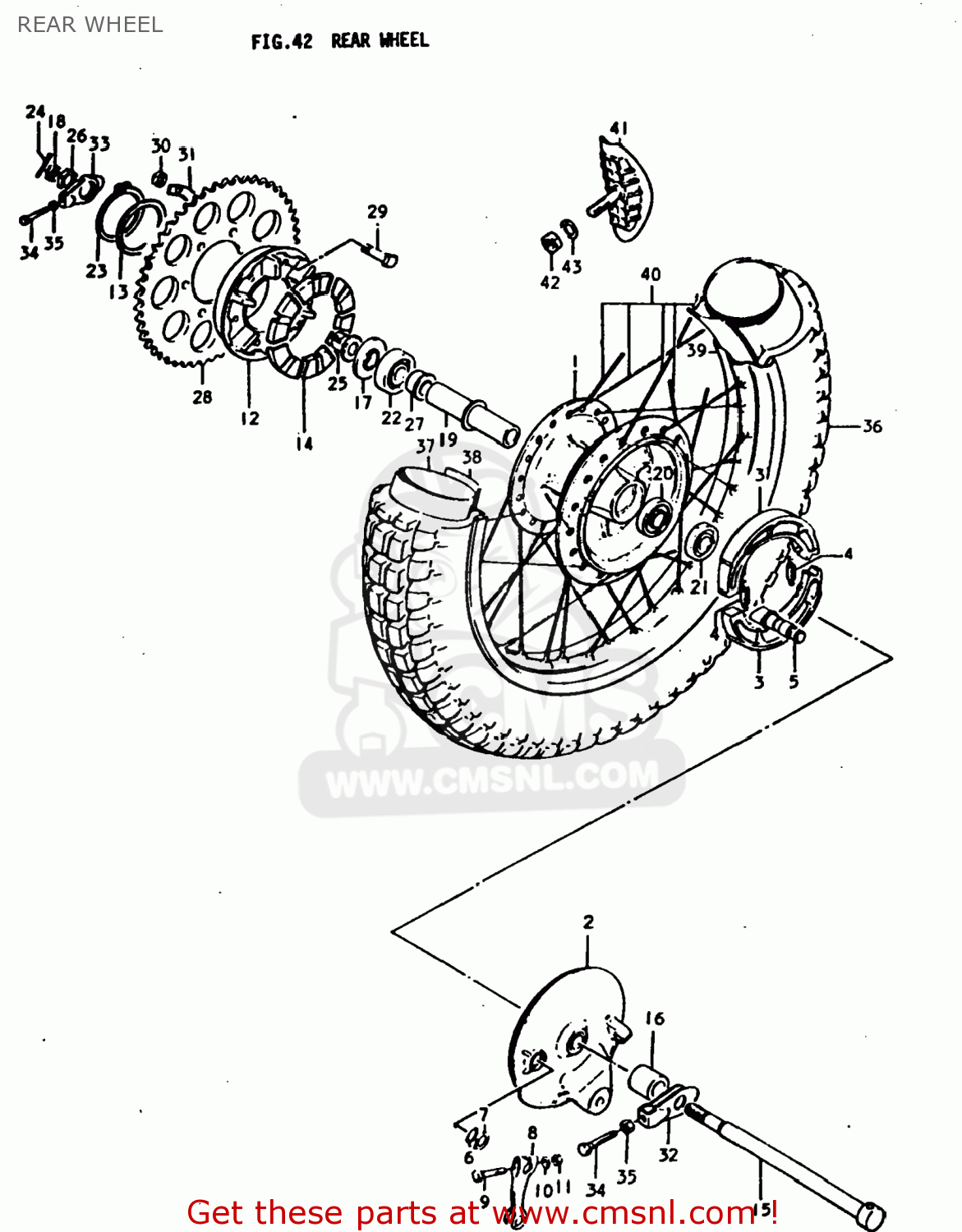

REAR WHEEL

ref

pièce #

description

quantité

1

6411016500
ref: 1

DRUM,REAR HUB

€ 295.00

2

6421016501
ref: 2

PANEL,REAR HUB

€ 49.50

3-1

5441008002
ref: 3-1
64400-02830

SHOE,BRAKE

€ 29.50

3-2

5441032400
ref: 3-2
64400-02830

SHOE,BRAKE (MCA)

€ 29.50

4

5542041100
ref: 4

SPRING

€ 4.50

5

5444008002
ref: 5
54440-08004

CAM,FRONT BRAKE

€ 17.50

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 1.50

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 3.00

8

6445130500
ref: 8
64451-30501

LEVER,REAR BRAKE CAM

€ 15.00

9

0110706408
ref: 9
01500-0640B

BOLT 6X40

€ 2.00

10

0832221068
ref: 10
08322-01067

WASHER

€ 1.50

11

0831011068
ref: 11
08310-00067

NUT

€ 1.50

12

6461016501
ref: 12
64610-30001

DRUM,REAR SPROCKET MOUNT

€ 100.50

13

0916062001
ref: 13

WASHER(62.5X77X1.6)

€ 4.00

14

6465016520
ref: 14

ABSORBER,RR WHEEL HUB SHOCK

€ 26.50

15

6471116500
ref: 15

AXLE,REAR

€ 41.00

16

0918015014
ref: 16

SPACER (15.2X26X20)

€ 8.50

17

6475030000
ref: 17

SPACER,REAR AXLE,RIGHT

€ 8.50

18

0914114001
ref: 18

NUT

€ 4.50

19

6473030000
ref: 19

SPACER,REAR HUB BEARING

€ 10.50

20

0811363020
ref: 20
09262-15027

BEARING, RH

€ 17.50

21

0928426001
ref: 21

OIL SEAL

€ 5.50

22

0812363047
ref: 22

BEARING

€ 14.00

23

0833111628
ref: 23

CIRCLIP

€ 5.50

24

0411130408
ref: 24
04111-3040A

PIN 30X40

€ 1.00

25

6479130000
ref: 25

SPACER,REAR AXLE,LEFT

€ 17.00

26

0914024002
ref: 26
09140-24010

NUT

€ 7.50

27

6473330000
ref: 27

SPACER,REAR HUB BEARING

€ 16.50

28-1

6451130700
ref: 28-1
64511-30701

SPROCKET,REAR

€ 71.50

28-2

6451130000
ref: 28-2

SPROCKET,RR

€ 93.00

28-3

6451130710
ref: 28-3

SPROCKET,REAR

€ 82.00

29

0910508001
ref: 29

BOLT(8X33.5)

€ 2.50

30

0831012088
ref: 30
08310-00087

NUT

€ 1.50

31

0916908011
ref: 31

WASHER

€ 2.50

32-1

6141030001
ref: 32-1
61410-30003

ADJUSTER,CHAIN

€ 18.50

32-2

6141030002
ref: 32-2
61410-30003

ADJUSTER,CHAIN

€ 18.50

33

6142030002
ref: 33

ADJUSTER,CHAIN,L

€ 13.50

34

0910408006
ref: 34
09104-08034

BOLT

€ 3.00

35

0831012088
ref: 35
08310-00087

NUT

€ 1.50

36

6510030600
ref: 36

TIRE

€ 60.00

37

6520015011
ref: 37
65200-49015

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

38

6526115010
ref: 38
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.00

39-1

6531130600
ref: 39-1

RIM,REAR WHEEL

€ 55.50

39-2

6531130020
ref: 39-2

RIM,WHEEL

€ 108.50

40

6530016828
ref: 40
65320-16520

SPOKE SET,REAR

€ 54.00

41

6527030001
ref: 41
65270-43D00

STOPPER,BEAD

€ 27.00

42

0831012088
ref: 42
08310-00087

NUT

€ 1.50

43

0832211088
ref: 43
08322-01087

WASHER

€ 1.50
